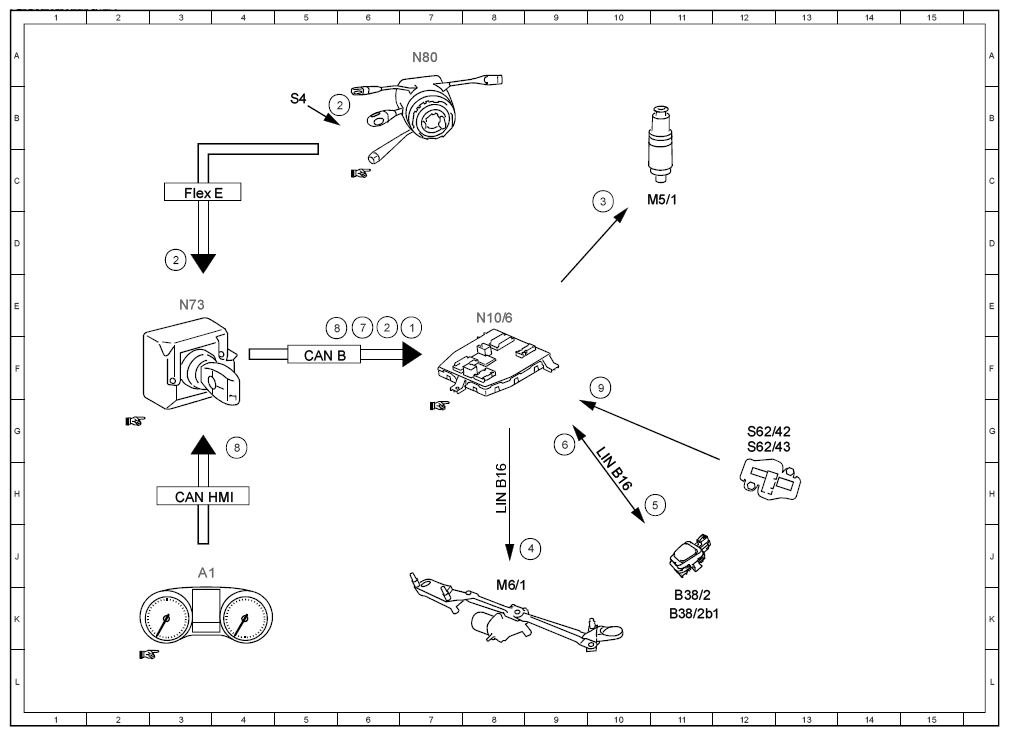

| 1 |
Circuit 15, status |
7E |
| 2 |
Combination switch, status |
6E |
| 2 |
Combination switch, status |
3D |
| 2 |
Combination switch, status |
5B |
| 3 |
Windshield washer system pump, actuation |
10C |
| 4 |
Wiper motor, actuation |
9J |
| 5 |
Re-wipe, status |
11H |
| 6 |
Rain/light sensor, status |
9G |
| 7 |
Circuit 50, status |
6E |
| 8 |
Vehicle speed, signal |
5E |
| 8 |
Vehicle speed, signal |
4G |
| 9 |
Engine hood contact switch, status |
10F |
| A1 |
Instrument cluster |
3J |
| B38/2 |
Rain/light sensor with additional functions |
11K |
| B38/2b1 |
Rain sensor |
11K |
| CAN B |
Interior CAN |
5F |
| CAN HMI |
User interface CAN |
3H |
| Flex E |
Chassis FlexRay |
3C |
| LIN B16 |
Rain and light sensor LIN |
8H |
| LIN B16 |
Rain and light sensor LIN |
10H |
| M5/1 |
Windshield washer system pump |
10C |
| M6/1 |
Wiper motor |
8K |
| N10/6 |
Front SAM control unit |
8E |
| N73 |
Electronic ignition switch control unit |
3E |
| N80 |
Steering column module control unit |
7A |
| S4 |
Combination switch |
5B |
| S62/42 |
Right engine hood contact switch |
12G |
| S62/43 |
Left engine hood contact switch |
12G |
