| 1 |
Mirror taximeter button 1, status |
4E |
| 2 |
Front passenger seat occupied recognition, status |
6D |
| 2 |
Front passenger seat occupied recognition, status |
15E |
| 3 |
Vehicle speed, signal |
6D |
| 3 |
Vehicle speed, signal |
13E |
| 4 |
Roof sign lamp, actuation |
5B |
| 5 |
Wheel speed, signal |
6D |
| 5 |
Wheel speed, signal |
5G |
| 5 |
Wheel speed, signal |
15G |
| 5 |
Wheel speed, signal |
12K |
| 6 |
Interior lamp, request |
16C |
| 7 |
Card reader and printer, request |
9H |
| A1 |
Instrument cluster |
9E |
| A50/1 |
Mirror taximeter |
4H |
| A50/2 |
Card reader and printer |
9H |
| A67 |
Inside rearview mirror |
3H |
| A67s4 |
Mirror taximeter button 1 |
3J |
| CAN B |
Interior CAN |
15D |
| CAN B |
Interior CAN |
12D |
| CAN B |
Interior CAN |
12D |
| CAN HMI |
User interface CAN |
19F |
| CAN HMI |
User interface CAN |
11F |
| CAN K |
Multifunction CAN |
4F |
| CAN K |
Multifunction CAN |
7H |

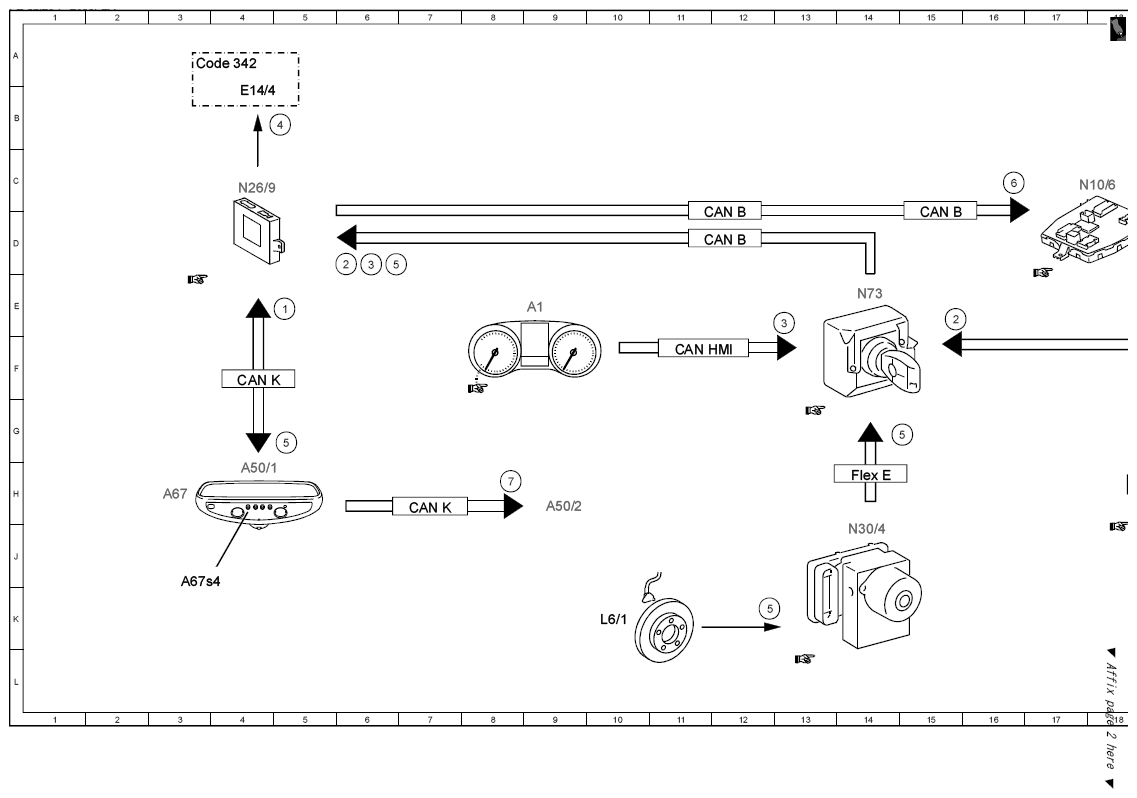

| Code 342 |
CONNECTION FOR TAXI ROOF SIGN |
3A |
| E14/4 |
Roof sign lamp |
4B |
| Flex E |
Chassis FlexRay |
14H |
| L6/1 |
Left front axle rpm sensor |
10K |
| N10/6 |
Front SAM control unit |
18C |
| N2/10 |
Supplemental restraint system control unit |
19G |
| N26/9 |
Special-purpose vehicle multifunction control unit |
4C |
| N30/4 |
Electronic Stability Program control unit |
14J |
| N73 |
Electronic ignition switch control unit |
14E |
