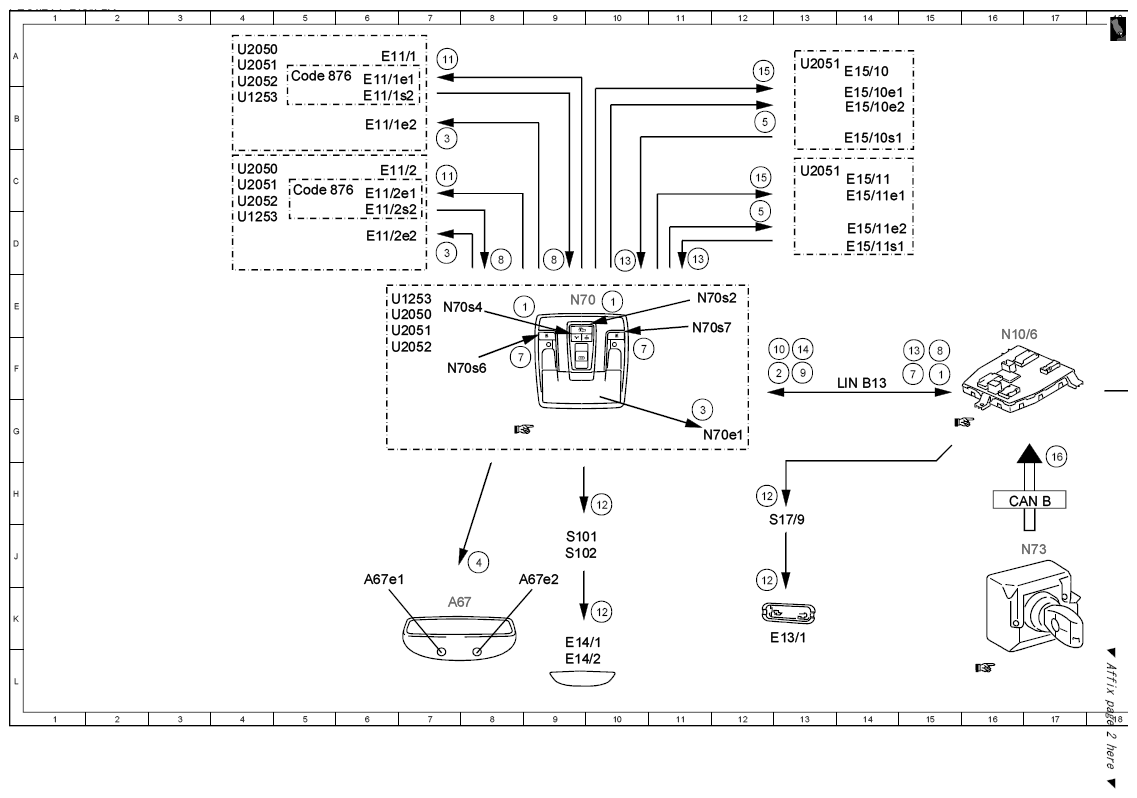

| 1 |
Dome lamp button, status |
15F |
| 1 |
Dome lamp button, status |
8E |
| 1 |
Dome lamp button, status |
10E |
| 10 |
Rear passenger compartment reading lamp, request |
12F |
| 11 |
Rear reading lamp, actuation |
7A |
| 11 |
Rear reading lamp, actuation |
7C |
| 12 |
Power supply, status ON |
12H |
| 12 |
Power supply, status ON |
10H |
| 12 |
Power supply, status ON |
12J |
| 12 |
Power supply, status ON |
10K |
| 13 |
Rear passenger compartment vanity mirror illumination switch, status |
15E |
| 13 |
Rear passenger compartment vanity mirror illumination switch, status |
11D |
| 13 |
Rear passenger compartment vanity mirror illumination switch, status |
10D |
| 14 |
Rear passenger compartment vanity mirror illumination, request |
13F |
| 15 |
Rear passenger compartment vanity mirror illumination, actuation |
12A |
| 15 |
Rear passenger compartment vanity mirror illumination, actuation |
12C |
| 16 |
Circuit 15, status |
17G |
| 2 |
Interior lamp, request |
13F |
| 3 |
Interior lamp, actuation |
11G |
| 3 |
Interior lamp, actuation |
7D |
| 3 |
Interior lamp, actuation |
7B |
| 4 |
Front reading lamp, actuation |
8J |
| 5 |
Rear passenger compartment vanity mirror dome lamp, actuation |
12B |
| 5 |
Rear passenger compartment vanity mirror dome lamp, actuation |
12C |
| 6 |
Footwell lamp, actuation |
21H |
| 7 |
Front reading lamp button, status |
15F |
| 7 |
Front reading lamp button, status |
10E |
| 7 |
Front reading lamp button, status |
8E |
| 8 |
Rear passenger compartment reading lamp button, status |
15F |
| 8 |
Rear passenger compartment reading lamp button, status |
8D |
| 8 |
Rear passenger compartment reading lamp button, status |
9D |
| 9 |
Front reading lamp, request |
13F |
| A67 |
Inside rearview mirror |
7K |
| A67e1 |
Left reading lamp |
6J |
| A67e2 |
Right reading lamp |
8J |
| CAN B |
Interior CAN |
16H |
| Code 876 |
Interior lights package |
5A |
| Code 876 |
Interior lights package |
19H |
| Code 876 |
Interior lights package |
5C |
| E11/1 |
Left rear dome lamp |
6A |
| E11/1e1 |
Left rear reading lamp |
6A |
| E11/1e2 |
Left rear interior lamp |
6B |
| E11/1s2 |
Left rear reading lamp button |
6B |
| E11/2 |
Right rear dome lamp |
6C |
| E11/2e1 |
Right rear reading lamp |
6C |
| E11/2e2 |
Right rear interior lamp |
6D |
| E11/2s2 |
Right rear reading lamp button |
6D |
| E13/1 |
Glove box lamp |
13K |
| E14/1 |
Left sun visor mirror lamp |
9K |
| E14/2 |
Right sun visor mirror lamp |
9L |
| E15/10 |
Left rear vanity mirror unit |
14A |
| E15/10e1 |
Left rear vanity mirror illumination |
14B |
| E15/10e2 |
Left rear vanity mirror dome lamp |
14B |
| E15/10s1 |
Left rear vanity mirror illumination switch |
14B |
| E15/11 |
Right rear vanity mirror unit |
14C |
| E15/11e1 |
Right rear vanity mirror illumination |
14C |
| E15/11e2 |
Right rear vanity mirror dome lamp |
14D |
| E15/11s1 |
Right rear vanity mirror illumination switch |
14D |
| E17/15 |
Right front footwell lamp |
20J |
| E17/16 |
Left front footwell lamp |
20K |
| E17/17 |
Left rear footwell lamp |
20K |
| E17/18 |
Right rear footwell lamp |
20K |
| LIN B13 |
Roof LIN |
14F |
| N10/6 |
Front SAM control unit |
16F |
| N70 |
Overhead control panel control unit |
9E |
| N70e1 |
Front dome lamp |
12G |
| N70s2 |
Rear dome lamp button |
11E |
| N70s4 |
Front dome lamp button |
7E |
| N70s6 |
Left front reading lamp button |
7F |
| N70s7 |
Right front reading lamp button |
11E |
| N73 |
Electronic ignition switch control unit |
16J |
| S101 |
Left front mirror lamp switch |
9J |
| S102 |
Right front mirror lamp switch |
9J |
| S17/9 |
Glove box lamp switch |
13J |
| U1253 |
Valid for model 253 |
4B |
| U1253 |
Valid for model 253 |
4D |
| U1253 |
Valid for model 253 |
6E |
| U2050 |
Valid for model 205.0 |
4A |
| U2050 |
Valid for model 205.0 |
4C |
| U2050 |
Valid for model 205.0 |
6E |
| U2051 |
Valid for model 205.1 |
13C |
| U2051 |
Valid for model 205.1 |
13A |
| U2051 |
Valid for model 205.1 |
4A |
| U2051 |
Valid for model 205.1 |
4C |
| U2051 |
Valid for model 205.1 |
6E |
| U2052 |
Valid for model 205.2 |
4A |
| U2052 |
Valid for model 205.2 |
4C |
| U2052 |
Valid for model 205.2 |
6F |
