| 1 |
Circuit 15, status |
10H |
| 10 |
Vehicle speed, signal |
5J |
| 10 |
Vehicle speed, signal |
8H |
| 11 |
Brake light dark phase, signal |
18J |
| 12 |
Flashing brake lights, actuation |
22J |
| 12 |
Flashing brake lights, actuation |
22C |
| 12 |
Flashing brake lights, actuation |
21B |
| 2 |
Brake light switch, status |
12D |
| 3 |
Pedal angle sensor, signal |
12E |
| 4 |
Service brake, status |
7H |
| 4 |
Service brake, status |
9H |
| 4 |
Service brake, status |
18J |
| 5 |
Circuit 54, status |
18H |
| 5 |
Circuit 54, status |
10G |
| 6 |
Brake lights, actuation |
22H |
| 6 |
Brake lights, actuation |
22C |
| 6 |
Brake lights, actuation |
21B |
| 7 |
Electric parking brake switch, status |
9D |
| 7 |
Electric parking brake switch, status |
2F |
| 8 |
Brake lights, request |
9H |
| 8 |
Brake lights, request |
18J |
| 8 |
Brake lights, request |
7H |
| 8 |
Brake lights, request |
5H |
| 9 |
Emergency stop, signal |
7G |
| 9 |
Emergency stop, signal |
8H |
| 9 |
Emergency stop, signal |
17J |
| A1 |
Instrument cluster |
2K |

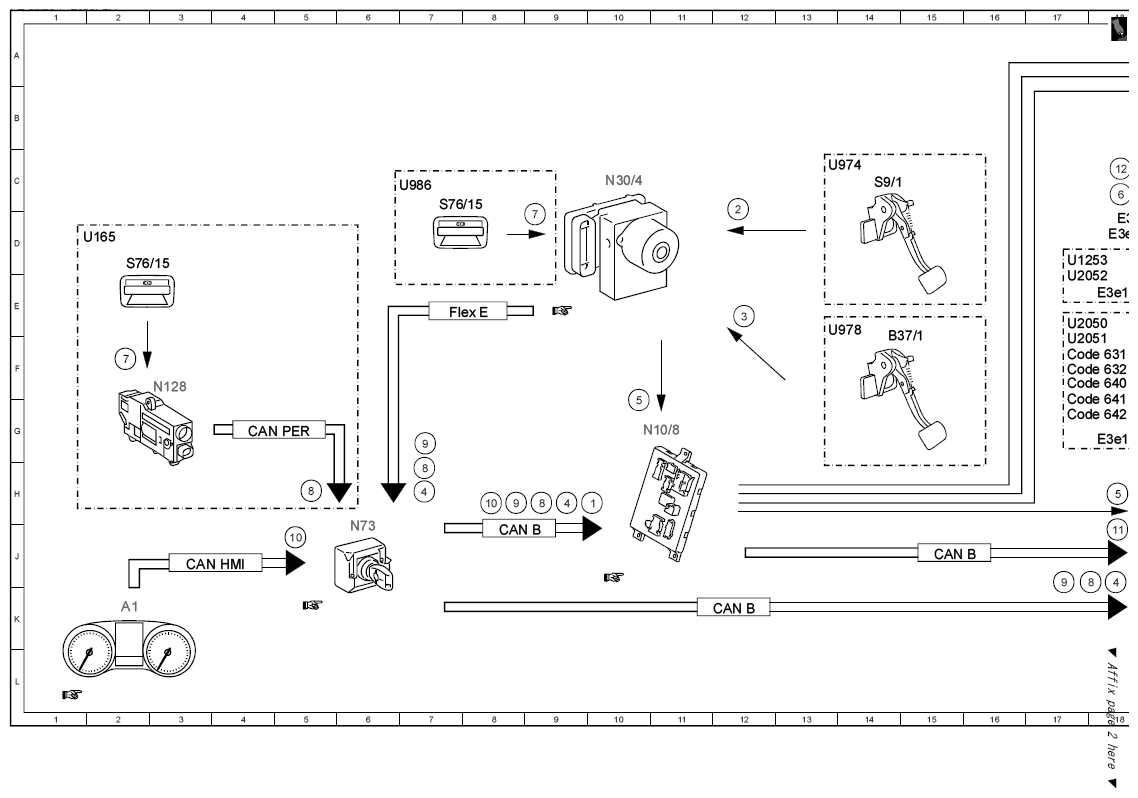

| B37/1 |
Pedal angle sensor |
14F |
| CAN B |
Interior CAN |
12K |
| CAN B |
Interior CAN |
8J |
| CAN B |
Interior CAN |
15J |
| CAN HMI |
User interface CAN |
3J |
| CAN PER |
Peripherals CAN |
4G |
| Code 550 |
Trailer hitch |
19H |
| Code 631 |
Static LED headlamp, left-hand traffic |
17F |
| Code 631 |
Static LED headlamp, left-hand traffic |
22F |
| Code 632 |
Static LED headlamp, right-hand traffic |
17F |
| Code 632 |
Static LED headlamp, right-hand traffic |
22F |
| Code 640 |
High Performance LED |
17F |
| Code 640 |
High Performance LED |
22F |
| Code 641 |
DYNAMIC LED HEADLAMPS, LEFT-HAND TRAFFIC |
17G |
| Code 641 |
DYNAMIC LED HEADLAMPS, LEFT-HAND TRAFFIC |
22G |
| Code 642 |
DYNAMIC LED HEADLAMPS, RIGHT-HAND TRAFFIC |
17G |
| Code 642 |
DYNAMIC LED HEADLAMPS, RIGHT-HAND TRAFFIC |
22G |

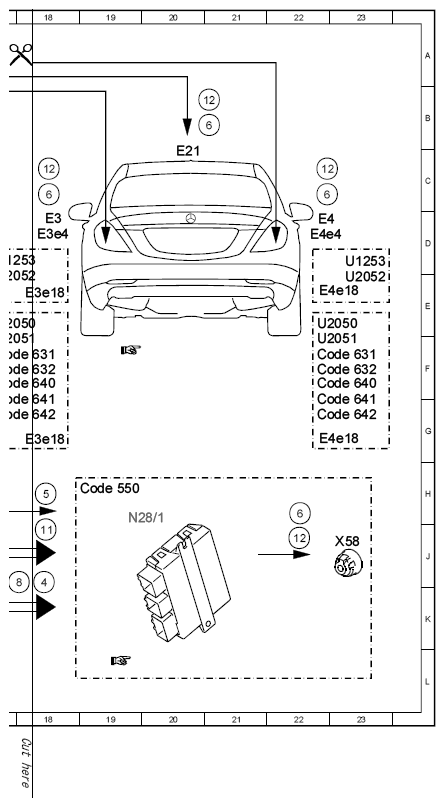

| E21 |
Center stop lamp |
20C |
| E3 |
Left rear lamp unit |
18D |
| E3e18 |
Left taillamp |
18E |
| E3e18 |
Left taillamp |
18G |
| E3e4 |
Left stop lamp |
18D |
| E4 |
Right rear lamp unit |
22D |
| E4e18 |
Right taillamp |
22E |
| E4e18 |
Right taillamp |
22G |
| E4e4 |
Right stop lamp |
22D |
| Flex E |
Chassis FlexRay |
7E |
| N10/8 |
Rear SAM control unit |
11G |
| N128 |
Electric parking brake control unit |
3F |
| N28/1 |
Trailer recognition control unit |
19H |
| N30/4 |
Electronic Stability Program control unit |
10C |
| N73 |
Electronic ignition switch control unit |
6J |
| S76/15 |
Electric parking brake switch |
7C |
| S76/15 |
Electric parking brake switch |
2D |
| S9/1 |
Stop lamp switch |
14C |
| U1253 |
Valid for model 253 |
17D |
| U1253 |
Valid for model 253 |
23D |
| U165 |
Valid for AMG |
1D |
| U2050 |
Valid for model 205.0 |
17E |
| U2050 |
Valid for model 205.0 |
22E |
| U2051 |
Valid for model 205.1 |
17F |
| U2051 |
Valid for model 205.1 |
22F |
| U2052 |
Valid for model 205.2 |
17E |
| U2052 |
Valid for model 205.2 |
23E |
| U974 |
Not valid for hybrid drive |
13C |
| U978 |
Valid for hybrid drive |
13E |
| U986 |
Not valid for AMG |
6C |
| X58 |
Trailer socket |
23J |
