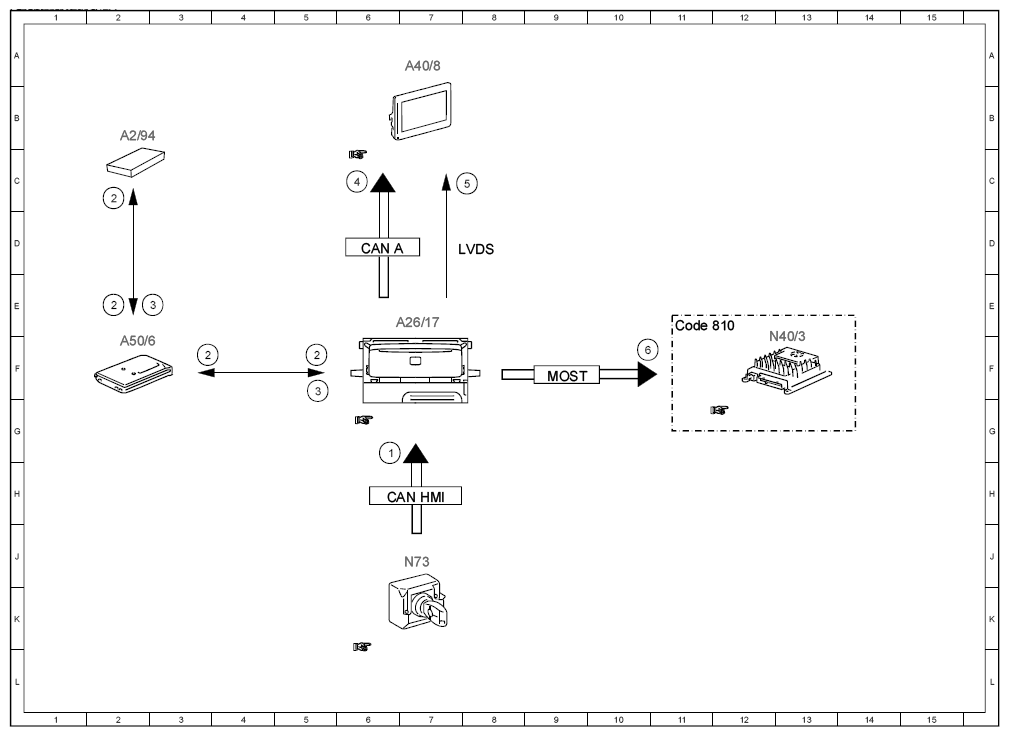

| 1 |
Circuit 15, status |
6G |
| 2 |
Electronic Toll Collection (ETC), signal |
5F |
| 2 |
Electronic Toll Collection (ETC), signal |
3F |
| 2 |
Electronic Toll Collection (ETC), signal |
2E |
| 2 |
Electronic Toll Collection (ETC), signal |
2C |
| 3 |
Vehicle Information and Communication System (VICS), signal |
5F |
| 3 |
Vehicle Information and Communication System (VICS), signal |
3E |
| 4 |
Switch-on request, signal |
6C |
| 5 |
Audio/COMAND display, actuation |
8C |
| 6 |
Voice output, signal |
10F |
| A2/94 |
DSRC antenna |
2B |
| A26/17 |
Head unit |
7E |
| A40/8 |
Audio/COMAND display |
7A |
| A50/6 |
Dedicated Short-Range Communications control unit |
2F |
| CAN A |
Telematics CAN |
6D |
| CAN HMI |
User interface CAN |
7H |
| Code 810 |
Sound system |
11E |
| LVDS |
Low voltage differential signal |
8D |
| MOST |
Media Oriented System Transport |
9F |
| N40/3 |
Sound system amplifier control unit |
13F |
| N73 |
Electronic ignition switch control unit |
7J |
