Electrical function diagram for manual or automatic emergency call, function - PE82.95-P-2066-97FBC

Code: Designation: Position:
1 Circuit 15R, status 36G
1 Circuit 15R, status 27F
10 Voice input, signal 5D
11 Voice output, signal 38E
11 Voice output, signal 36H
12 Steering wheel angle sensor, signal 24J
12 Steering wheel angle sensor, signal 26F
12 Steering wheel angle sensor, signal 33G
13 Manual emergency call, signal 31C
13 Manual emergency call, signal 28E
13 Manual emergency call, signal 34G
14 Central locking emergency opening, signal 33G
14 Central locking emergency opening, signal 26D
15 GPS, signal 38H
15 GPS, signal 8G
16 Telephone, signal 41G
16 Telephone, signal 43E
16 Telephone, signal 28K
2 Readiness, signal 8E
2 Readiness, signal 26D
2 Readiness, signal 36G
3 Crash, signal 8E
3 Crash, signal 26D
3 Crash, signal 35G
4 Yaw rate, signal 25F
4 Yaw rate, signal 35G
5 Audio/COMAND display, message 6C
6 Multifunction steering wheel button group, signal 22H
6 Multifunction steering wheel button group, signal 24H
6 Multifunction steering wheel button group, signal 25F
6 Multifunction steering wheel button group, signal 35G
7 Operation, signal 7G
7 Operation, signal 5G
7 Operation, signal 7K
8 Wheel speed, signal 24F
8 Wheel speed, signal 34G
9 Mute function, signal 8F
9 Mute function, signal 41C
A105 Touchpad 3J
A2/125 Communications module/stationary heater antenna splitter 42E
A2/129 Communications module/stationary heater antenna 45E
A2/23 GPS antenna 31K
A2/23 GPS antenna 38K
A26/17 Head unit 5E
A40/8 Audio/COMAND display 5B
A40/9 Audio/COMAND control panel 6J
A67b1 Hands-free system microphone 3B
CAN A Telematics CAN 6H
CAN A Telematics CAN 5H
CAN B Interior CAN 28F
CAN D Diagnostic CAN 29G
CAN HMI User interface CAN 20E
CAN HMI User interface CAN 26C
CAN HMI User interface CAN 12E
Code 425 6-speed manual transmission 10G
Code 427 7G-TRONIC PLUS automatic transmission 12G
Code 448 Touchpad 1K
Code 522 Audio 20 radio 1J
Code 531 COMAND APS 1J
Code 810 Sound system 41B
Flex E Chassis FlexRay 22F
Flex E Chassis FlexRay 26G
H4/27 Center instrument panel speaker 37D
LIN A3 LCP LIN 8K
LIN B13 Roof LIN 31C
LIN E1 Steering LIN 23H
LVDS Low voltage differential signal 6D
N10/6 Front SAM control unit 29C
N112/1 Telematics services communication module 38F
N135 Steering wheel electronics 22H
N2/10 Supplemental restraint system control unit 26A
N30/4 Electronic Stability Program control unit 21E
N40/3 Sound system amplifier control unit 43C
N49 Steering wheel angle sensor 17H
N70 Overhead control panel control unit 34B
N70s11 SOS button 35B
N70s12 Breakdown assistance button 33A
N70s13 MB-Info button 34A
N72/4 Left lower control panel 12H
N72/4s7 Volume control button 10H
N72/4s8 "ON" button 10J
N72/5 Right lower control panel 13H
N72/5s1 Volume control button 14H
N72/5s2 "ON" button 14J
N73 Electronic ignition switch control unit 26E
N80 Steering column module control unit 26H
S111 Right multifunction steering wheel button group 21H
S111s3 Accept/terminate phone call button 21H

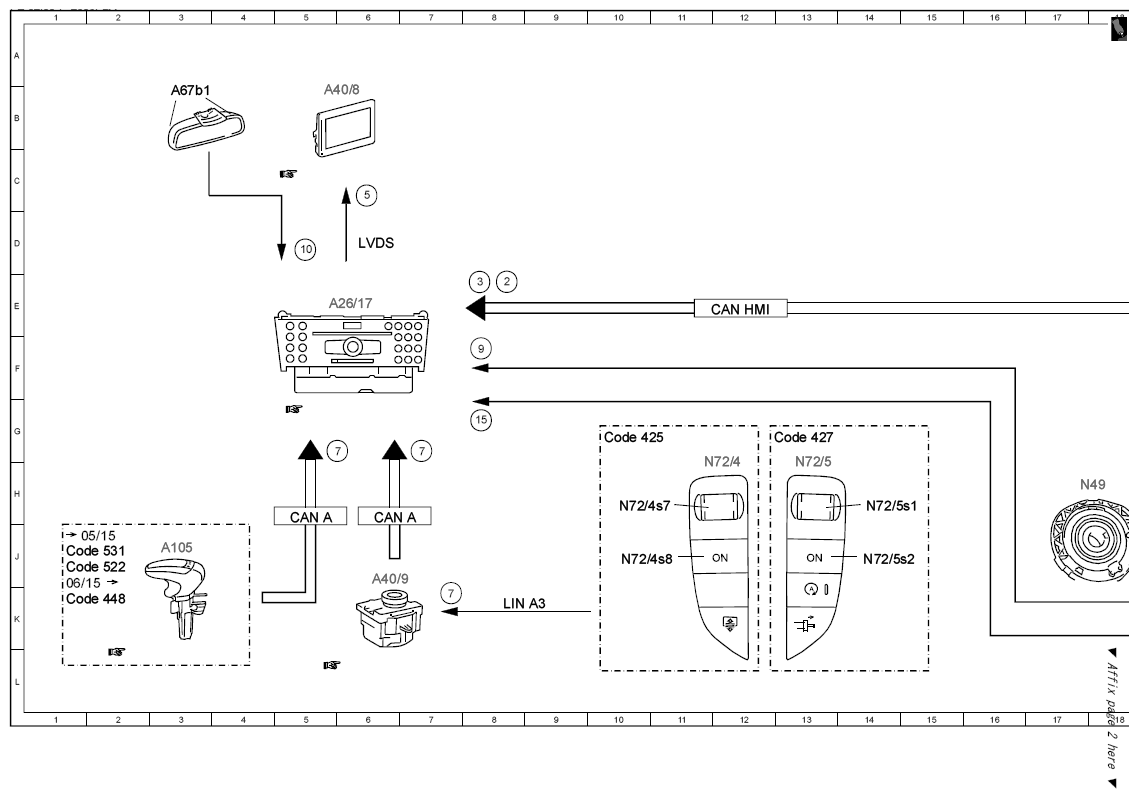

Fig 1: Manual And Automatic Emergency Call - Electrical Function Diagram (1 Of 3)
G10134805Courtesy of MERCEDES-BENZ USA

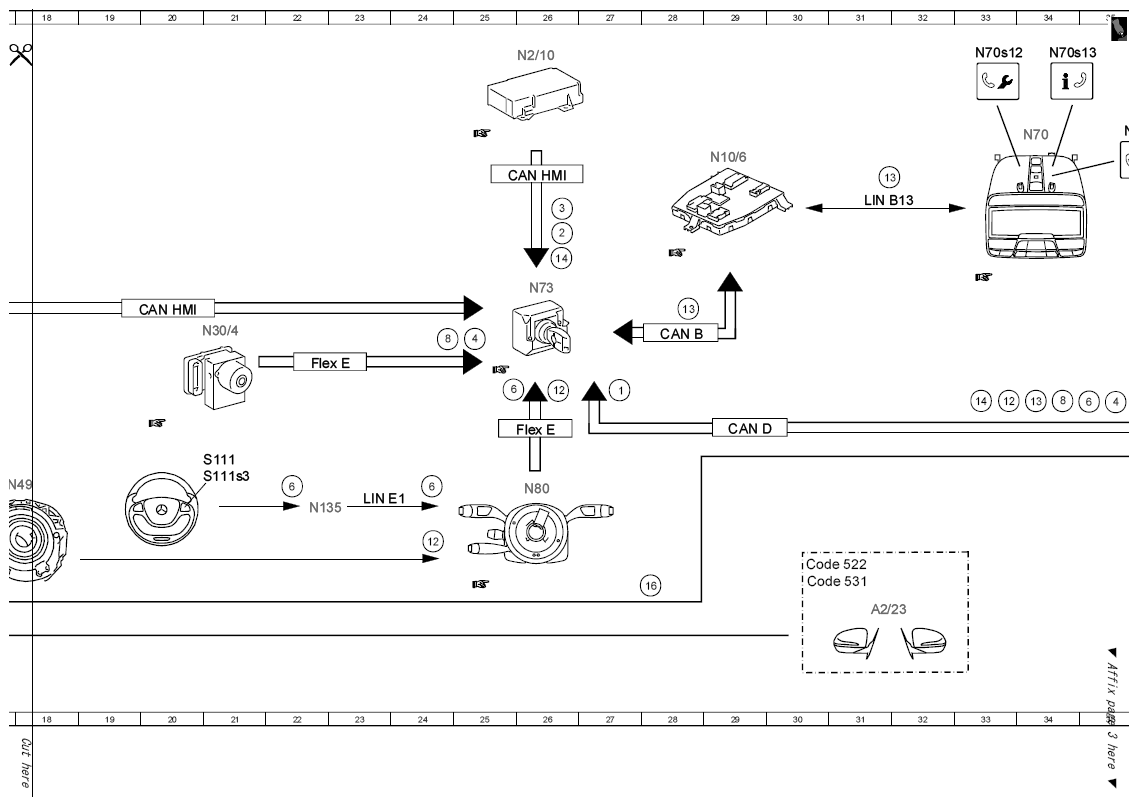

Fig 2: Manual And Automatic Emergency Call - Electrical Function Diagram (2 Of 3)
G10134806Courtesy of MERCEDES-BENZ USA

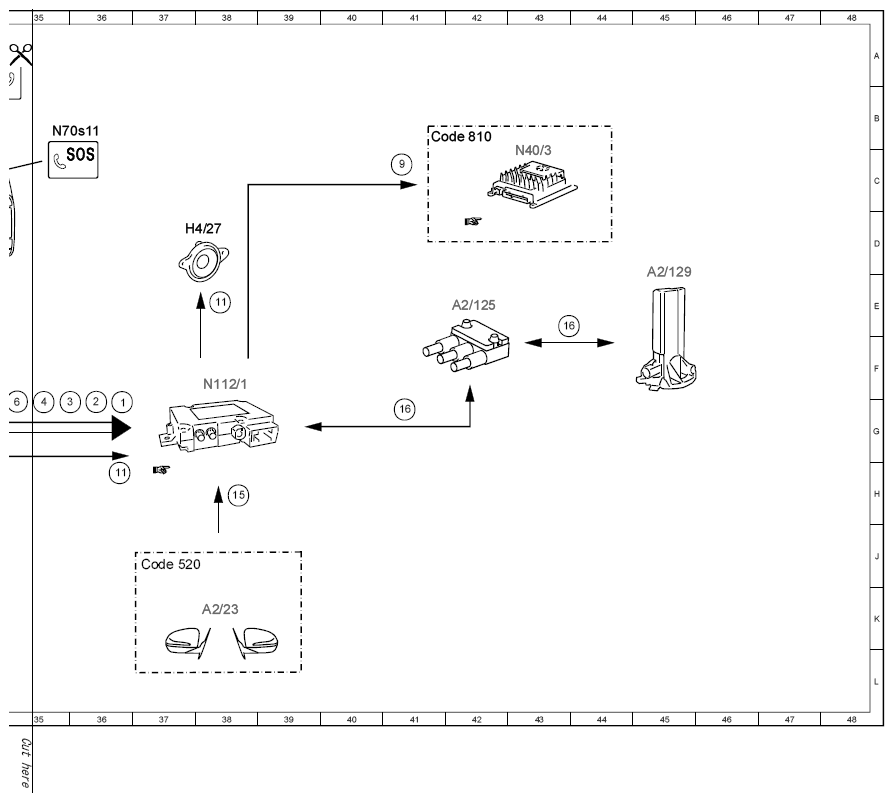

Fig 3: Manual And Automatic Emergency Call - Electrical Function Diagram (3 Of 3)
G10134807Courtesy of MERCEDES-BENZ USA
