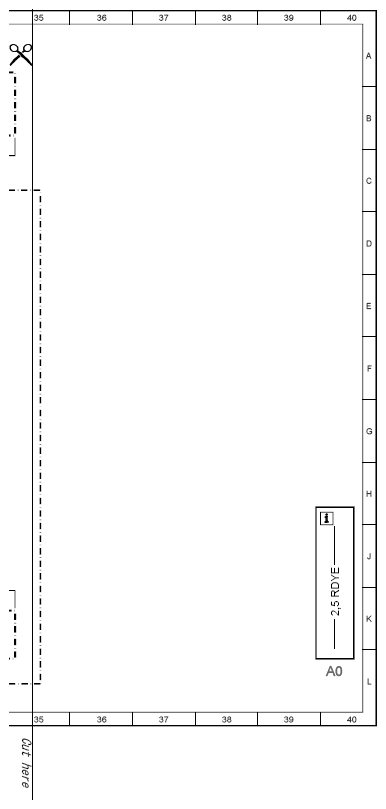

| A0 |
Use of wiring diagrams |
40L |
| A105s1 |
"Back" button |
4G |
| A105s2 |
Background audio button |
5G |
| A105s3 |
Home and Favorites button |
5G |

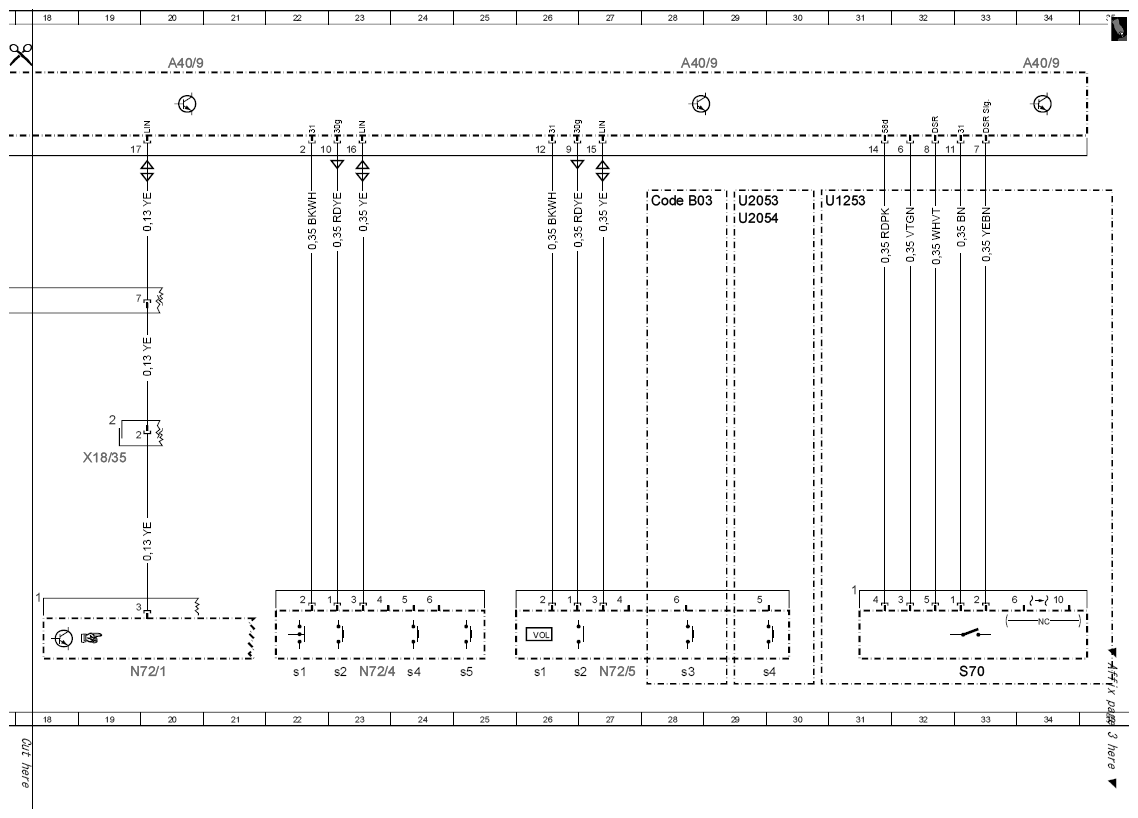

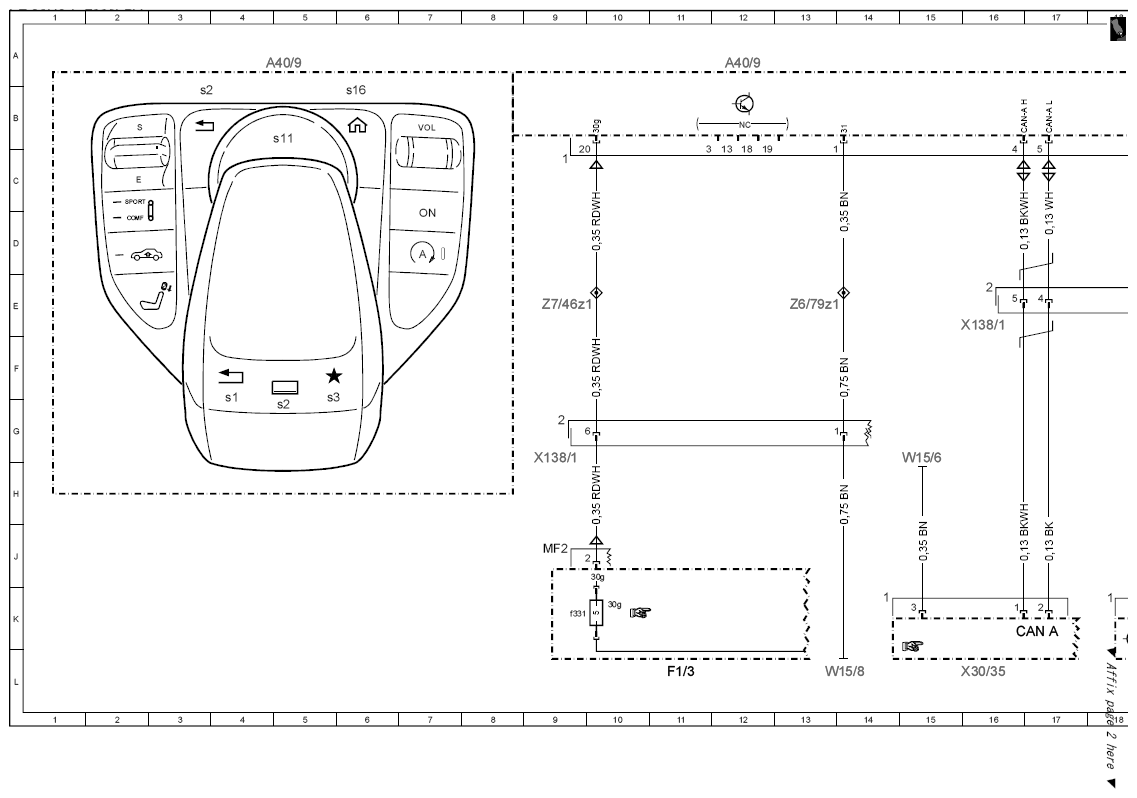

| A40/9 |
Audio/COMAND control panel |
5A |
| A40/9 |
Audio/COMAND control panel |
12A |
| A40/9 |
Audio/COMAND control panel |
28A |
| A40/9 |
Audio/COMAND control panel |
20A |
| A40/9 |
Audio/COMAND control panel |
34A |
| A40/9s11 |
Audio/COMAND controller |
5B |
| A40/9s16 |
Home and Favorites button |
6B |
| A40/9s2 |
"Back" button |
3B |
| CAN A |
Telematics CAN |
17K |
| Code B03 |
ECO start/stop function |
28C |
| F1/3 |
Right A-pillar fuse box |
11L |
| F1/3f331 |
Fuse 331 |
9K |
| N72/1 |
Upper control panel control unit |
19L |
| N72/4 |
Left lower control panel |
23L |
| N72/4s1 |
AGILITY SELECT switch |
22L |
| N72/4s2 |
Vehicle level button |
23L |
| N72/4s4 |
Rear window roller sun blind button |
24L |
| N72/4s5 |
Parking system button |
25L |
| N72/5 |
Right lower control panel |
27L |
| N72/5s1 |
Volume control button |
26L |
| N72/5s2 |
"ON" button |
26L |
| N72/5s3 |
ECO start/stop function button |
28L |
| N72/5s4 |
Belt extender button |
29L |
| S70 |
Off-road operating panel |
33L |
| U1253 |
Valid for model 253 |
30C |
| U2053 |
Valid for model 205.3 |
29C |
| U2054 |
Valid for model 205.4 |
29D |
| W15/6 |
Left front footwell ground point (CAN) |
15H |
| W15/8 |
Right front footwell ground point (CAN) |
13L |
| X138/1 |
Front center console electrical connector |
9H |
| X138/1 |
Front center console electrical connector |
16E |
| X18/35 |
Cockpit wiring harness and frame floor assembly electrical connector |
19H |
| X30/35 |
Telematics CAN (CAN A) potential distributor electrical connector |
16L |
| Z6/79z1 |
Circuit 31 connector sleeve |
13E |
| Z7/46z1 |
Circuit 30g connector sleeve |
9E |
