Remove/install license plate lamps - AR82.10-P-5161LW
MODEL 205.0/1
| Risk of injury caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof. | No parts of the body or limbs should be within the operating area when the components are moving. | AS00.00-Z-0011-01A | |
| Notes on sensor system for trunk lid opening/closing | AH80.61-P-0001-01A | ||
| Remove/install | |||
| 1 | Remove handle strip from trunk lid | AR88.50-P-5062LF | |

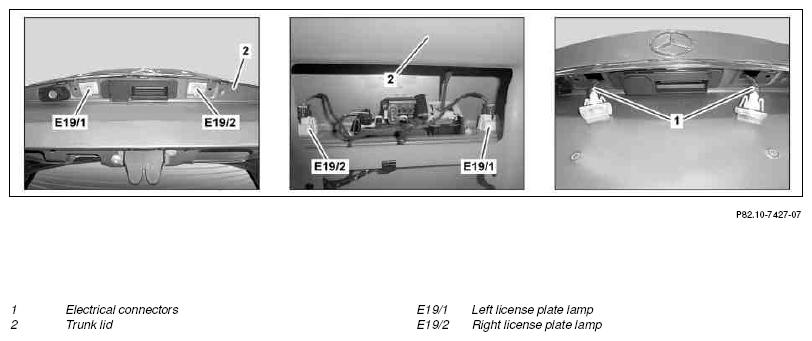

| 2 | Detach trunk lid trim until left license plate lamp (E19/1) and right license plate lamp (E19/2) are accessible | AR88.50-P-5000LW | |
| 3 | Release and move out left license plate lamp (E19/1) and right license plate lamp (E19/2) | ||
| 4 | Disconnect electrical connectors (1) and remove left license plate lamp (E19/1) and right license plate lamp (E19/2) | ||
| 5 | Install in the reverse order |
