Remove/install global positioning system (GPS) antenna - AR82.85-P-0002LW

Model 205, 253 with code 06U (Mercedes connect me standard services)

Model 205, 253 with code 348 (Emergency call/assistant system)

Model 205, 253 with code 350 (Ecall emergency call system, Europe)

Model 205, 253 with code 355 (Preinstallation for retrofitting navigation system)

Model 205, 253 with code 357 (Map navigation)

Model 205, 253 with code 531 (COMAND APS)

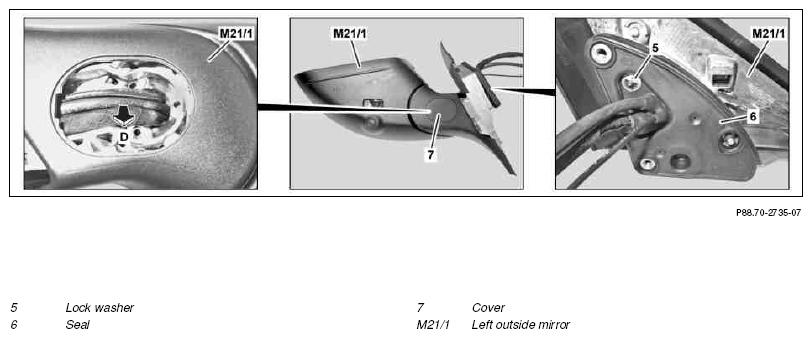

Fig 1: Identifying Global Positioning System Antenna Remove/Install Components (1 Of 4)
G10134596Courtesy of MERCEDES-BENZ USA

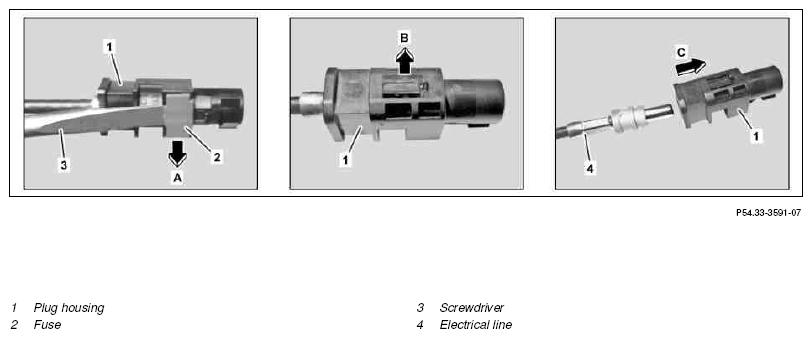

Fig 2: Identifying Global Positioning System Antenna Remove/Install Components (2 Of 4)
G10134597Courtesy of MERCEDES-BENZ USA

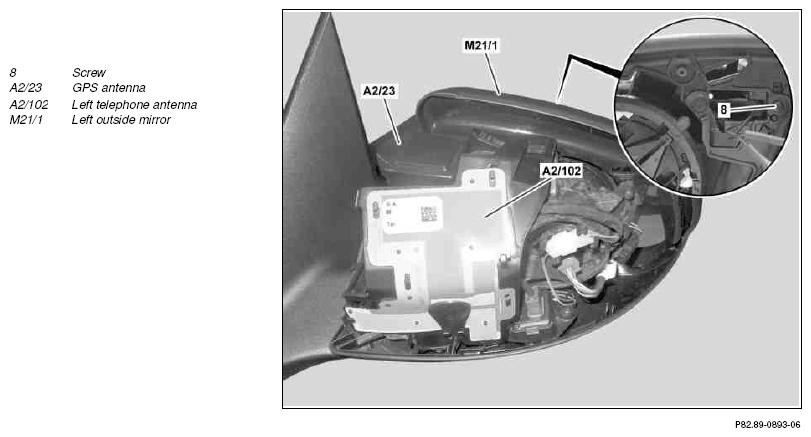

Fig 3: Identifying Global Positioning System Antenna Remove/Install Components (3 Of 4)
G10134598Courtesy of MERCEDES-BENZ USA

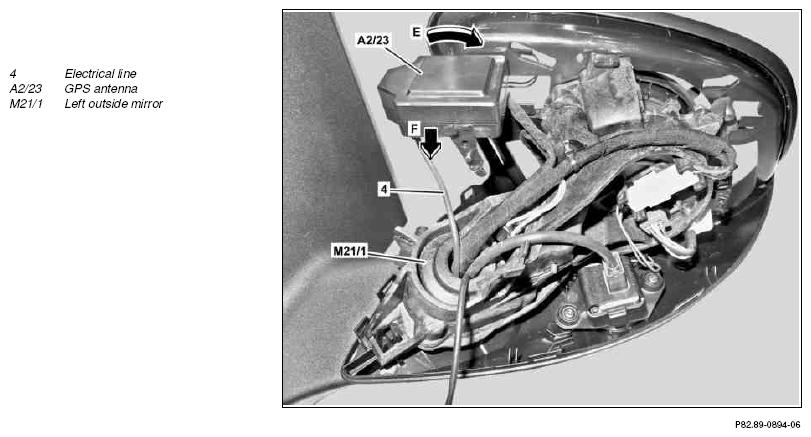

Fig 4: Identifying Global Positioning System Antenna Remove/Install Components (4 Of 4)
G10134599NOTESREMOVINGINSTALLINGIMPORTANTSPECIAL TOOLSPECIAL TOOLINSTALLATION IMPORTANTCourtesy of MERCEDES-BENZ USA
NOTES Information on preventing damage to electronic components due to electrostatic discharge   AH54.00-P-0001-01A
REMOVINGINSTALLING Remove/install
1 Remove left outside mirror (M21/1)   AR88.70-P-9000LW
IMPORTANT The GPS antenna (A2/23) is always installed on the driver side. Removal/installation is described taking installation in the left outside mirror (M21/1) as an example.
2 Remove left outside mirror trim   AR88.70-P-9040LF
3 Remove circlip (5)
4 Coat seal (6) in vicinity of electrical lines with a suitable lubricant and pull approx. 15 cm over the electrical lines
5 Remove cover (7) from bottom of left outside mirror (M21/1)
6 Pull electrical lines approx. 15 cm out of left outside mirror (M21/1) (arrow D)
7 Remove retainer (2) from connector housing (1) using a suitable screwdriver (3) (arrow A)
8 Release connector housing (1) (arrow B) and detach from electrical line (4) (arrow C) SPECIAL TOOL Wiring harness repair kit, basic Figure
SPECIAL TOOL New passenger car wiring harness repair kit Figure
9 Detach left telephone antenna (A2/102) and place to one side with line connected Model 205, 253
with code 348 (Emergency call/assistant system)
AR82.62-P-0011LW
10 Unscrew bolt (8)
11 Pull the electrical line (4) completely out of seal (6) and out of left outside mirror (M21/1)
12 Turn GPS antenna (A2/23) (arrow E) and remove from left outside mirror (M21/1) (arrow F) INSTALLATION IMPORTANT Coat seal (6) with suitable lubricant at cable ducts.
13 Install in the reverse order
Fig 5: Identifying New Passenger Car Wiring Harness Repair Kit (220 589 04 99 00)
G07304827Courtesy of MERCEDES-BENZ USA
Fig 6: Identifying Wiring Harness Repair Kit, Basic (000 589 13 99 00)
G07304826Courtesy of MERCEDES-BENZ USA
