Remove/install emergency call system antenna - AR82.95-P-0017LW
MODEL 205.0/1 with CODE 348 (Emergency call/assistant system)
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Remove/install | |||
| 1 | Remove rear shelf | AR68.30-P-4581LW | |

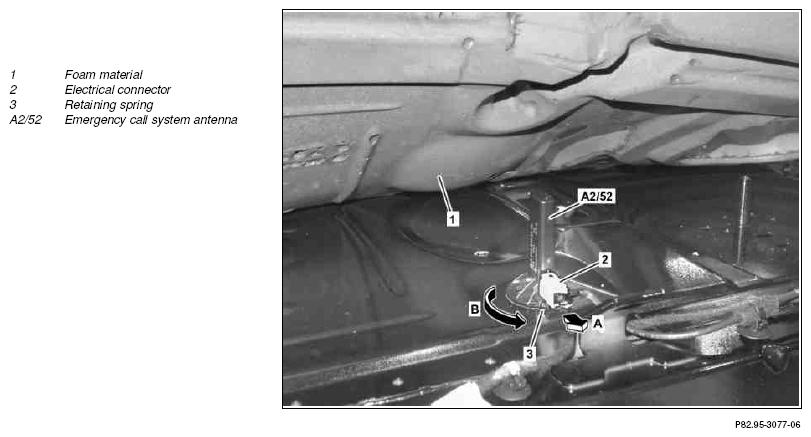

| 2 | Lift foam material (1) in center | ||
| 3 | Disconnect electrical connection (2) | ||
| 4 | Lift safety spring (3) and pull emergency call system antenna (A2/52) forward to end stop (arrow A) | ||
| 5 | Turn emergency call system antenna (A2/52) 90° counterclockwise (arrow B) and remove | ||
| 6 | Install in the reverse order |
