Remove/install antenna splitter - AR82.70-P-8953LW
MODEL 205.0/2 with CODE 537 (Digital radio (DAB)) with CODE 865 (TV tuner)
MODEL 205.0/2 with CODE B24 (remote control for auxiliary heater) with CODE B54 (Live Traffic Information)

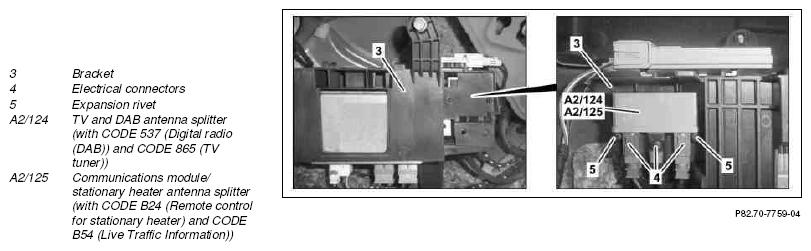

Shown on MODEL 205.0

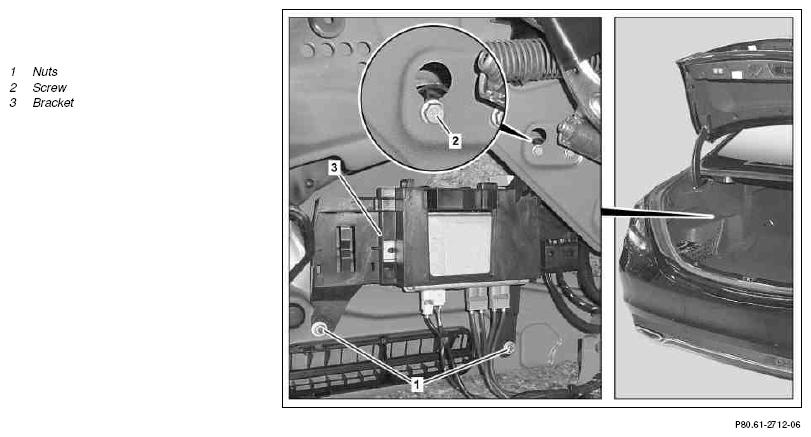

Shown on MODEL 205.0
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Remove/install | |||
| 1.1 | Remove side paneling in left trunk | MODEL 205.0 with CODE 537 (Digital radio (DAB)) with CODE 865 (TV tuner) MODEL 205.0 with CODE B24 (remote control for auxiliary heater) with CODE B54 (Live Traffic Information) |
|
| AR68.30-P-4800LW | |||
| 1.2 | Detach left side load compartment paneling in the rear area until the nuts (1) and the screw/bolt (2) are accessible | MODEL 205.2 with CODE 537 (Digital radio (DAB)) with CODE 865 (TV tuner) MODEL 205.2 with CODE B24 (remote control for auxiliary heater) with CODE B54 (Live Traffic Information) |
|
| AR68.30-P-1180LWS | |||
| 2 | Remove vehicle tool kit bracket | MODEL 205.0/2 with CODE 537 (Digital radio (DAB)) with CODE 865 (TV tuner) with CODE ME06 (Hybrid drive 50-KW variant (incl. plugin)) |
|
| 3 | Unscrew nuts (1) | ||
| 4 | Loosen screw/bolt (2) and put bracket (3) to one side with lines attached | ||
| 5 | Disconnect electrical connections (4) | ||
| 6 | Remove expansion rivet (5) | ||
| 7 | Remove TV and DAB antenna splitter (A2/124) or communications module/stationary heater antenna splitter (A2/125) from bracket (3) | ||
| 8 | Install in the reverse order |
