Taxi/rental vehicle, function - GF82.25-P-0019RF

MODEL 205 with CODE 965 (Electrical preinstallation for taxi and rental car)

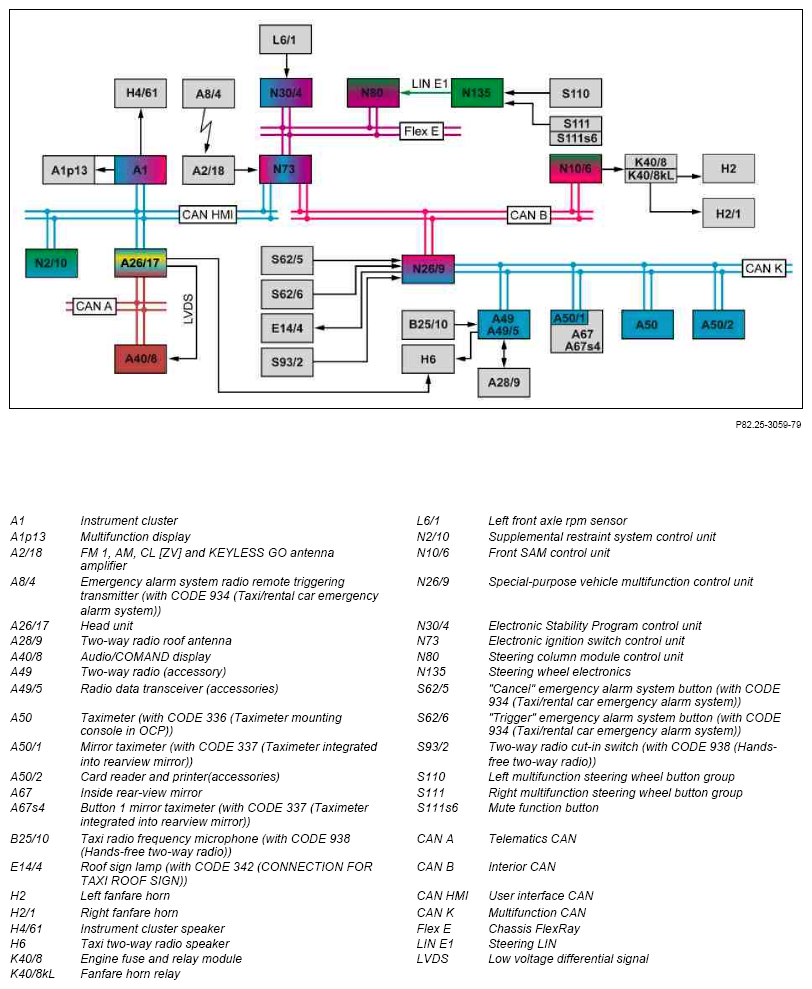

Fig 1: Taxi/Rental Vehicle - Function Diagram

Courtesy of MERCEDES-BENZ USA

Taxi/rental vehicle function, general

The taxi/rental vehicle base function contains the multifunction control unit to control and monitor various functions, the taxi two-way radio speaker and a specific vehicle wiring harness that enables different equipment to be integrated in the vehicle.

The following equipment can be integrated:

• Two-way radio (accessories) or radio data transceiver (accessories)
• Taximeter (with CODE 336 (Taximeter mounting console in OCP)) or mirror taximeter (with CODE 337 (Taximeter integrated into rearview mirror))
• Roof sign lamp (with CODE 342 (CONNECTION FOR TAXI ROOF SIGN))

The individual functions are enabled using the diagnostic tester.

The basic taxi/rental vehicle function consists of the following subfunctions, which are described in separate information:

• Mirror taximeter function (with CODE 337 (Taximeter integrated into rearview mirror))
• Taximeter function (with CODE 336 (Taximeter mounting console in OCP))
• Two-way radio integration, function
• Hands-free system radio frequency function (with CODE 938 (Hands-free two-way radio))
• Emergency alarm function (with CODE 934 (Taxi/rental car emergency alarm system))
