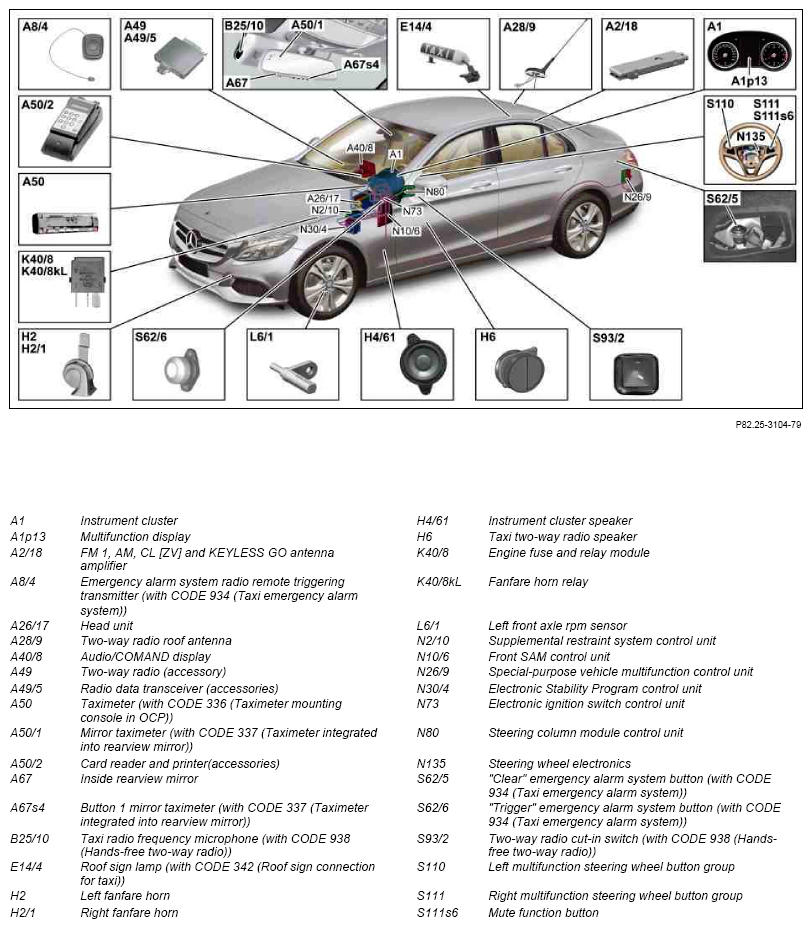

Overview of system components for taxi/rental vehicle - GF82.25-P-9890RF
Model 205 with code 965 (Preinstallation for hire car)
| Component description for instrument cluster | A1 | GF54.30-P-6000RF |
| Head unit, component description | Model 205 with code 520 (Audio 20 USB) with code 965 (Preinstallation for hire car) except code 522 (Audio 20 radio) except code 531 (COMAND APS) A26/17 |
GF82.85-P-3140RF |
| Model 205 with code 522 (Audio 20 radio) with code 965 (Preinstallation for hire car) except code 520 (Audio 20 USB) except code 531 (COMAND APS) A26/17 |
GF82.85-P-3140RFA | |
| Model 205 with code 531 (COMAND APS) with code 965 (Preinstallation for hire car) except code 520 (Audio 20 USB) except code 522 (Audio 20 radio) A26/17 |
GF82.85-P-3140RFB | |
| Component description for Audio/COMAND display | A40/8 | GF54.30-P-6150RF |
| Supplemental restraint system control unit, component description | N2/10 | GF91.60-P-4080RF |
| Component description for front SAM control unit | N10/6 | GF54.21-P-7010RF |
| Special vehicle multifunction control unit (SVMCU (MSS)), component description | N26/9 | GF54.21-P-4010RF |
| Component description for Electronic Stability Program control unit | Model 205 (except 205.012/047/147/212/247) with code 965 (Preinstallation for hire car) N30/4 |
GF42.45-P-5119RF |
| Component description for the electronic ignition lock control unit | N73 | GF80.57-P-6001RF |
| Component description for steering column tube module control unit | N80 | GF54.21-P-6051RF |
| Table of contents for function description for taxi/rental vehicle | GF82.25-P-0890RF |
