Overview of interior illumination (IBL) system components - GF82.20-P-9997RF

Model 205, 253

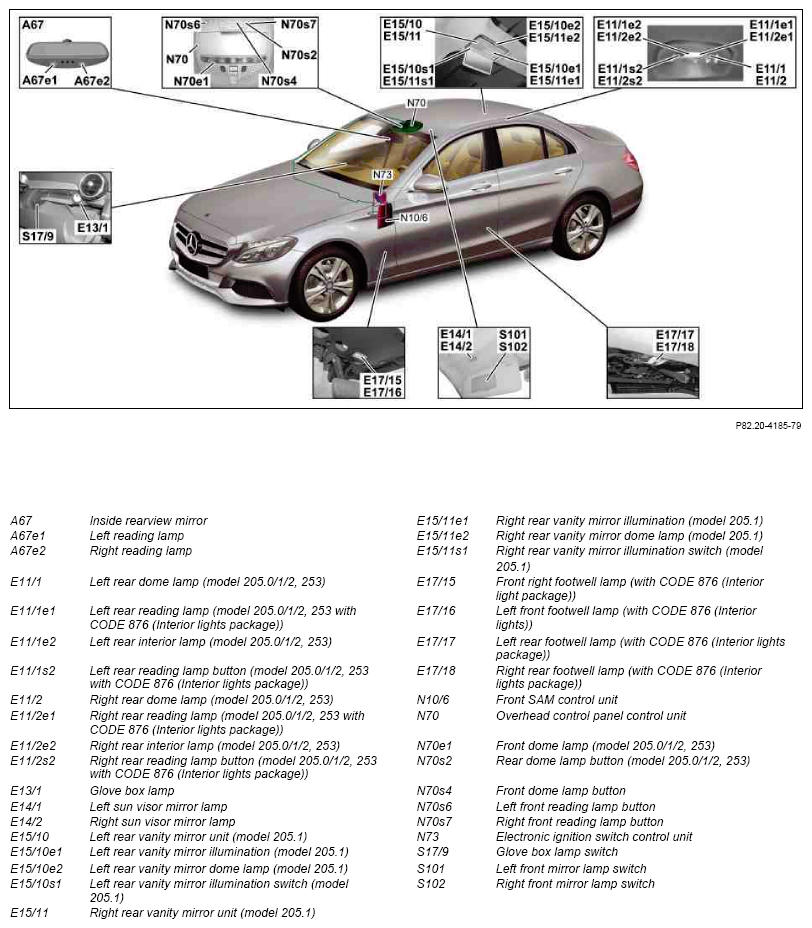

Fig 1: Overview Of Manual Interior Lights Control Components - Shown On Model 205.0
G10134487Courtesy of MERCEDES-BENZ USA

Manual interior lights control, shown on model 205.0

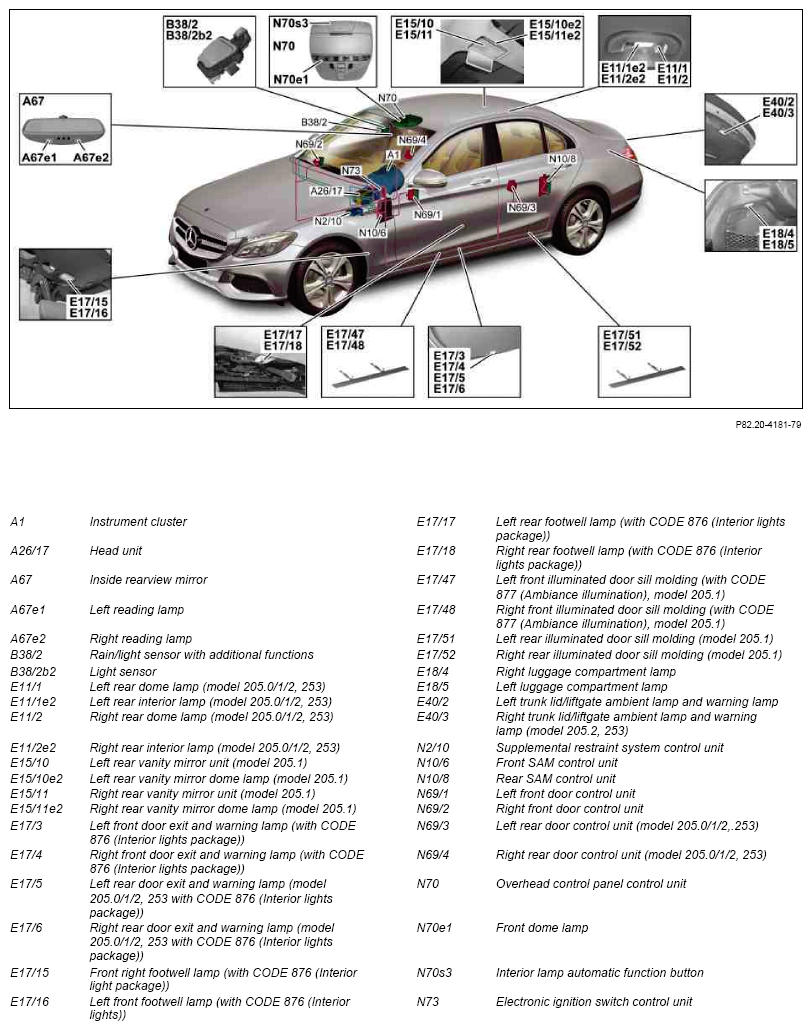

Fig 2: Overview Of Automatic Interior Lights Control Components - Shown On Model 205.0
G10134488Courtesy of MERCEDES-BENZ USA

Automatic interior lights control, shown on model 205.0

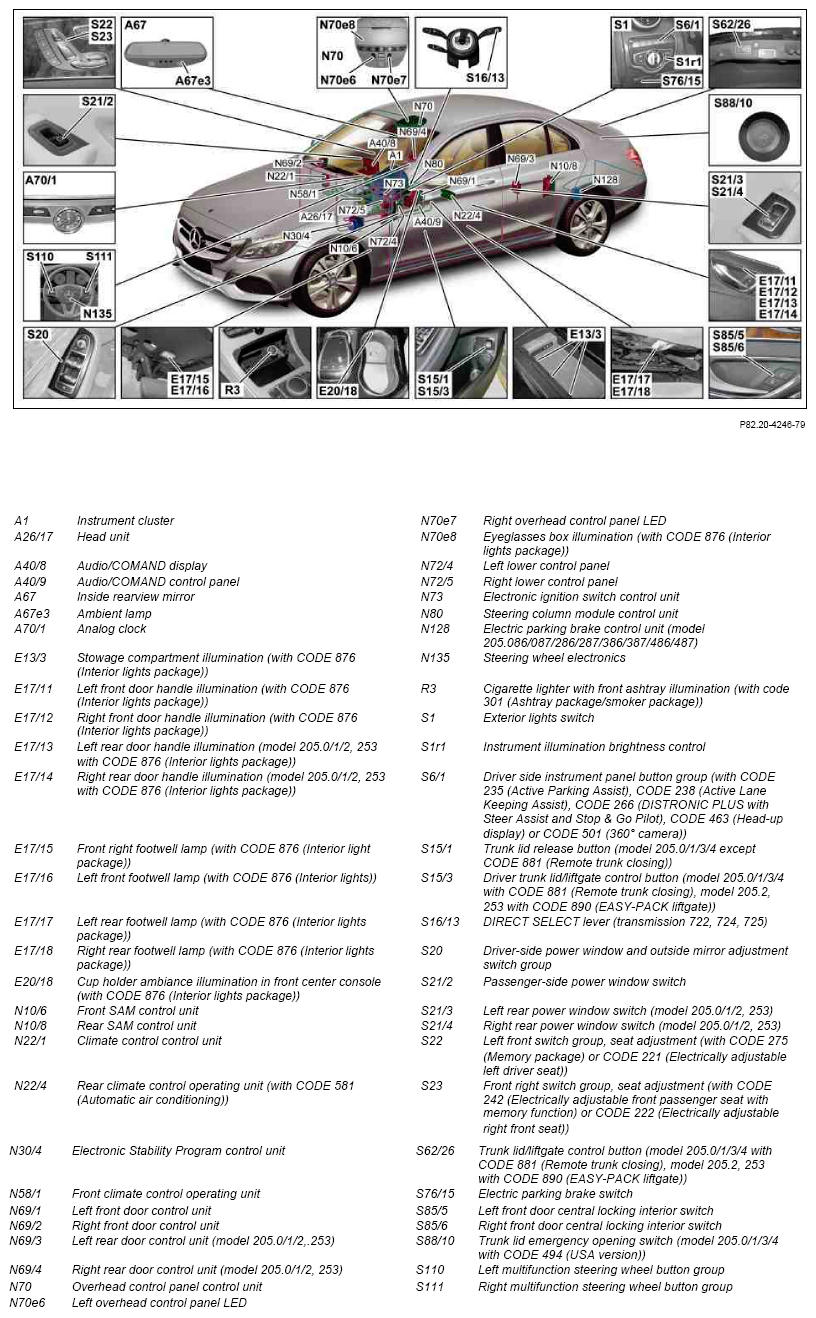

Fig 3: Overview Of Switch, Controls And Symbol Illumination Components - Shown On Model 205.0
G10134489Courtesy of MERCEDES-BENZ USA

Switch and controls and symbol illumination, shown on model 205.0

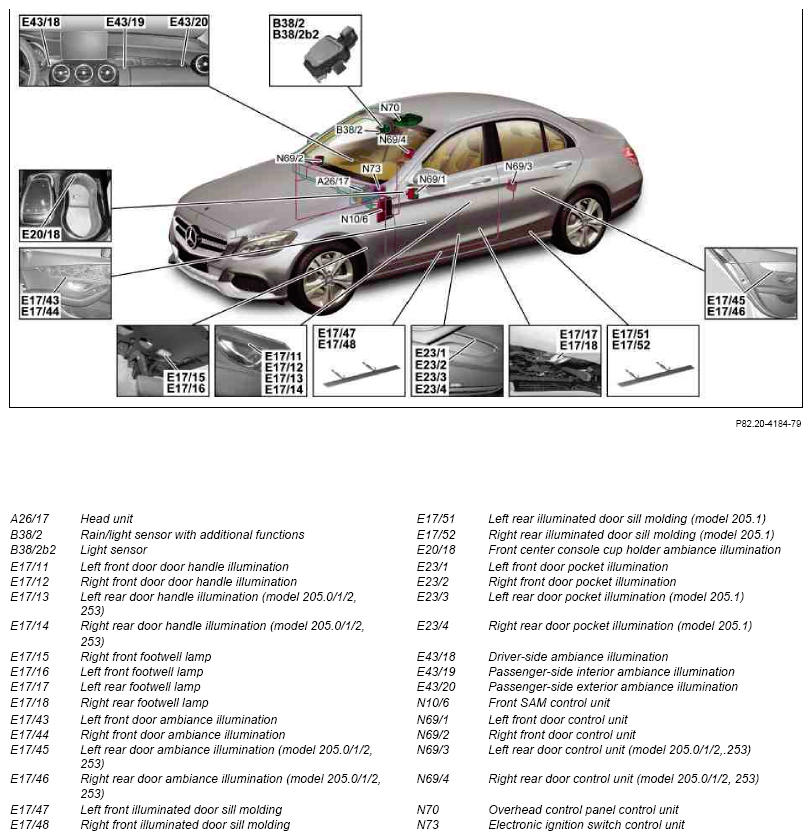

Fig 4: Overview Of Ambiance Illumination Components - Shown On Model 205.0
G10134490Courtesy of MERCEDES-BENZ USA

Ambiance illumination (with CODE 877 (Ambiance illumination)), shown on model 205.0

Component description for instrument cluster A1 GF54.30-P-6000RF
Head unit, component description Model 205
with code 520 (Audio 20 USB)
except code 522 (Audio 20 radio)
except code 531 (COMAND APS)
Model 253
with code 520 (Audio 20 USB)
except code 522 (Audio 20 radio)
except code 531 (COMAND APS)
A26/17		 GF82.85-P-3140RF
Model 205
with code 522 (Audio 20 radio)
except code 520 (Audio 20 USB)
except code 531 (COMAND APS)
Model 253
with code 522 (Audio 20 radio)
except code 520 (Audio 20 USB)
except code 531 (COMAND APS)
A26/17		 GF82.85-P-3140RFA
Model 205
with code 531 (COMAND APS)
except code 520 (Audio 20 USB)
except code 522 (Audio 20 radio)
Model 253
with code 531 (COMAND APS)
except code 520 (Audio 20 USB)
except code 522 (Audio 20 radio)
A26/17		 GF82.85-P-3140RFB
Component description for Audio/COMAND display A40/8 GF54.30-P-6150RF
Component description for Audio/COMAND control panel A40/9 GF54.21-P-4501RF
Rain/light sensor with additional functions, component description B38/2 GF54.21-P-6005RF
Supplemental restraint system control unit, component description N2/10 GF91.60-P-4080RF
Component description for front SAM control unit N10/6 GF54.21-P-7010RF
Component description for rear SAM control unit N10/8 GF54.21-P-7030RF
Climate control unit, component description N22/1 GF83.40-P-2250RF
Rear climate control operating unit, component description Model 205, 253
with code 581 (Automatic air conditioning)
N22/4		 GF83.40-P-3050RF
Component description for Electronic Stability Program control unit Model 205 (except 205.012/047/147/212/247), 253 (except 253.354/954)
N30/4		 GF42.45-P-5119RF
Model 205.012/047/147/212/247
N30/4		 GF42.45-P-5119RFH
Front climate control operating unit, component description N58/1 GF83.40-P-2260RF
Component description for left front door control unit N69/1 GF72.29-P-6001RF
Component description for right front door control unit N69/2 GF72.29-P-6009RF
Component description for rear door control unit Model 205.0/1/2, 253
N69/3, N69/4		 GF72.29-P-6021RF
Component description for overhead control panel control unit N70 GF82.20-P-5216RF
Component description for the electronic ignition lock control unit N73 GF80.57-P-6001RF
Component description for steering column tube module control unit N80 GF54.21-P-6051RF
Electric parking brake control unit, component description Model 205
with code 990 (AMG vehicles)
N128		 GF42.20-P-5005RF
Contents, function description of interior illumination (IBL)   GF82.20-P-0998RF
