Retrofit pedal cover - AN29.10-P-0003LW

MODEL 205.0 (except 205.064/086/087), 205.1 (except 205.164), 205.2 (except 205.264/286/287) without CODE 772 (AMG bodystyling) without CODE P29 (AMG Line interior)

Shown with CODE 427 (Automatic transmission 7G-TRONIC PLUS)

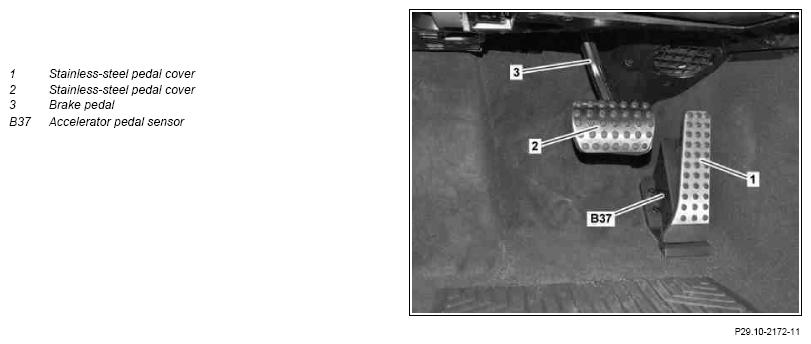

Fig 1: Identifying Retrofit Pedal Cover - Shown With Code 427

Courtesy of MERCEDES-BENZ USA

	Remove
1	Remove rubber pedal cover of accelerator pedal sensor (B37) and of brake pedal (3)	The rubber pedal covers are no longer required.
2	Remove rubber pedal cover of clutch pedal	Vehicles with transmission 716 The rubber pedal cover is no longer required.
	Install
3	Fit stainless-steel pedal cover onto clutch pedal	Vehicles with transmission 716 Do not use lubricant when installing. Otherwise the tight seating of the stainless-steel pedal cover will not be assured.
4	Fit stainless-steel pedal cover (1) onto accelerator pedal sensor (B37)	Do not use lubricant when installing. Otherwise the tight seating of the stainless-steel pedal cover (1) will not be assured.
5	Fit stainless-steel pedal cover (2) onto brake pedal (3)	Do not use lubricant when installing. Otherwise the tight seating of the stainless-steel pedal cover (2) will not be assured.
6	Attach a note "Pedal cover retrofitted as per AN29.10-P-0003LW " under field organization texts for DG 29
