Remove/install vacuum pump - AR43.05-P-1320LW
Model 205 with engine 276.8
| Risk of injury. Skin or eye injuries may result when handling hot or glowing objects. | Wear protective gloves, protective clothing and safety glasses, if necessary. | AS00.00-Z-0002-01A | |
| Notes on avoiding damage through contamination and foreign objects | AH00.00-P-5000-01A | ||
| Remove/install | |||
| 1 | Open engine hood and raise to vertical position | ||

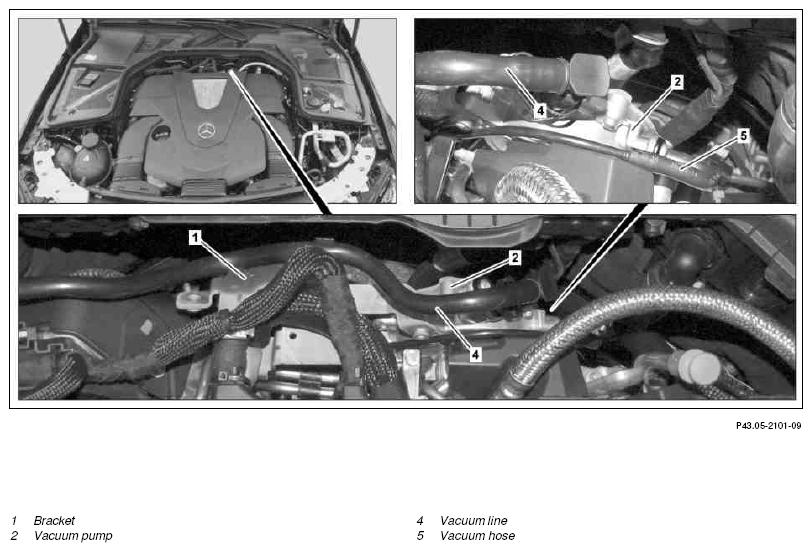

| 2 | Remove bracket (1) | ||
| 3 | Detach vacuum hose (5) from vacuum pump (2) | ||
| 4 | Unlock and pull off vacuum line (4) on vacuum pump (2) | ||

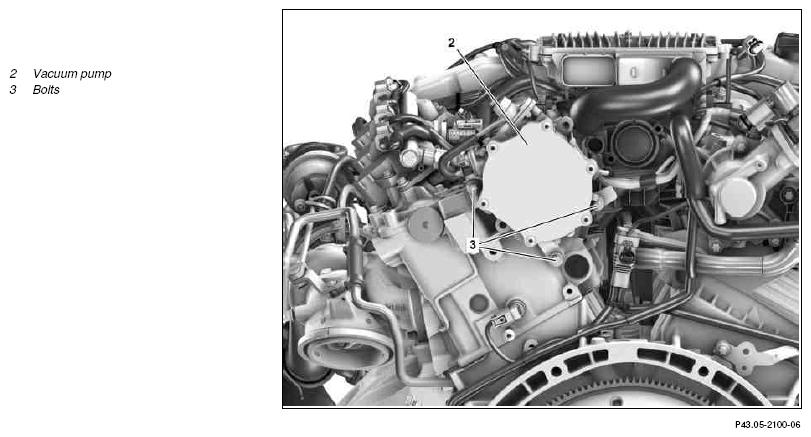

| 5 | Remove bolts (3) | *BA43.05-P-1001-01K | |
| 6 | Remove vacuum pump (2) | ||
| 7 | Install in the reverse order | ||
| Check | |||
| Risk of accident from vehicle starting off by itself when engine running. Risk of injury (bruises and burns) resulting from working on the engine while it is being started or when it is running. | Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. | AS00.00-Z-0005-01A | |
| 8 | Test run engine and carry out leak check |
VACUUM PUMP
| Number | Designation | Model 166, 172, 204, 205, 207, 212, 218, 221, 222, 231, 251, 292 with engine 276 | |
|---|---|---|---|
| BA43.05-P-1001-01K | Bolt, vacuum pump to cylinder head/cylinder head cover | Nm | 9 |
