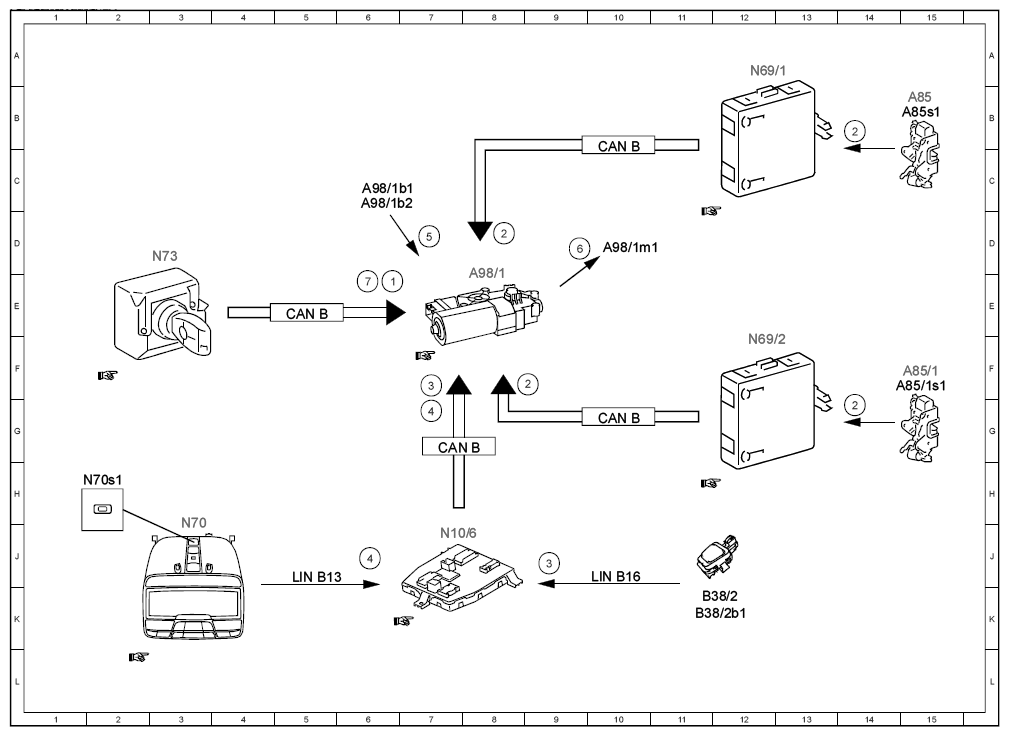

| 1 |
Circuit 15, status |
6E |
| 2 |
Door rotary tumbler switch, status |
8D |
| 2 |
Door rotary tumbler switch, status |
14G |
| 2 |
Door rotary tumbler switch, status |
14B |
| 2 |
Door rotary tumbler switch, status |
9F |
| 3 |
Rain closing, request |
9J |
| 3 |
Rain closing, request |
7F |
| 4 |
Roof system switch, status |
6J |
| 4 |
Roof system switch, status |
7G |
| 5 |
Hall sensors, signal |
7D |
| 6 |
Sliding roof motor, actuation |
9D |
| 7 |
Central locking, status |
6E |
| A85 |
Left front door lock |
15B |
| A85/1 |
Right front door lock |
15F |
| A85/1s1 |
Right front door rotary tumbler switch |
15F |
| A85s1 |
Left front door rotary tumbler switch |
15B |
| A98/1 |
Sliding roof control module |
8E |
| A98/1b1 |
Hall sensor 1, sliding roof |
6C |
| A98/1b2 |
Hall sensor 2, sliding roof |
6C |
| A98/1m1 |
Sliding roof motor |
10D |
| B38/2 |
Rain/light sensor with additional functions |
11K |
| B38/2b1 |
Rain sensor |
11K |
| CAN B |
Interior CAN |
7G |
| CAN B |
Interior CAN |
5E |
| CAN B |
Interior CAN |
10C |
| CAN B |
Interior CAN |
10G |
| LIN B13 |
Roof LIN |
5J |
| LIN B16 |
Rain and light sensor LIN |
10J |
| N10/6 |
Front SAM control unit |
7J |
| N69/1 |
Left front door control unit |
12A |
| N69/2 |
Right front door control unit |
12F |
| N70 |
Overhead control panel control unit |
3J |
| N70s1 |
Roof switch |
2H |
| N73 |
Electronic ignition switch control unit |
3D |
