Remove/install air cushion of multicontour backrest on driver and front passenger side - AR91.25-P-1680NKA
Model 117, 156, 176, 205.0/2 with code 555 (AMG Performance seats)
Model 253 with code 555 (AMG Performance seats)

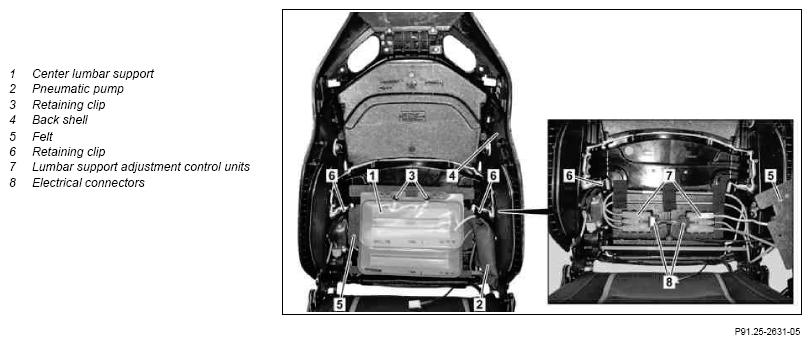

Fig 1: Identifying Driver And Front Passenger Side Multicontour Backrest Air Cushion Remove/Install Components (1 Of 3)

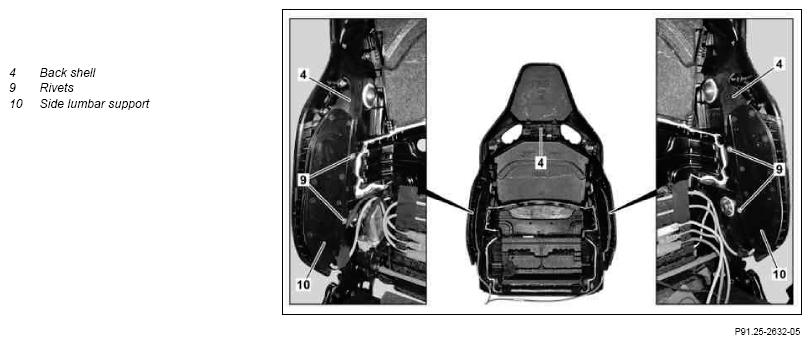

Fig 2: Identifying Driver And Front Passenger Side Multicontour Backrest Air Cushion Remove/Install Components (2 Of 3)

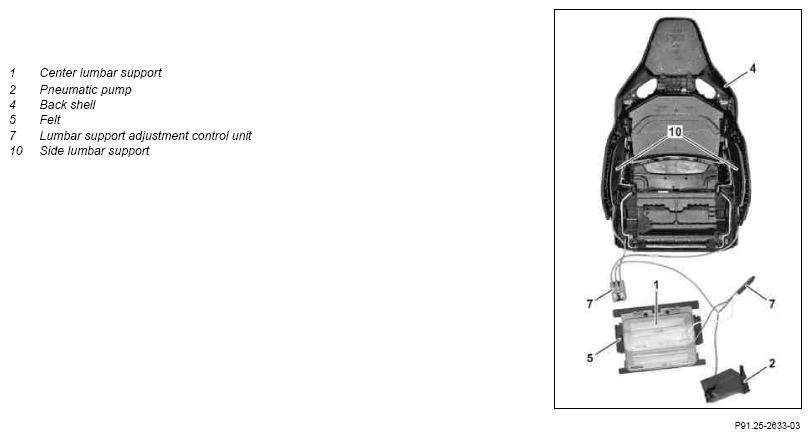

Fig 3: Identifying Driver And Front Passenger Side Multicontour Backrest Air Cushion Remove/Install Components (3 Of 3)
| Remove/install | |||
| 1 | Detach seat cover with padding from backrest and place to one side | AR91.18-P-1820NKC | |
| 2 | Unclip retaining clips (3) between back shell (4) and felt (5) and place center lumbar support (1) with felt (5) to one side | Figure | |
| 3 | Unclip retaining clips (6) | ||
| 4 | Disconnect electrical connectors (8), expose lumbar support adjustment control units (7) with hose lines and place to one side | ||
| 5 | Drill out rivet heads from rivets (9) | ||
| General information on riveting | AH60.00-P-0003-01N | ||
| 000 588 02 39 00 Rivet press tool | WS60.00-P-0010B | ||
| 6 | Detach side lumbar support (10) | Figure | |
| 7 | Remove rivet residue and chippings completely from back shell (4) | Completely remove rivet residues. Otherwise, the remaining rivet residues will generate noise or damage to the backrest. |
|
| 8 | Remove center lumbar support (1) with pneumatic pump (2) and side lumbar support (10) | ||
| 9 | Install in the reverse order |
