| A0 |
Use of wiring diagrams |
56L |
| CAN B |
Interior CAN |
9K |
| Code 222 |
Electrically adjustable right front seat |
5D |
| Code 222 |
Electrically adjustable right front seat |
10D |
| Code 241 |
All-electric front passenger seat with memory (left) |
22F |
| Code 241 |
All-electric front passenger seat with memory (left) |
17F |
| Code 241 |
All-electric front passenger seat with memory (left) |
46F |
| Code 241 |
All-electric front passenger seat with memory (left) |
7E |
| Code 242 |
All-electric front passenger seat with memory (right) |
17F |
| Code 242 |
All-electric front passenger seat with memory (right) |
22F |
| Code 242 |
All-electric front passenger seat with memory (right) |
46F |
| Code 242 |
All-electric front passenger seat with memory (right) |
7D |
| Code 401 |
Seat climate control for driver and front passenger |
31D |
| Code 401 |
Seat climate control for driver and front passenger |
39D |
| Code 873 |
Seat heater for driver and front passenger |
30D |
| F1/3 |
Right A-pillar fuse box |
4L |
| F1/3f306 |
Fuse 306 |
1K |
| F1/3f328 |
Fuse 328 |
3K |
| M18/10 |
Left front backrest seat ventilation motors |
44L |
| M18/11 |
Right front seat cushion seat ventilation motors |
41L |
| M18/11x1 |
Right front seat cushion seat ventilation motor electrical connector |
40E |
| M18/12 |
Right front backrest seat ventilation motors |
44L |
| M18/12x1 |
Right front backrest seat ventilation motor electrical connector |
44E |
| M18/9 |
Left front seat cushion seat ventilation motors |
41L |
| M28/1 |
Front passenger seat fore/aft adjustment motor |
18L |
| M28/10 |
Front passenger seat height adjustment motor |
22L |
| M28/10b1 |
Front passenger seat, seat height adjustment Hall sensor, |
23L |
| M28/1b1 |
Seat fore/aft adjustment Hall sensor, front passenger seat |
19L |
| M28/4 |
Front passenger seat head restraint adjustment motor |
48L |
| M28/4b1 |
Head restraint adjustment Hall sensor, front passenger seat |
48L |
| M28/4x1 |
Head restraint adjustment motor electrical connector, front passenger seat |
47H |
| M28/5 |
Front passenger seat backrest inclination adjustment motor |
51L |
| M28/5b1 |
Backrest inclination Hall sensor, front passenger seat |
50L |
| M28/8 |
Seat cushion length adjustment motor, front passenger seat |
25L |
| M28/8b1 |
Seat cushion length adjustment Hall sensor, front passenger seat |
26L |
| M28/8x1 |
Seat cushion length adjustment motor electrical connector, front passenger |
24H |
| M28/9 |
Seat inclination adjustment motor, front passenger seat |
29L |
| M28/9b1 |
Seat inclination adjustment Hall sensor, front passenger seat |
27L |
| N10/8 |
Rear SAM control unit |
13L |

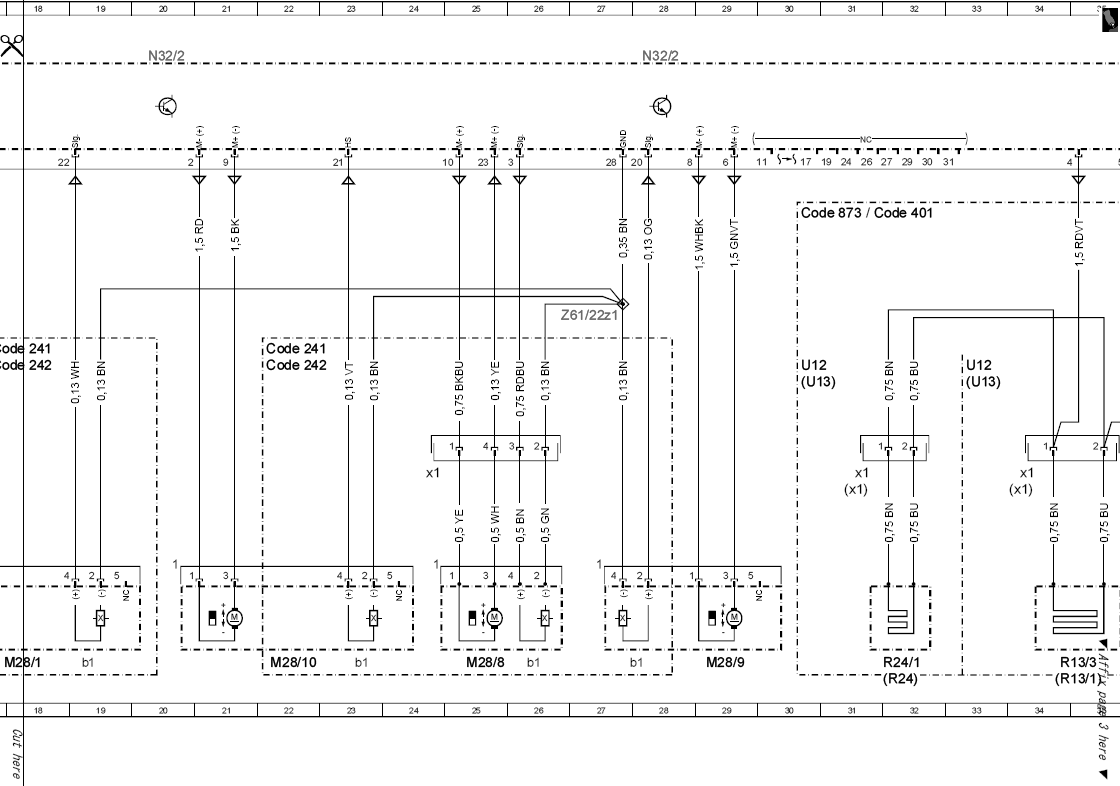

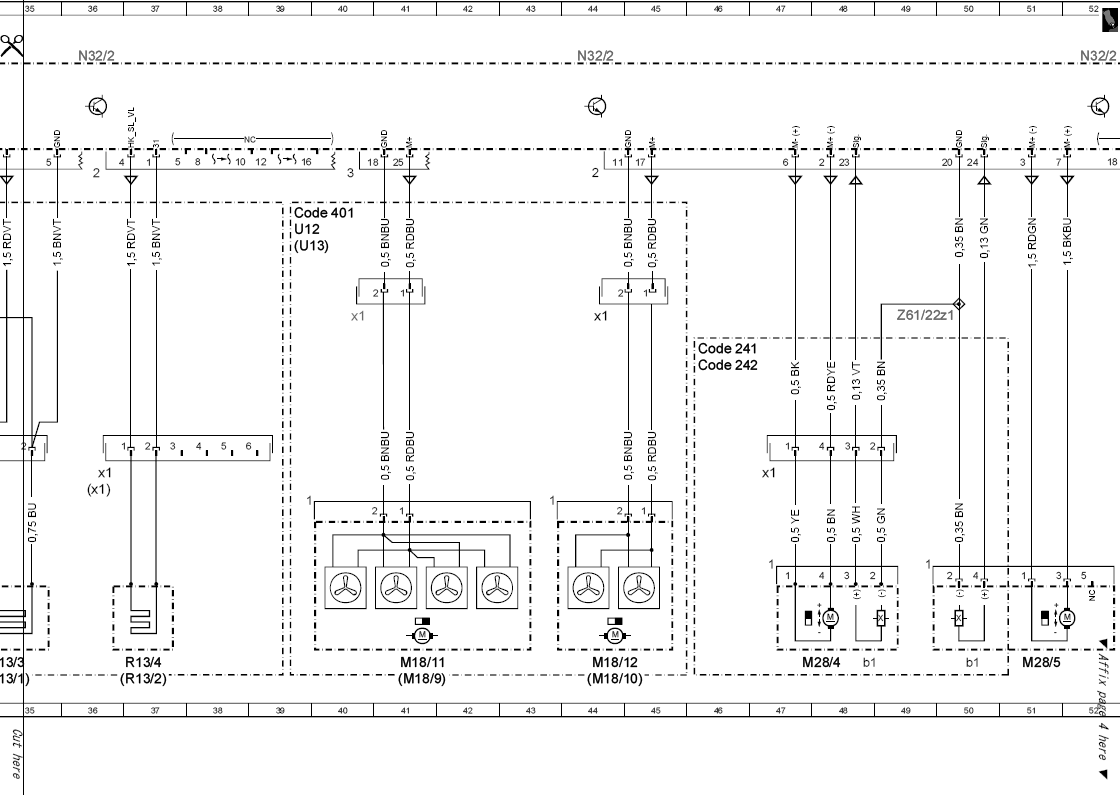

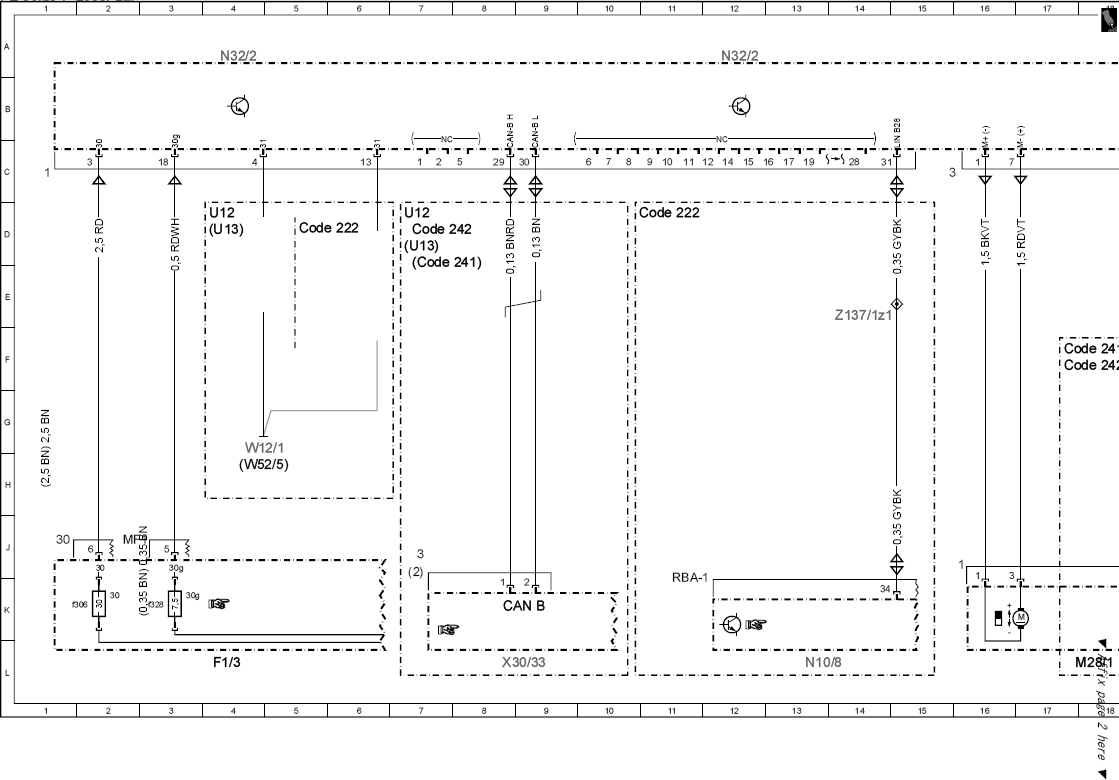

| N32/2 |
Front passenger seat control unit |
12A |
| N32/2 |
Front passenger seat control unit |
4A |
| N32/2 |
Front passenger seat control unit |
20A |
| N32/2 |
Front passenger seat control unit |
28A |
| N32/2 |
Front passenger seat control unit |
36A |
| N32/2 |
Front passenger seat control unit |
44A |
| N32/2 |
Front passenger seat control unit |
52A |
| R13/1 |
Left front seat cushion heater pad |
34L |
| R13/1x1 |
Left front seat surface heater pad electrical connector |
34H |
| R13/2 |
Left front seat backrest heater pad |
37L |
| R13/2x1 |
Left front seat backrest heater pad electrical connector |
36H |
| R13/3 |
Right front seat cushion heater pad |
34L |
| R13/3x1 |
Right front seat cushion heater pad electrical connector |
34H |
| R13/4 |
Right front seat backrest heater pad |
37L |
| R13/4x1 |
Right front seat backrest heater pad electrical connector |
36H |
| R24 |
Adjustable seat cushion length heater pad, left front seat |
32L |
| R24/1 |
Adjustable seat cushion length heater pad, right front seat |
32L |
| R24/1x1 |
Adjustable seat cushion length heater pad electrical connector, right front seat |
31H |
| R24x1 |
Adjustable seat cushion length heater pad electrical connector, left front seat |
31H |
| U12 |
Valid for left-hand drive vehicles |
30F |
| U12 |
Valid for left-hand drive vehicles |
7D |
| U12 |
Valid for left-hand drive vehicles |
4D |
| U12 |
Valid for left-hand drive vehicles |
33F |
| U12 |
Valid for left-hand drive vehicles |
39D |
| U13 |
Valid for right-hand drive vehicles |
30F |
| U13 |
Valid for right-hand drive vehicles |
4D |
| U13 |
Valid for right-hand drive vehicles |
33F |
| U13 |
Valid for right-hand drive vehicles |
39D |
| U13 |
Valid for right-hand drive vehicles |
7D |
| W12/1 |
Right center console ground point |
4G |
| W52/5 |
Left center longitudinal member ground point |
4H |
| X30/33 |
Right interior CAN (CAN B) potential distributor electrical connector |
8L |
| Z137/1z1 |
Connector sleeve, heater LIN |
14E |
| Z61/22z1 |
Left rear seat heater ground line connector sleeve |
27E |
| Z61/22z1 |
Left rear seat heater ground line connector sleeve |
49E |
