| A0 |
Use of wiring diagrams |
72L |
| CAN B |
Interior CAN |
17K |
| Code 221 |
Fully electric driver seat adjustment without memory without electric head restraint adjustment |
19D |
| Code 275 |
Memory package |
7D |
| Code 275 |
Memory package |
30F |
| Code 275 |
Memory package |
26F |
| Code 275 |
Memory package |
54F |
| Code 275 |
Memory package |
16D |
| Code 275 |
Memory package |
16E |
| Code 401 |
Seat climate control for driver and front passenger |
48D |
| Code 401 |
Seat climate control for driver and front passenger |
40D |
| Code 873 |
Seat heater for driver and front passenger |
39D |
| F1/3 |
Right A-pillar fuse box |
4L |
| F1/3f305 |
Fuse 305 |
1K |
| F1/3f327 |
Fuse 327 |
3K |
| M18/10 |
Left front backrest seat ventilation motors |
53L |
| M18/10x1 |
Left front backrest seat ventilation motor electrical connector |
53E |
| M18/11 |
Right front seat cushion seat ventilation motors |
50L |
| M18/12 |
Right front backrest seat ventilation motors |
53L |
| M18/9 |
Left front seat cushion seat ventilation motors |
50L |
| M18/9x1 |
Left front seat cushion seat ventilation motor electrical connector |
49E |
| M20/1 |
Steering column in/out adjustment motor |
9L |
| M20/1b1 |
Steering column in/out Hall sensor |
11L |
| M20/2 |
Steering column up/down adjustment motor |
13L |
| M20/2b1 |
Steering column up/down Hall sensor |
12L |
| M27/1 |
Driver seat fore/aft adjustment motor |
26L |
| M27/10 |
Driver seat height adjustment motor |
30L |
| M27/10b1 |
Driver seat, seat height adjustment Hall sensor, |
32L |
| M27/1b1 |
Seat fore/aft adjustment Hall sensor, driver seat |
27L |
| M27/4 |
Driver seat head restraint adjustment motor |
56L |
| M27/4b1 |
Head restraint adjustment Hall sensor, driver seat |
57L |
| M27/4x1 |
Head restraint adjustment motor electrical connector, driver seat |
55H |
| M27/5 |
Driver seat backrest inclination adjustment motor |
60L |
| M27/5b1 |
Backrest inclination Hall sensor, driver seat |
59L |
| M27/8 |
Seat cushion length adjustment motor, driver seat |
34L |
| M27/8b1 |
Seat cushion length adjustment Hall sensor, driver seat |
34L |
| M27/8x1 |
Seat cushion length adjustment motor electrical connector, driver seat |
33H |
| M27/9 |
Seat inclination adjustment motor, driver seat |
37L |
| M27/9b1 |
Seat inclination adjustment Hall sensor, driver seat |
36L |
| N10/8 |
Rear SAM control unit |
22L |
| N32/1 |

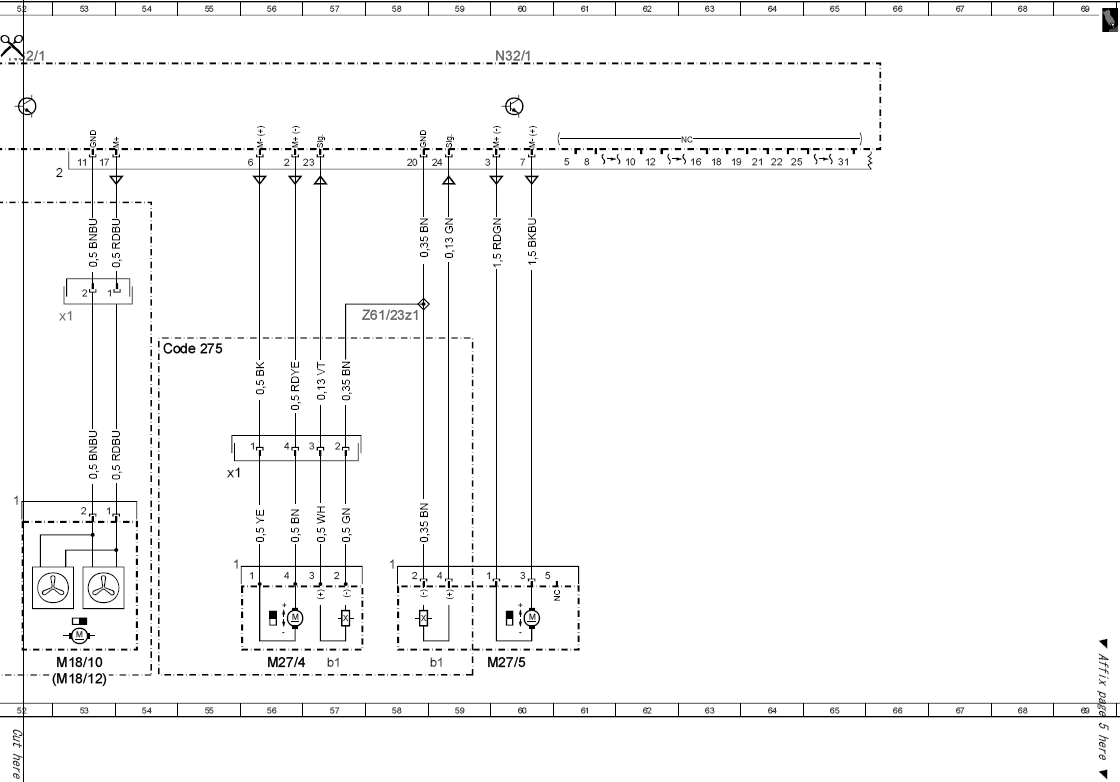

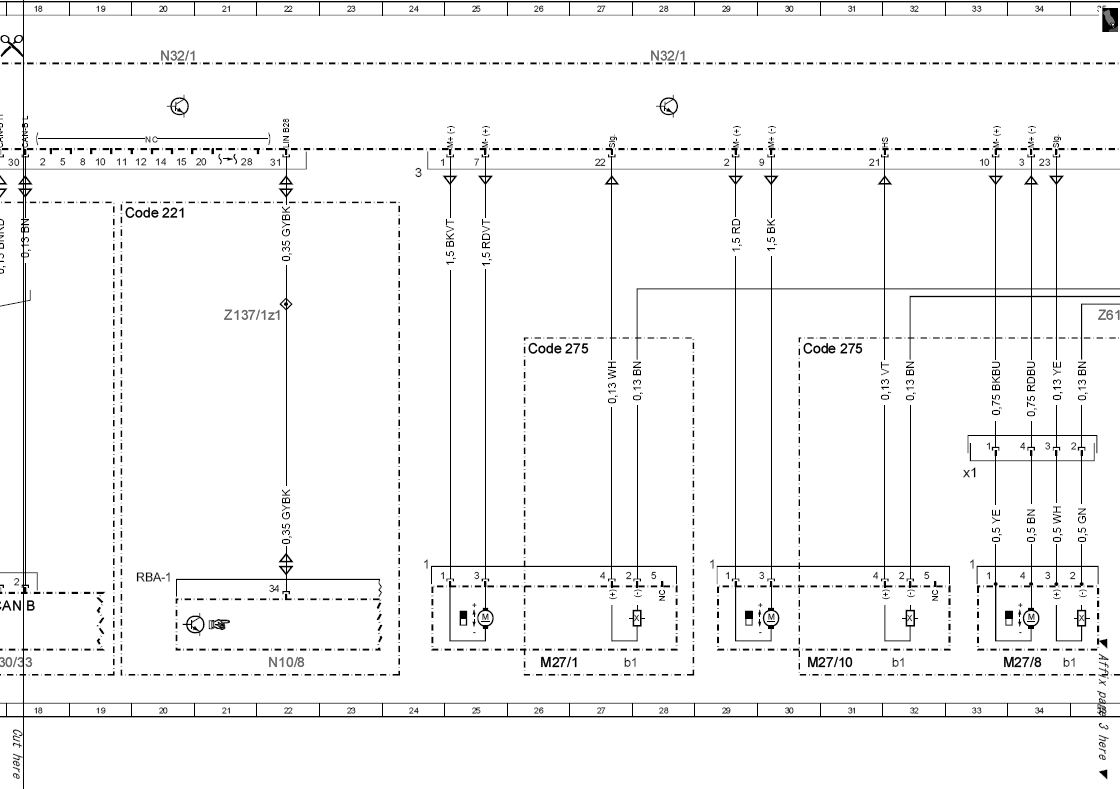

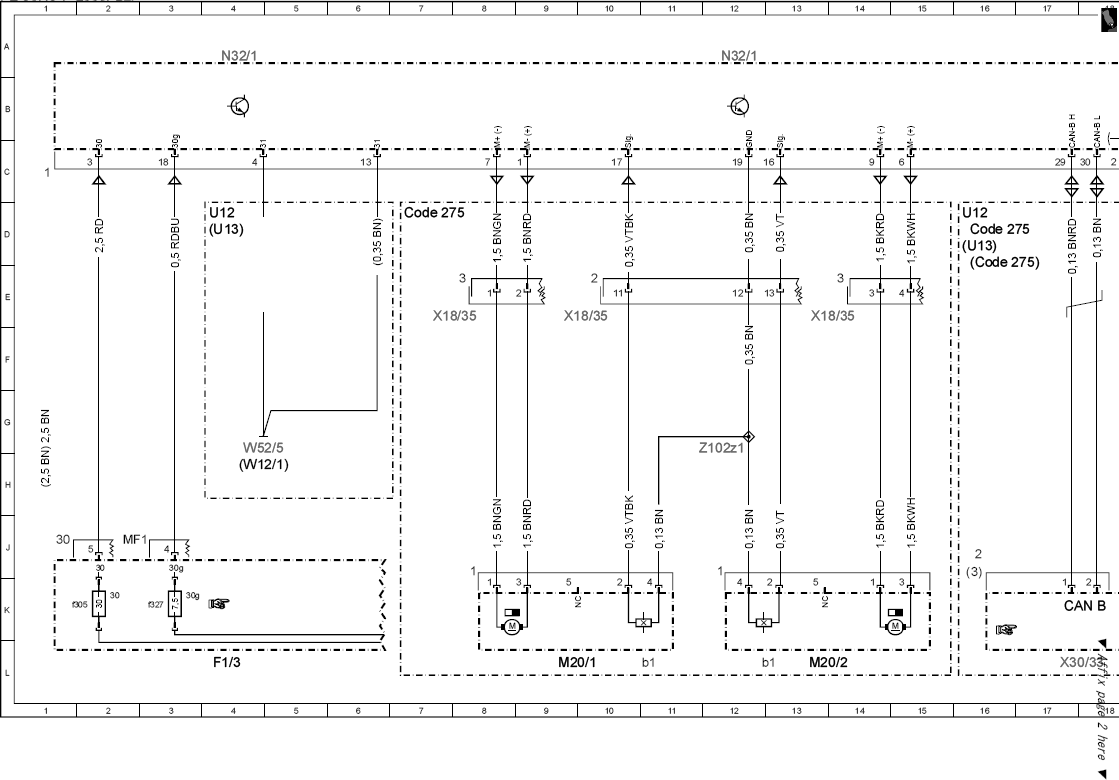

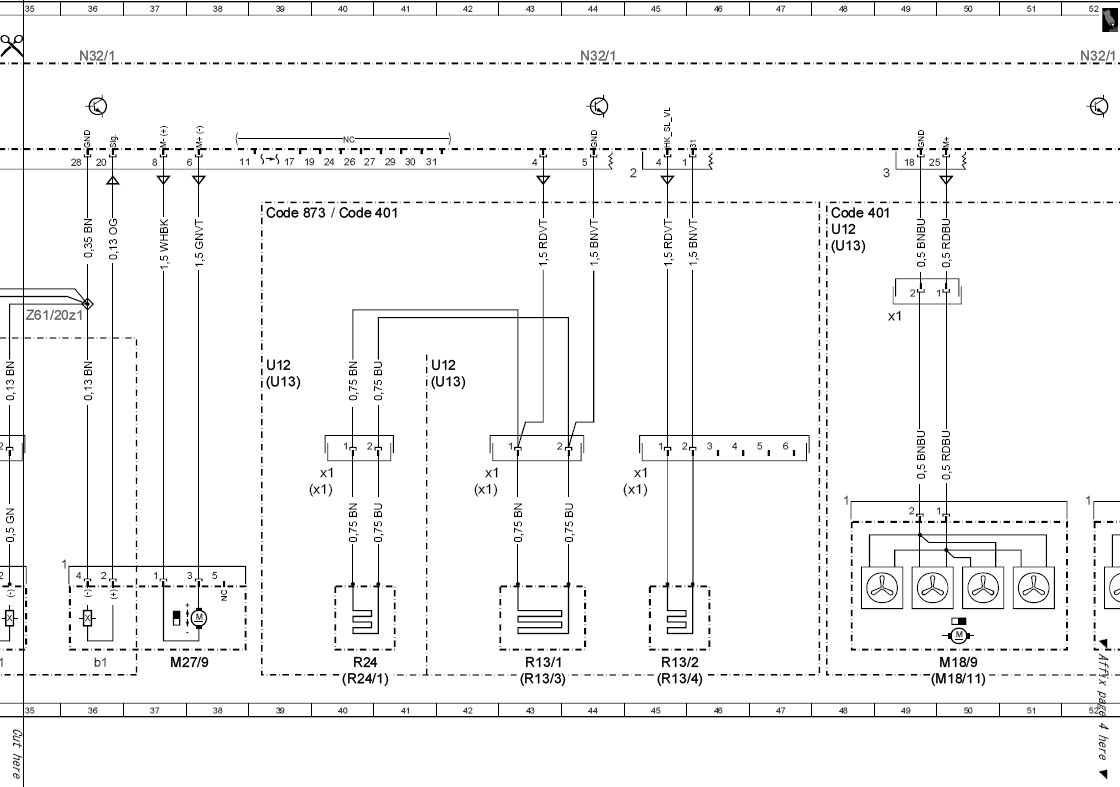

Driver seat control unit |
4A |
| N32/1 |
Driver seat control unit |
12A |
| N32/1 |
Driver seat control unit |
20A |
| N32/1 |
Driver seat control unit |
28A |
| N32/1 |
Driver seat control unit |
36A |
| N32/1 |
Driver seat control unit |
44A |
| N32/1 |
Driver seat control unit |
52A |
| N32/1 |
Driver seat control unit |
60A |
| R13/1 |
Left front seat cushion heater pad |
43L |
| R13/1x1 |
Left front seat surface heater pad electrical connector |
42H |
| R13/2 |
Left front seat backrest heater pad |
45L |
| R13/2x1 |
Left front seat backrest heater pad electrical connector |
45H |
| R13/3 |
Right front seat cushion heater pad |
43L |
| R13/3x1 |
Right front seat cushion heater pad electrical connector |
42H |
| R13/4 |
Right front seat backrest heater pad |
45L |
| R13/4x1 |
Right front seat backrest heater pad electrical connector |
45H |
| R24 |
Adjustable seat cushion length heater pad, left front seat |
40L |
| R24/1 |
Adjustable seat cushion length heater pad, right front seat |
40L |
| R24/1x1 |
Adjustable seat cushion length heater pad electrical connector, right front seat |
40H |
| R24x1 |
Adjustable seat cushion length heater pad electrical connector, left front seat |
40H |
| U12 |
Valid for left-hand drive vehicles |
4D |
| U12 |
Valid for left-hand drive vehicles |
16D |
| U12 |
Valid for left-hand drive vehicles |
39F |
| U12 |
Valid for left-hand drive vehicles |
41F |
| U12 |
Valid for left-hand drive vehicles |
48D |
| U13 |
Valid for right-hand drive vehicles |
4D |
| U13 |
Valid for right-hand drive vehicles |
39F |
| U13 |
Valid for right-hand drive vehicles |
41F |
| U13 |
Valid for right-hand drive vehicles |
48D |
| U13 |
Valid for right-hand drive vehicles |
16D |
| W12/1 |
Right center console ground point |
4H |
| W52/5 |
Left center longitudinal member ground point |
4G |
| X18/35 |
Cockpit wiring harness and frame floor assembly electrical connector |
14E |
| X18/35 |
Cockpit wiring harness and frame floor assembly electrical connector |
8E |
| X18/35 |
Cockpit wiring harness and frame floor assembly electrical connector |
10E |
| X30/33 |
Right interior CAN (CAN B) potential distributor electrical connector |
17L |
| Z102z1 |
Steering column adjustment motor connector sleeve |
12G |
| Z137/1z1 |
Connector sleeve, heater LIN |
21E |
| Z61/20z1 |
Left front seat height adjustment Hall sensor ground line connector sleeve |
35E |
| Z61/23z1 |
Right rear seat heater ground line connector sleeve |
58E |
