| A0 |
Use of wiring diagrams |
186L |
| A45 |
Fanfare horns and airbag clock spring contact |
161J |
| A53 |
Left sidebag sensor |
23L |
| A54 |
Right sidebag sensor |
74L |

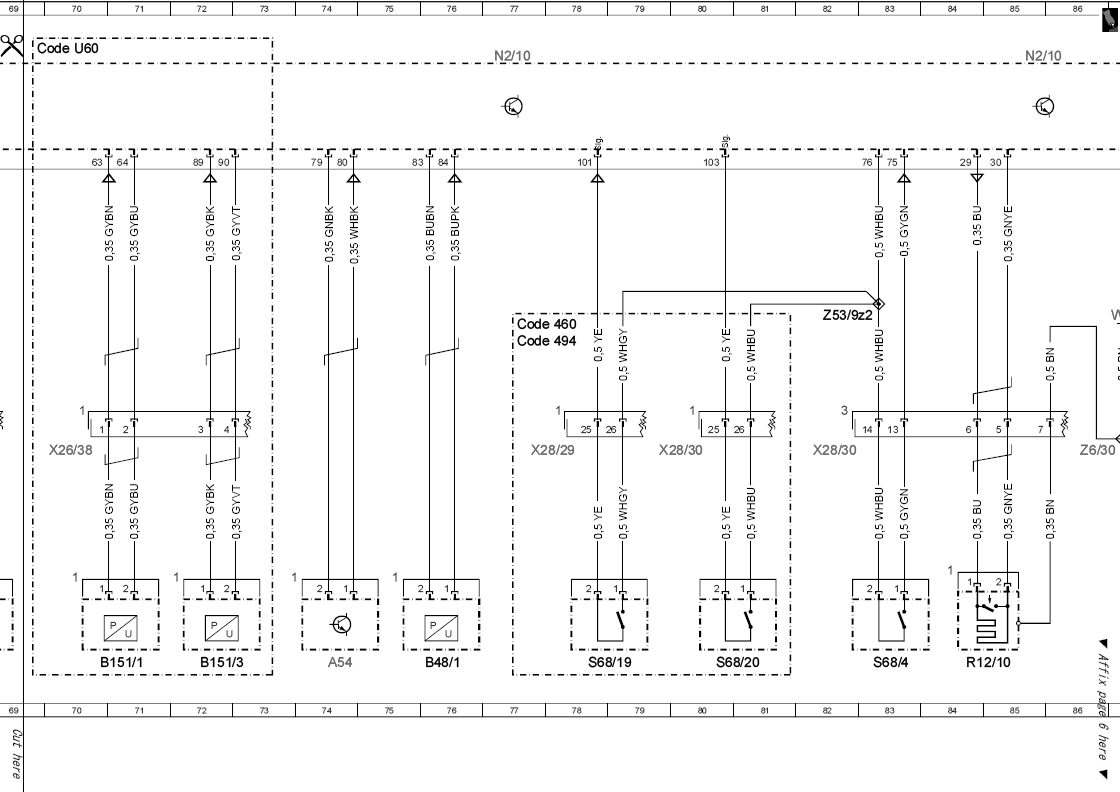

| B151/1 |
Left front bumper pedestrian protection sensor |
71L |
| B151/3 |
Right front bumper pedestrian protection sensor |
72L |

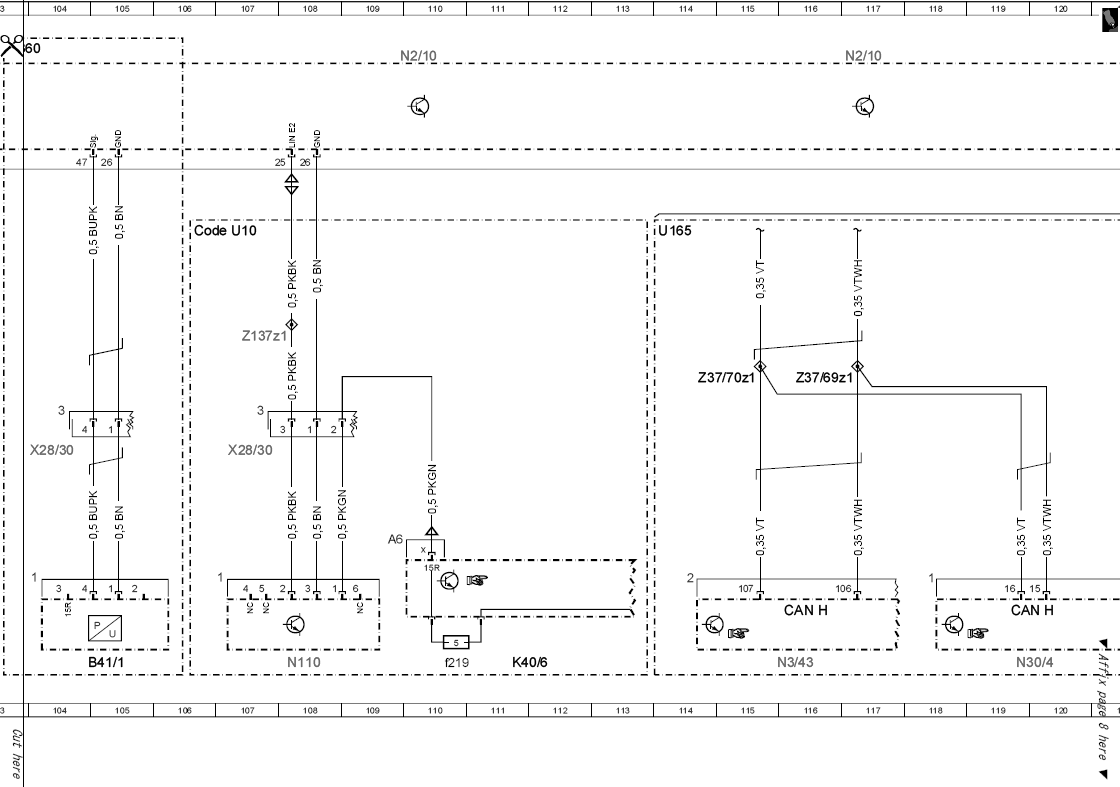

| B41/1 |
Front passenger seat occupied recognition |
105L |
| B48/1 |
Left frontal acceleration sensor |
76L |
| B48/10 |
Right rear door pressure sensor |
64L |
| B48/2 |
Right frontal acceleration sensor |
58L |
| B48/7 |
Left front door pressure sensor |
67L |
| B48/8 |
Right front door pressure sensor |
68L |
| B48/9 |
Left rear door pressure sensor |
63L |
| CAN H |
Vehicle dynamics CAN |
116K |
| CAN H |
Vehicle dynamics CAN |
119K |
| CAN H |
Vehicle dynamics CAN |
124K |

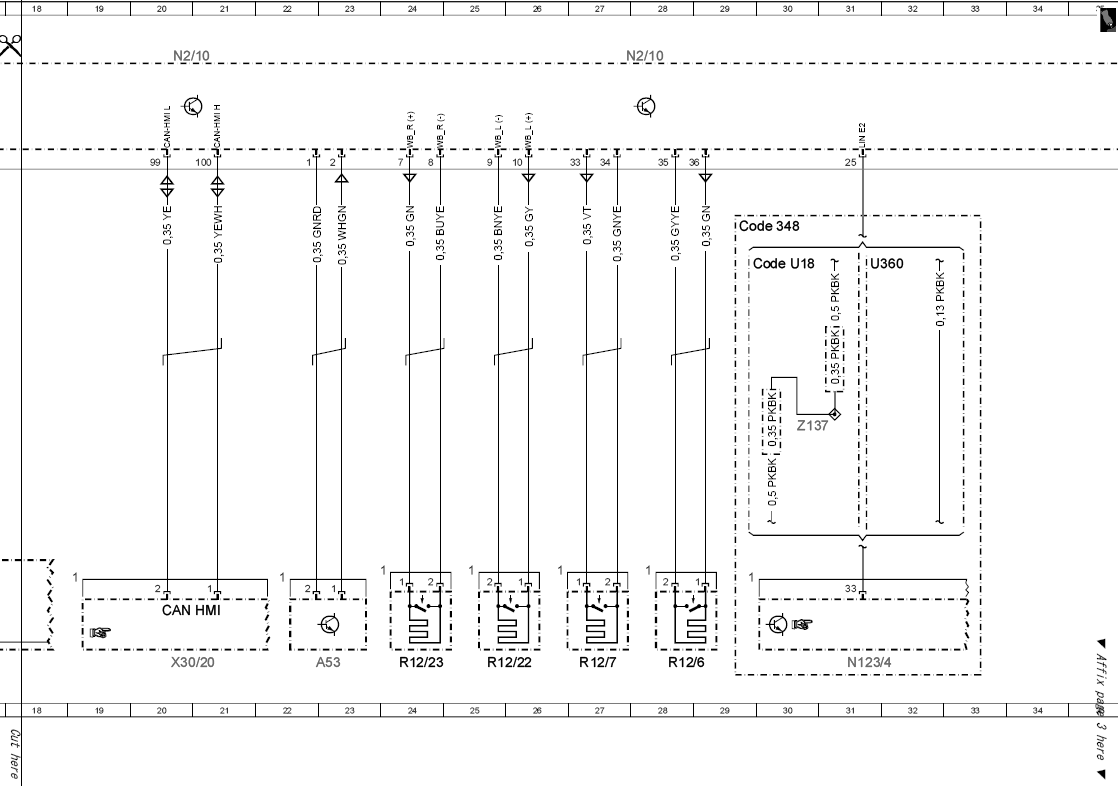

| CAN HMI |
User interface CAN |
20K |

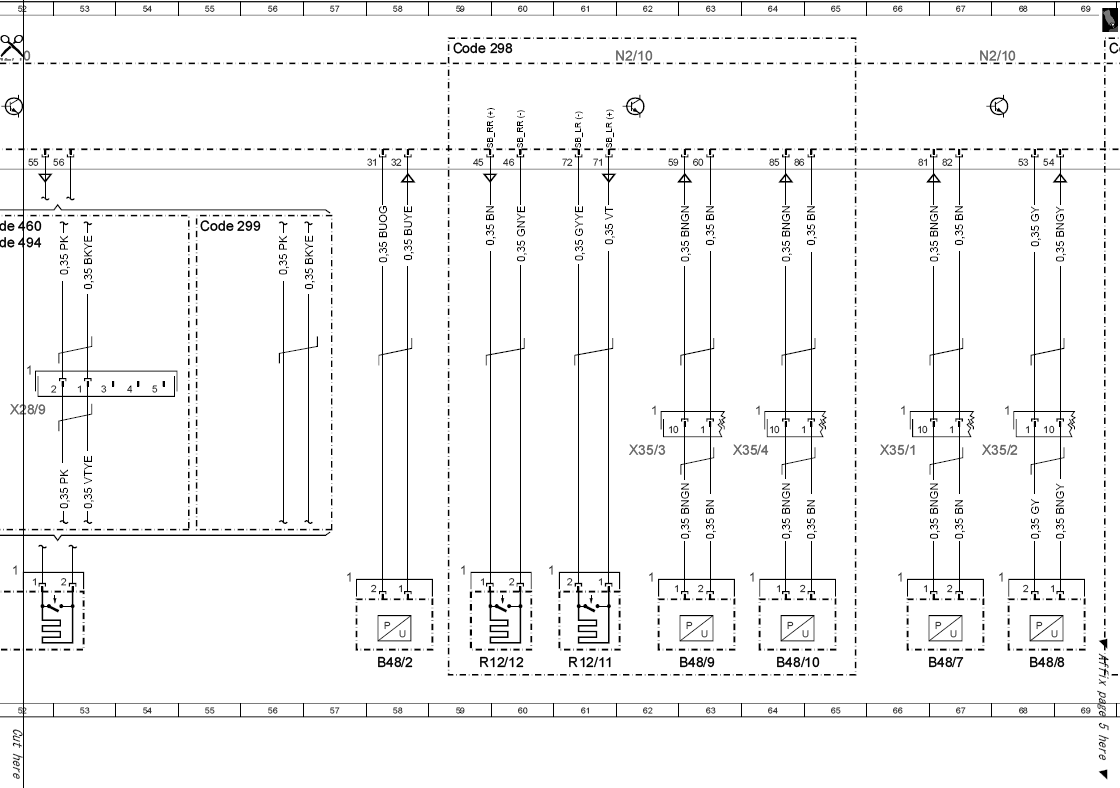

| Code 298 |
Rear safety package |
59A |
| Code 299 |
PRE-SAFE® |
43D |
| Code 299 |
PRE-SAFE® |
37D |
| Code 299 |
PRE-SAFE® |
55D |
| Code 348 |
Emergency call/assistance system |
29D |
| Code 425 |
6-speed manual transmission |
175D |
| Code 460 |
Canada version |
40D |
| Code 460 |
Canada version |
43D |
| Code 460 |
Canada version |
51D |
| Code 460 |
Canada version |
77F |
| Code 460 |
Canada version |
150D |
| Code 460 |
Canada version |
168D |
| Code 494 |
USA version |
43D |
| Code 494 |
USA version |
40D |
| Code 494 |
USA version |
51D |
| Code 494 |
USA version |
77F |
| Code 494 |
USA version |
150D |
| Code 494 |
USA version |
168D |
| Code ME04 |
Hybrid drive 20 KW VARIANT |
1D |
| Code ME05 |
HYBRID DRIVE 80 KW VARIANT (INCLUDING PLUGIN) |
5D |
| Code ME06 |
Hybrid drive 50 KW VARIANT (INCLUDING PLUGIN) |
1D |
| Code U10 |
SBE - Seat occupancy recognition |
106D |
| Code U18 |
Automatic child seat recognition ACSR |
29E |
| Code U60 |
Pedestrian protection |
69A |
| Code U60 |
Pedestrian protection |
155D |
| F1/3 |
Right A-pillar fuse box |
16L |
| F1/3f316 |
Fuse 316 |
14K |
| F108 |
Battery clamp fuse |
102L |
| F32/3 |
Engine compartment prefuse box |
97L |

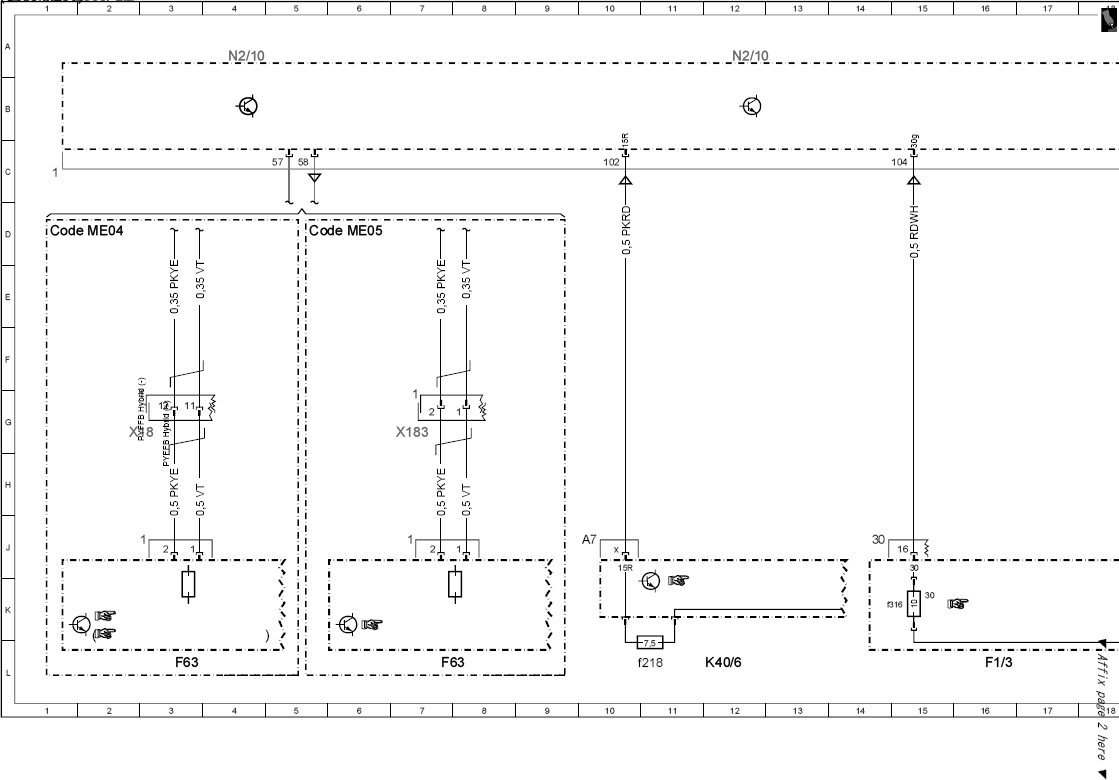

| F63 |
Pyrofuse |
3L |
| F63 |
Pyrofuse |
7L |
| G1 |
On-board electrical system battery |
100L |
| K40/6 |
Left fuse and relay module |
12L |
| K40/6 |
Left fuse and relay module |
111L |
| K40/6f218 |
Fuse 218 |
11L |
| K40/6f219 |
Fuse 219 |
110L |

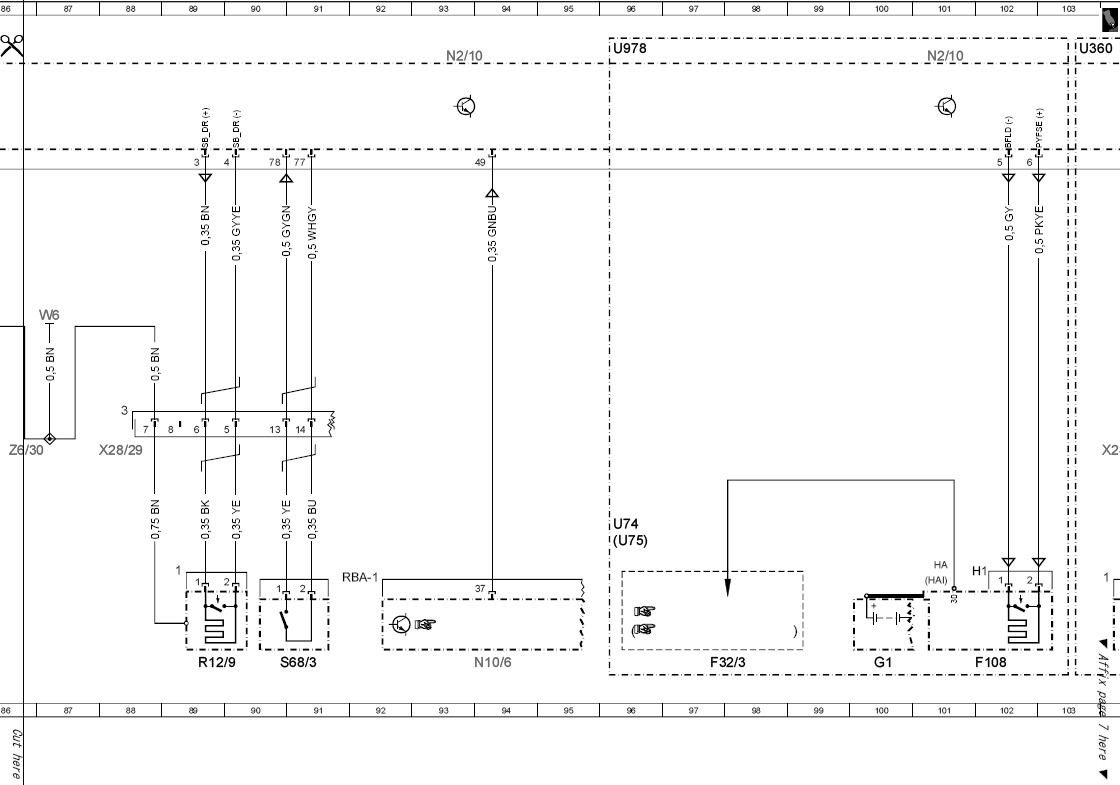

| N10/6 |
Front SAM control unit |
94L |
| N110 |
Weight Sensing System (WSS) control unit |
108L |
| N123/4 |
Emergency call system control unit |
31L |
| N2/10 |
Supplemental restraint system control unit |
93A |
| N2/10 |
Supplemental restraint system control unit |
4A |
| N2/10 |
Supplemental restraint system control unit |
4A |
| N2/10 |
Supplemental restraint system control unit |
20A |
| N2/10 |
Supplemental restraint system control unit |
12A |
| N2/10 |
Supplemental restraint system control unit |
28A |
| N2/10 |
Supplemental restraint system control unit |
36A |
| N2/10 |
Supplemental restraint system control unit |
44A |
| N2/10 |
Supplemental restraint system control unit |
52A |
| N2/10 |
Supplemental restraint system control unit |
62A |
| N2/10 |
Supplemental restraint system control unit |
67A |
| N2/10 |
Supplemental restraint system control unit |
77A |
| N2/10 |
Supplemental restraint system control unit |
85A |
| N2/10 |
Supplemental restraint system control unit |
101A |
| N2/10 |
Supplemental restraint system control unit |
110A |
| N2/10 |
Supplemental restraint system control unit |
117A |
| N2/10 |
Supplemental restraint system control unit |
126A |
| N2/10 |
Supplemental restraint system control unit |
133A |
| N2/10 |
Supplemental restraint system control unit |
142A |
| N2/10 |
Supplemental restraint system control unit |
150A |
| N2/10 |
Supplemental restraint system control unit |
158A |
| N2/10 |
Supplemental restraint system control unit |
166A |
| N26/5 |
Electric steering lock control unit |
177L |
| N3/10 |
ME-SFI [ME] control unit |
136L |
| N3/10 |
ME-SFI [ME] control unit |
132L |
| N3/43 |
AMG suspension control unit |
116L |
| N3/9 |
CDI control unit |
128L |
| N3/9 |
CDI control unit |
148L |
| N3/9 |
CDI control unit |
144L |
| N3/9 |
CDI control unit |
140L |

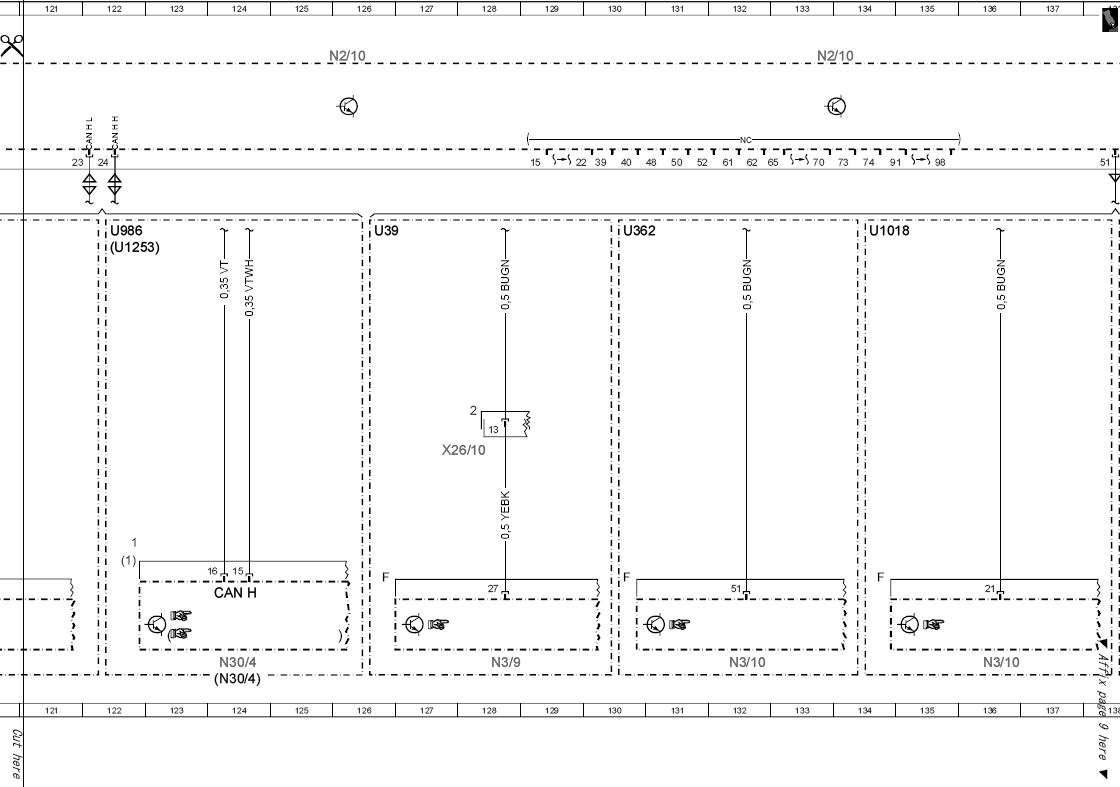

| N30/4 |
Electronic Stability Program control unit |
119L |
| N30/4 |
Electronic Stability Program control unit |
124L |
| N30/4 |
Electronic Stability Program control unit |
124L |
| N80 |
Steering column module control unit |
161L |

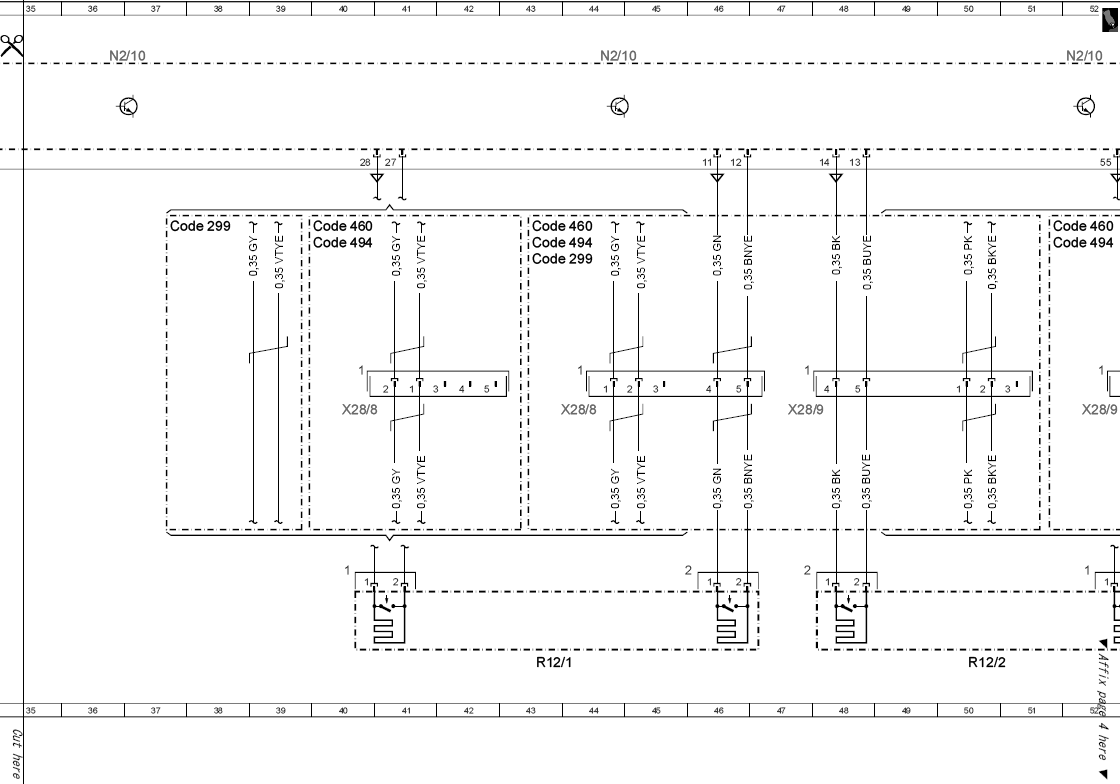

| R12/1 |
Driver ETR [GUS] squib |
43L |
| R12/10 |
Front passenger sidebag squib |
84L |
| R12/11 |
Left rear sidebag squib |
61L |
| R12/12 |
Right rear sidebag squib |
60L |
| R12/13 |
Driver airbag squib 1 |
165L |
| R12/14 |
Driver airbag squib 2 |
164L |
| R12/2 |
Front passenger ETR [GUS] squib |
50L |
| R12/22 |
Left windowbag squib |
25L |
| R12/23 |
Right windowbag squib |
24L |
| R12/24 |
Front passenger kneebag squib |
171L |
| R12/25 |
Driver kneebag squib |
167L |

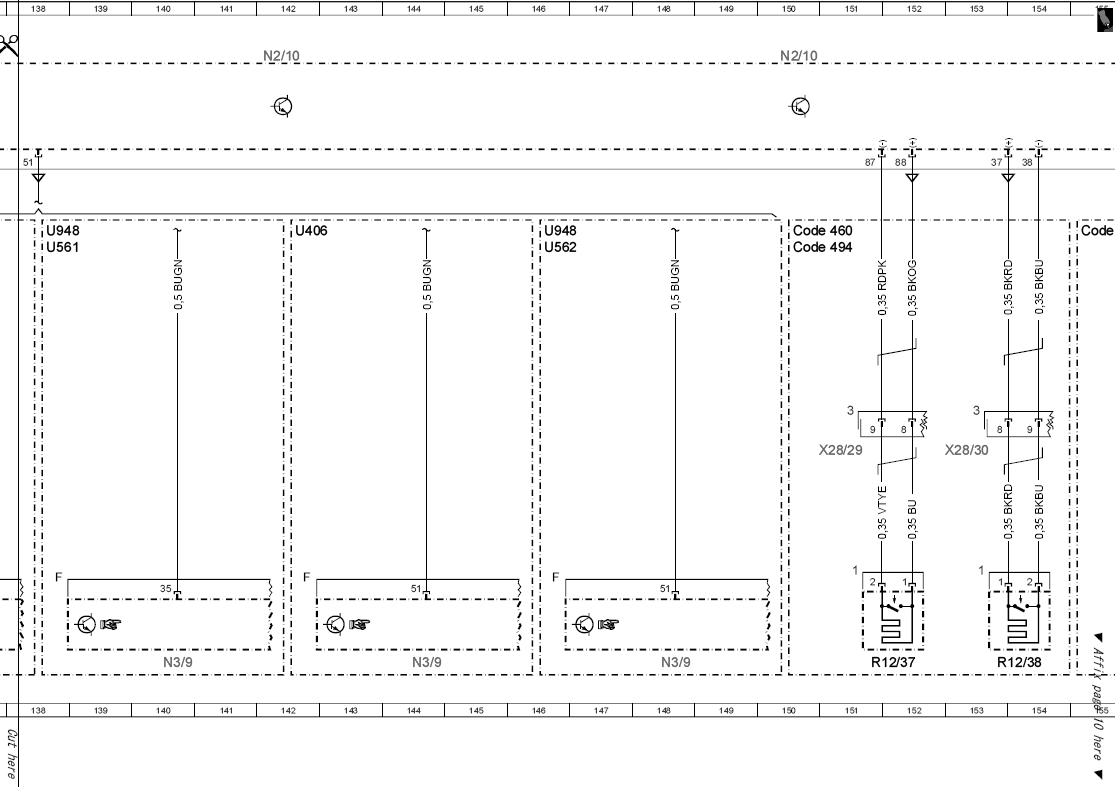

| R12/37 |
Driver-side anchor fitting tensioner squib |
151L |
| R12/38 |
Front passenger anchor fitting tensioner squib |
154L |

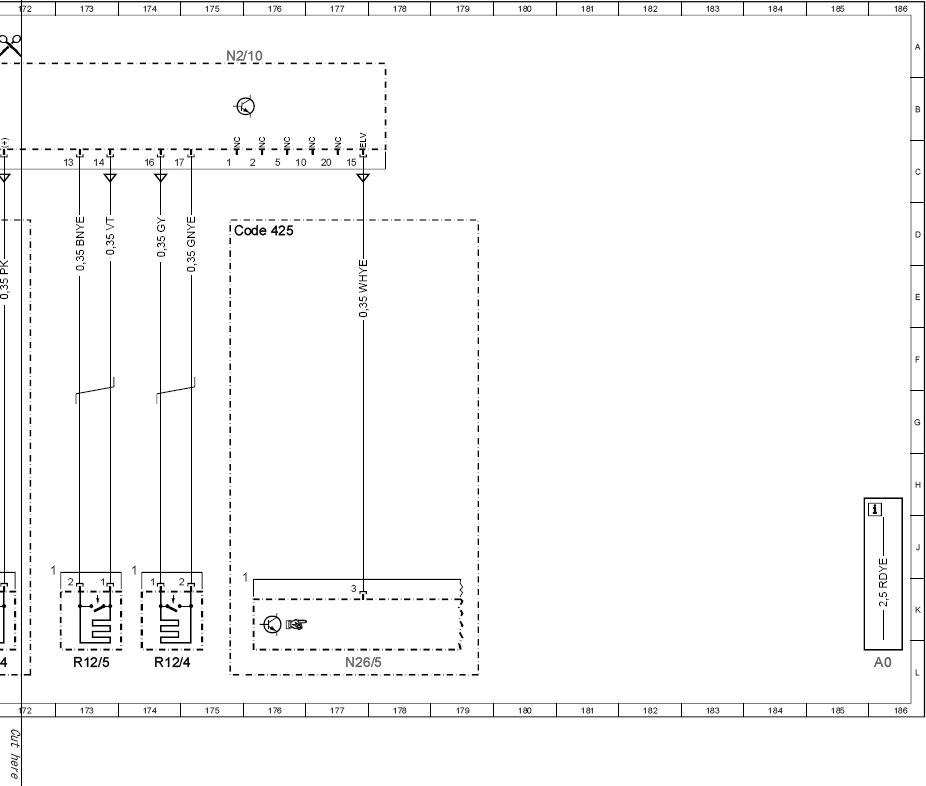

| R12/4 |
Front passenger airbag squib 1 |
174L |
| R12/44 |
Front passenger airbag bleed valve squib |
169L |
| R12/5 |
Front passenger airbag squib 2 |
173L |
| R12/6 |
Left rear emergency tensioning retractor squib |
28L |
| R12/7 |
Right rear emergency tensioning retractor squib |
27L |
| R12/9 |
Driver sidebag squib |
89L |
| S68/19 |
Driver seat position detection switch |
78L |
| S68/20 |
Front passenger seat position detection switch |
80L |
| S68/3 |
Driver seat belt buckle switch |
91L |
| S68/4 |
Front passenger seat belt buckle switch |
83L |
| U1018 |
Valid for gasoline engine 276 |
134D |
| U1253 |
Valid for model 253 |
122D |
| U165 |
Valid for AMG |
114D |
| U2053 |
Valid for model 205.3 |
170E |
| U2054 |
Valid for model 205.4 |
170E |
| U360 |
Valid without code (U18) Automatic child seat recognition ACSR and without code (U10) SBE - Seat occupancy recognition |
31E |
| U360 |
Valid without code (U18) Automatic child seat recognition ACSR and without code (U10) SBE - Seat occupancy recognition |
103A |
| U362 |
Valid for gasoline engine 274 |
130D |
| U39 |
Valid for gasoline engine 177 |
126D |
| U406 |
Valid for diesel engine 626 |
142D |
| U561 |
Valid for Delphi system |
138D |
| U562 |
Valid for Bosch system |
146D |
| U74 |
Valid for diesel engines |
96J |
| U75 |
Valid for gasoline engines |
96J |
| U948 |
Valid for diesel engine 651 |
138D |
| U948 |
Valid for diesel engine 651 |
146D |
| U978 |
Valid for hybrid drive |
96A |
| U986 |
Not valid for AMG |
122D |
| W6 |
Left wheel arch trunk ground point |
87E |
| X18 |
Cockpit wiring harness and frame floor assembly electrical connector |
3G |
| X183 |
Pyrotechnical separator electrical connector |
7G |
| X26/10 |
Vehicle interior/engine electrical connector |
128H |
| X26/38 |
Front bumper and frame wiring harness electrical connector |
70H |
| X28/29 |
Driver airbag electrical connector |
78H |
| X28/29 |
Driver airbag electrical connector |
88H |
| X28/29 |
Driver airbag electrical connector |
151H |
| X28/30 |
Front passenger airbag electrical connector |
80H |
| X28/30 |
Front passenger airbag electrical connector |
82H |
| X28/30 |
Front passenger airbag electrical connector |
107H |
| X28/30 |
Front passenger airbag electrical connector |
104H |
| X28/30 |
Front passenger airbag electrical connector |
153H |
| X28/8 |
Left emergency tensioning retractor electrical connector |
40G |
| X28/8 |
Left emergency tensioning retractor electrical connector |
44G |
| X28/9 |
Right emergency tensioning retractor electrical connector |
47G |
| X28/9 |
Right emergency tensioning retractor electrical connector |
52G |
| X30/20 |
User interface CAN (CAN HMI) potential distributor electrical connector |
20L |
| X35/1 |
Left front door electrical connector |
66H |
| X35/2 |
Right front door electrical connector |
68H |
| X35/3 |
Left rear door electrical connector |
62H |
| X35/4 |
Right rear door electrical connector |
64H |

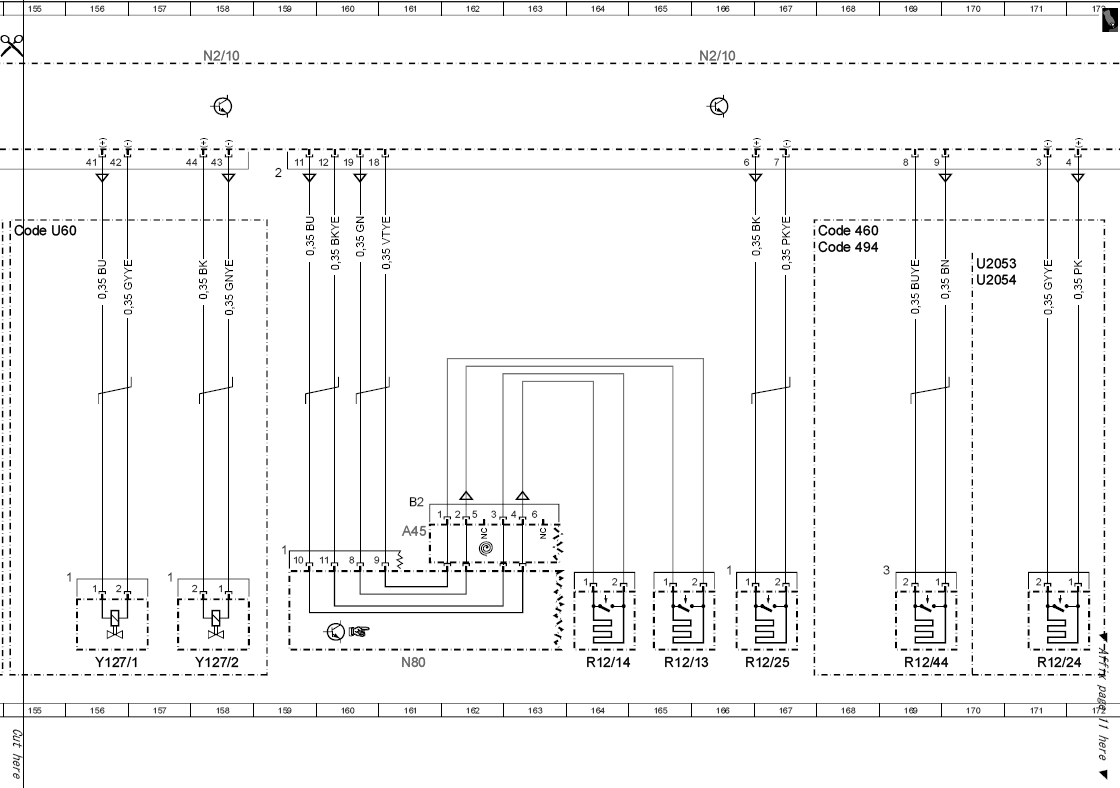

| Y127/1 |
Left rear engine hood lifter |
156L |
| Y127/2 |
Right rear engine hood lifter |
158L |
| Z137 |
Seat occupancy LIN connector sleeve |
30G |
| Z137z1 |
Left door LIN connector sleeve |
107F |
| Z37/69z1 |
Vehicle dynamics CAN (high) connector sleeve |
116F |
| Z37/70z1 |
Vehicle dynamics CAN (low) connector sleeve |
115F |
| Z53/9z2 |
Circuit 31 vehicle interior airbag connector sleeve |
82E |
| Z6/30 |
Circuit 31 connector sleeve |
86H |
