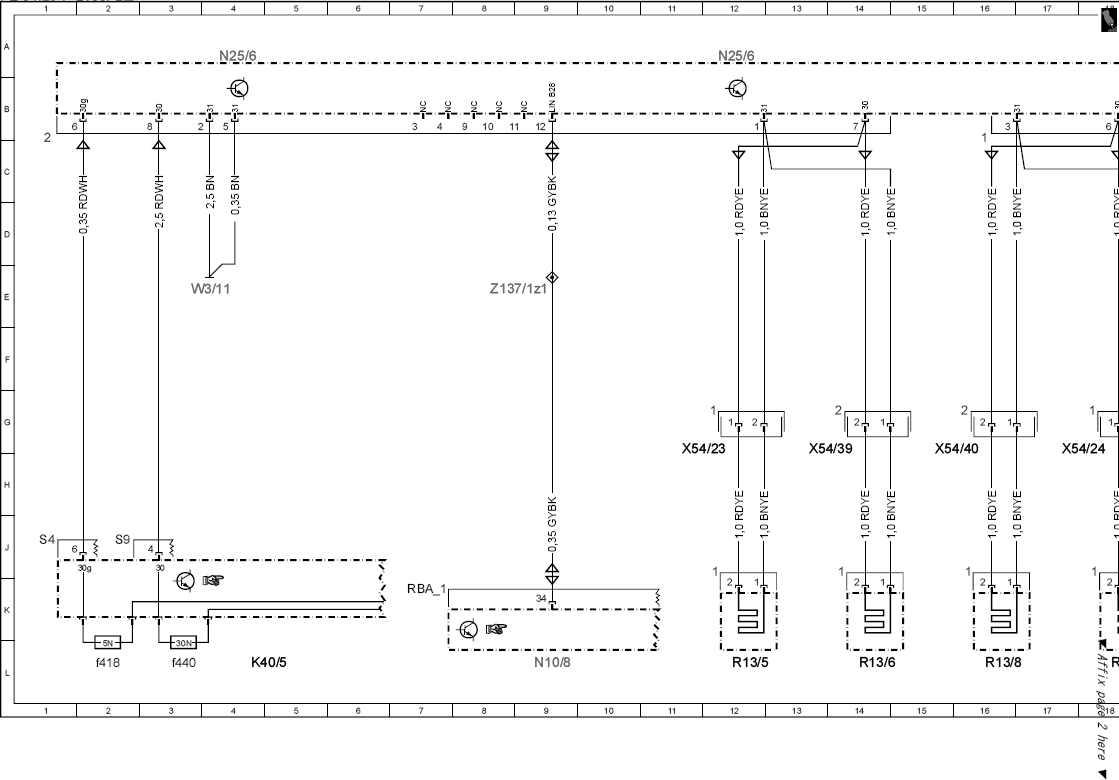

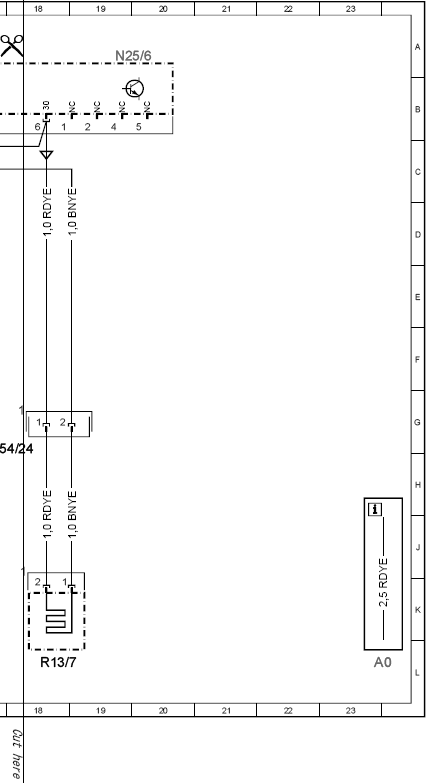

| A0 |
Use of wiring diagrams |
23L |
| K40/5 |
Rear fuse and relay module |
4L |
| K40/5f418 |
Fuse 418 |
2L |
| K40/5f440 |
Fuse 440 |
3L |
| N10/8 |
Rear SAM control unit |
9L |
| N25/6 |
Rear seat heaters control unit |
4A |
| N25/6 |
Rear seat heaters control unit |
12A |
| N25/6 |
Rear seat heaters control unit |
19A |
| R13/5 |
Left rear seat sitting surface heated cushion |
12L |
| R13/6 |
Left rear backrest heated cushion |
14L |
| R13/7 |
Right rear seat sitting surface heated cushion |
18L |
| R13/8 |
Right rear backrest heater pad |
16L |
| W3/11 |
Left rear wheel well ground point |
3E |
| X54/23 |
Left rear seat sitting surface heater pad electrical connector |
12H |
| X54/24 |
Right rear seat sitting surface heater pad electrical connector |
18H |
| X54/39 |
Left rear backrest heater pad electrical connector |
14H |
| X54/40 |
Right rear backrest heater pad electrical connector |
16H |
| Z137/1z1 |
Connector sleeve, heater LIN |
9E |
