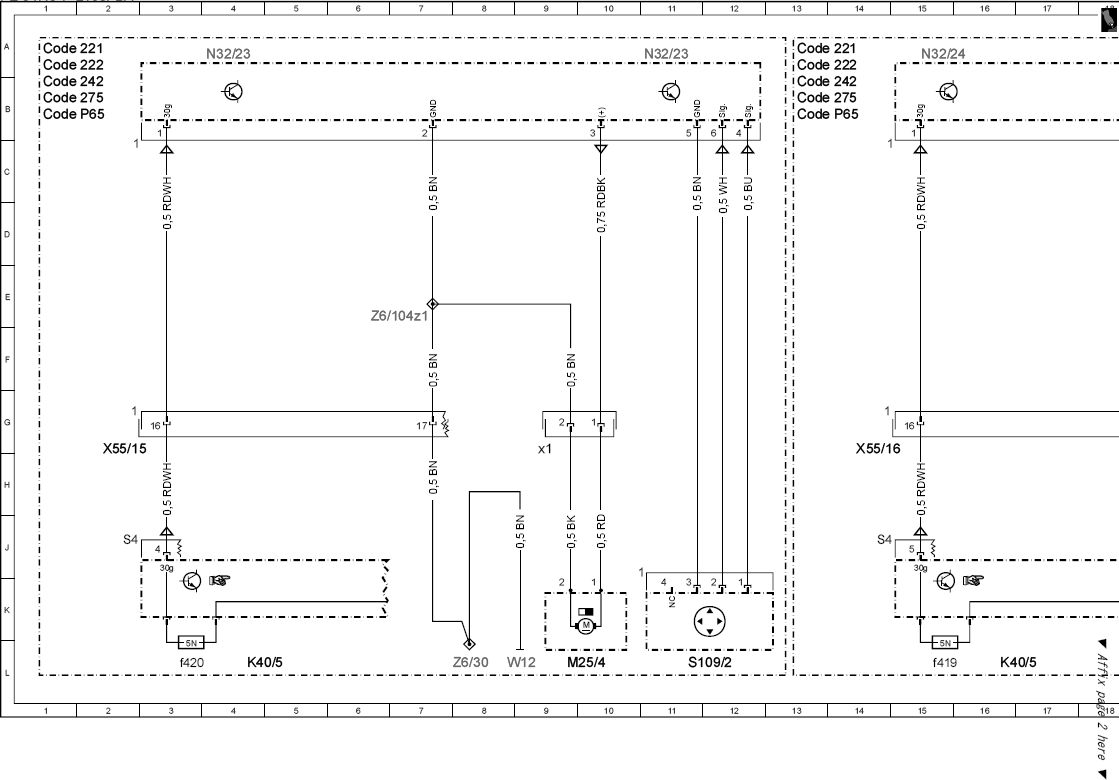

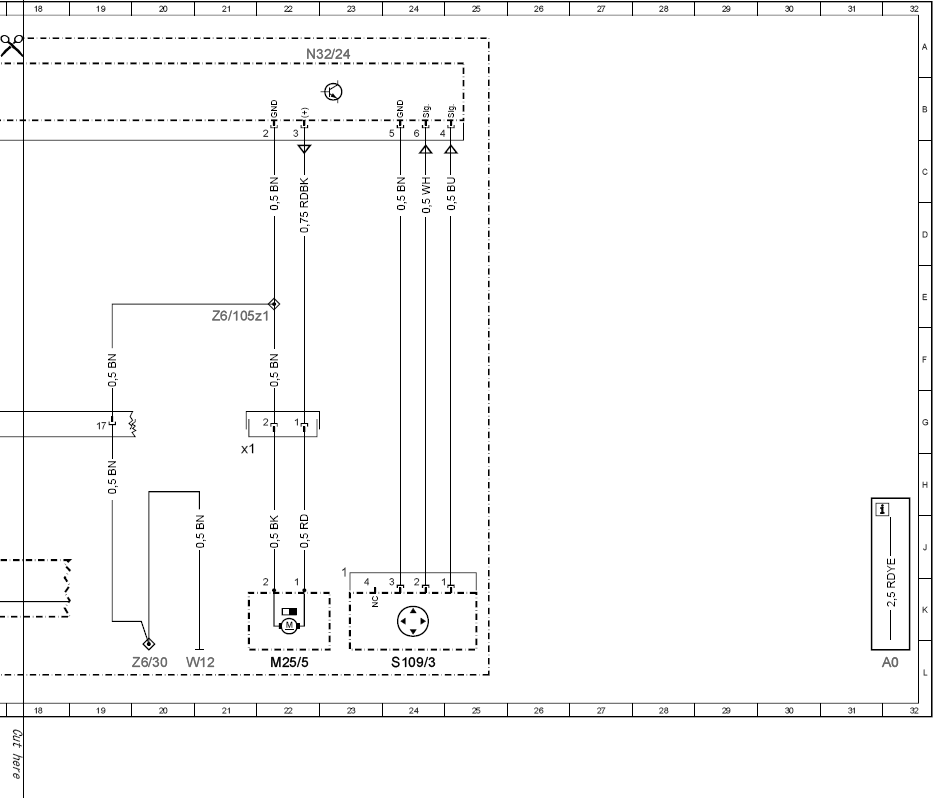

| A0 |
Use of wiring diagrams |
32L |
| Code 221 |
Fully electric driver seat adjustment without memory without electric head restraint adjustment |
1A |
| Code 221 |
Fully electric driver seat adjustment without memory without electric head restraint adjustment |
13A |
| Code 222 |
Electrically adjustable right front seat |
1A |
| Code 222 |
Electrically adjustable right front seat |
13A |
| Code 242 |
All-electric front passenger seat with memory (right) |
1B |
| Code 242 |
All-electric front passenger seat with memory (right) |
13B |
| Code 275 |
Memory package |
1B |
| Code 275 |
Memory package |
13B |
| Code P65 |
Seating comfort package |
1B |
| Code P65 |
Seating comfort package |
13B |
| K40/5 |
Rear fuse and relay module |
16L |
| K40/5 |
Rear fuse and relay module |
4L |
| K40/5f419 |
Fuse 419 |
15L |
| K40/5f420 |
Fuse 420 |
3L |
| M25/4 |
Driver seat lumbar support pneumatic pump |
9L |
| M25/4x1 |
Driver seat lumbar support pneumatic pump electrical connector |
9H |
| M25/5 |
Front passenger seat lumbar support pneumatic pump |
22L |
| M25/5x1 |
Front passenger seat lumbar support pneumatic pump electrical connector |
21H |
| N32/23 |
Driver seat lumbar support adjustment control unit |
4A |
| N32/23 |
Driver seat lumbar support adjustment control unit |
11A |
| N32/24 |
Front passenger seat lumbar support adjustment control unit |
15A |
| N32/24 |
Front passenger seat lumbar support adjustment control unit |
22A |
| S109/2 |
Driver seat lumbar support adjustment switch |
11L |
| S109/3 |
Front passenger seat lumbar support adjustment switch |
24L |
| W12 |
Ground point (center console) |
9L |
| W12 |
Ground point (center console) |
21L |
| X55/15 |
Left seat separation point |
2H |
| X55/16 |
Right seat separation point |
14H |
| Z6/104z1 |
Driver seat lumbar support ground line connector sleeve |
7E |
| Z6/105z1 |
Front passenger seat lumbar support ground line connector sleeve |
21E |
| Z6/30 |
Circuit 31 connector sleeve |
8L |
| Z6/30 |
Circuit 31 connector sleeve |
20L |
