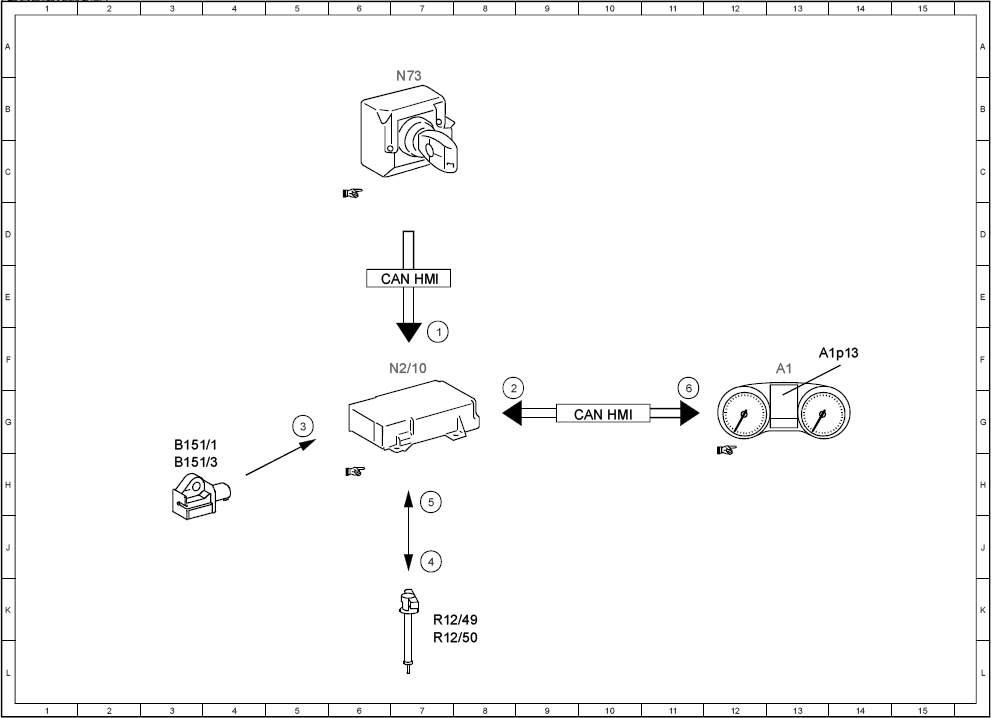

| 1 |
Circuit 15, status |
7F |
| 2 |
Vehicle speed, signal |
8G |
| 3 |
Pedestrian protection sensor, status |
5G |
| 4 |
Squib, actuation |
7J |
| 5 |
Active engine hood squib, status |
7H |
| 6 |
Instrument cluster message, request |
11G |
| A1 |
Instrument cluster |
13F |
| A1p13 |
Multifunction display |
14F |
| B151/1 |
Left front bumper pedestrian protection sensor |
3G |
| B151/3 |
Right front bumper pedestrian protection sensor |
3H |
| CAN HMI |
User interface CAN |
7E |
| CAN HMI |
User interface CAN |
10G |
| N2/10 |
Supplemental restraint system control unit |
6F |
| N73 |
Electronic ignition switch control unit |
7B |
| R12/49 |
Left active engine hood squib |
7K |
| R12/50 |
Right active engine hood squib |
7L |
