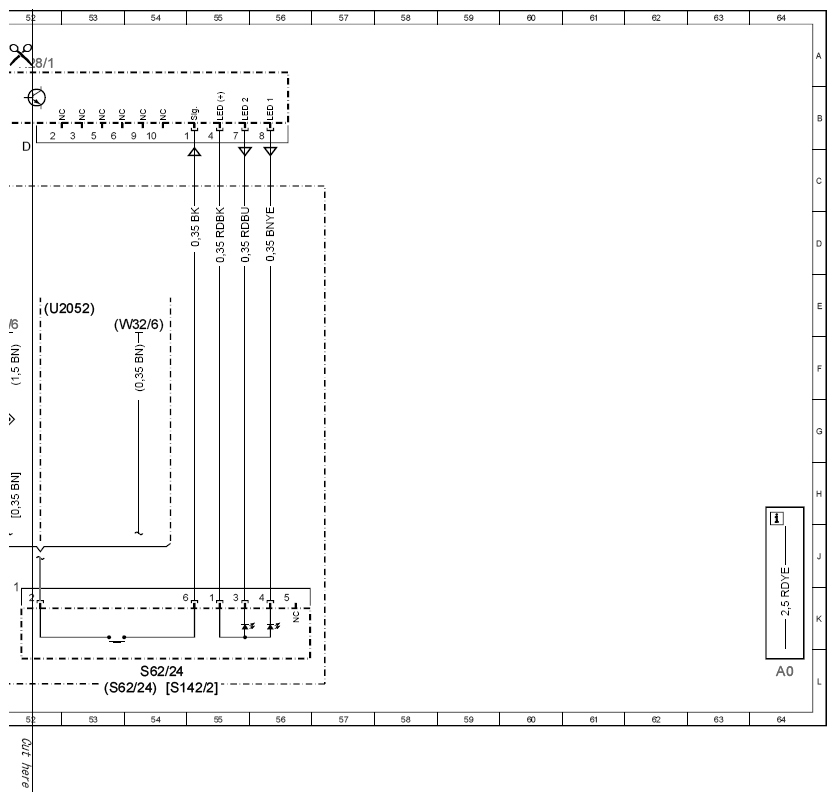

| A0 |
Use of wiring diagrams |
64L |

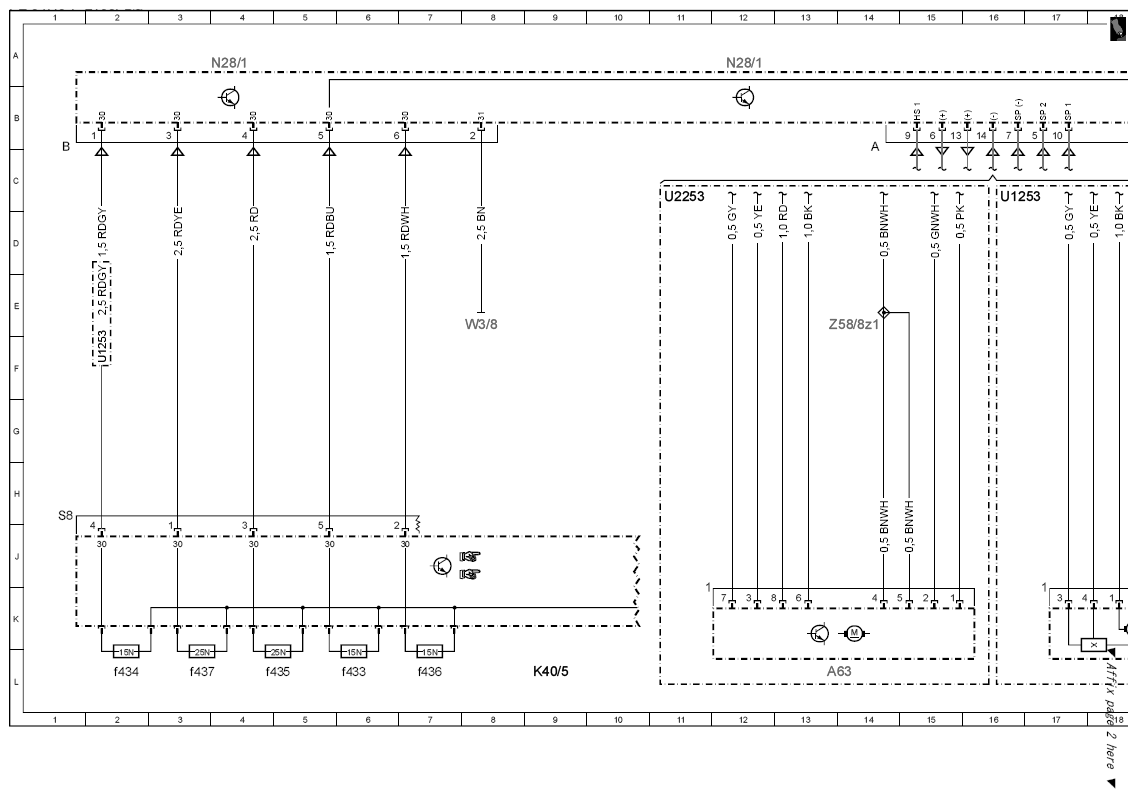

| A63 |
Trailer hitch release |
13L |

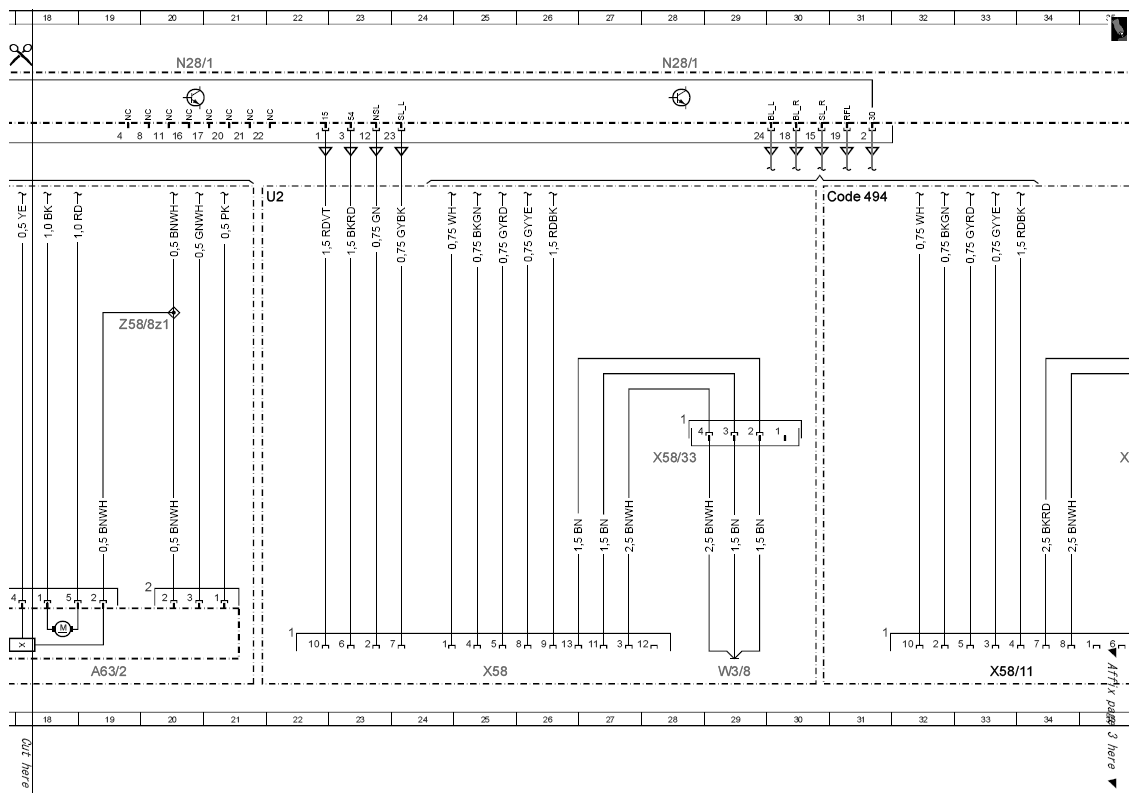

| A63/2 |
Fully electric trailer hitch swivel unit |
19L |
| Code 494 |
USA version |
30C |

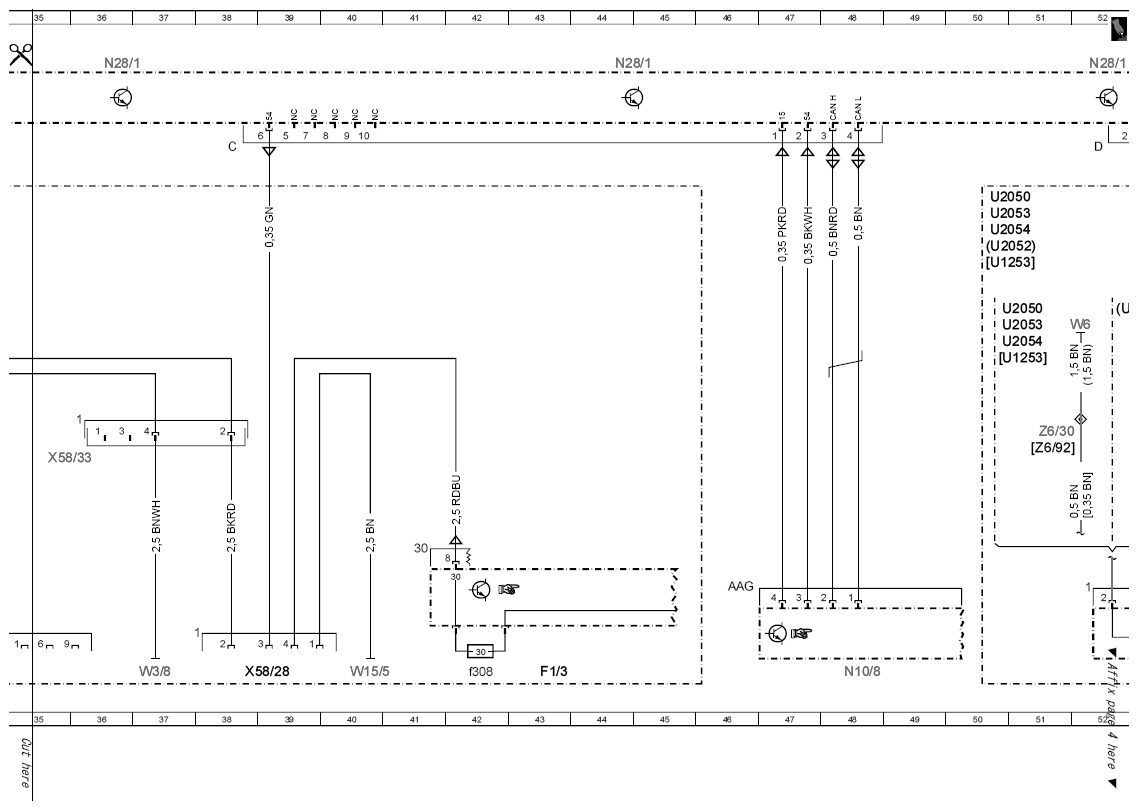

| F1/3 |
Right A-pillar fuse box |
43L |
| F1/3f308 |
Fuse 308 |
42L |
| K40/5 |
Rear fuse and relay module |
9L |
| K40/5f433 |
Fuse 433 |
6L |
| K40/5f434 |
Fuse 434 |
2L |
| K40/5f435 |
Fuse 435 |
4L |
| K40/5f436 |
Fuse 436 |
7L |
| K40/5f437 |
Fuse 437 |
3L |
| N10/8 |
Rear SAM control unit |
48L |
| N28/1 |
Trailer recognition control unit |
12A |
| N28/1 |
Trailer recognition control unit |
4A |
| N28/1 |
Trailer recognition control unit |
20A |
| N28/1 |
Trailer recognition control unit |
28A |
| N28/1 |
Trailer recognition control unit |
52A |
| N28/1 |
Trailer recognition control unit |
36A |
| N28/1 |
Trailer recognition control unit |
44A |
| S142/2 |
Trunk lid/liftgate fully electric trailer hitch switch |
54L |
| S62/24 |
Trailer hitch release switch |
54L |
| S62/24 |
Trailer hitch release switch |
53L |
| U1253 |
Valid for model 253 |
50D |
| U1253 |
Valid for model 253 |
50F |
| U1253 |
Valid for model 253 |
16C |
| U1253 |
Valid for model 253 |
2F |
| U2 |
Not valid for USA |
22C |
| U2050 |
Valid for model 205.0 |
50C |
| U2050 |
Valid for model 205.0 |
50E |
| U2052 |
Valid for model 205.2 |
50D |
| U2052 |
Valid for model 205.2 |
52E |
| U2053 |
Valid for model 205.3 |
50D |
| U2053 |
Valid for model 205.3 |
50E |
| U2054 |
Valid for model 205.4 |
50D |
| U2054 |
Valid for model 205.4 |
50F |
| U2253 |
Not valid for model series 253 |
11C |
| W15/5 |
Left front footwell ground point |
40L |
| W3/8 |
Right rear wheel well ground point |
8E |
| W3/8 |
Right rear wheel well ground point |
29L |
| W3/8 |
Right rear wheel well ground point |
37L |
| W32/6 |
Right liftgate ground connection |
54E |
| W6 |
Left wheel arch trunk ground point |
52E |
| X58 |
Trailer socket |
25L |
| X58/11 |
Trailer socket (7-pin) |
33L |
| X58/28 |
Electric Brake Control electrical connector |
38L |
| X58/33 |
Vehicle interior/trailer hitch electrical connector |
28H |
| X58/33 |
Vehicle interior/trailer hitch electrical connector |
36H |
| Z58/8z1 |
Trailer hitch circuit 31 connector sleeve |
14E |
| Z58/8z1 |
Trailer hitch circuit 31 connector sleeve |
20E |
| Z6/30 |
Circuit 31 connector sleeve |
51G |
| Z6/92 |
Trunk lid ground connection connector sleeve |
51G |
