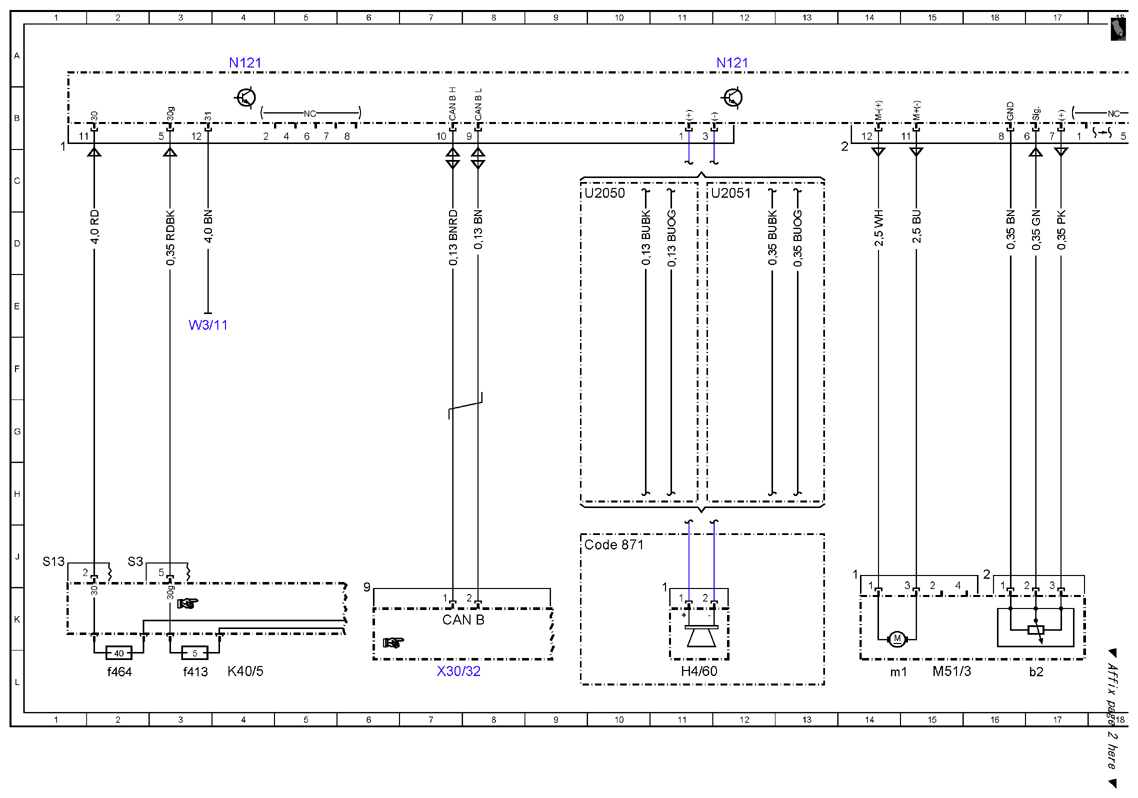

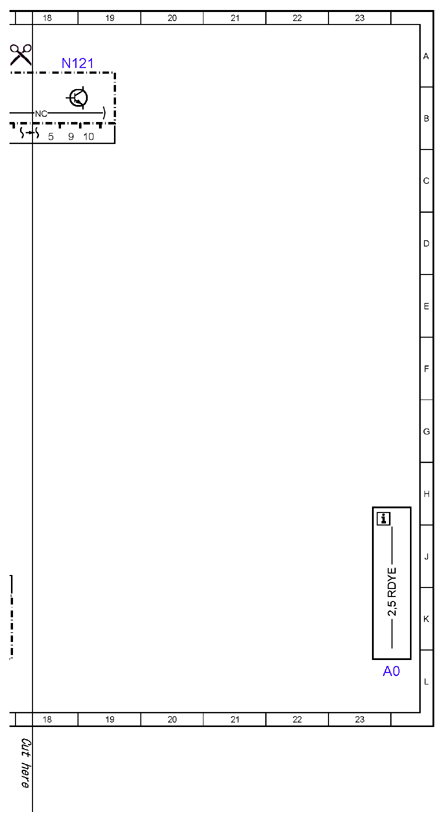

| A0 |
Use of wiring diagrams |
23L |
| CAN B |
Interior CAN |
7K |
| Code 871 |
Sensor system for trunk lid opening/closing |
9J |
| H4/60 |
Trunk lid/liftgate control warning buzzer |
11L |
| K40/5 |
Rear fuse and relay module |
4L |
| K40/5f413 |
Fuse 413 |
3L |
| K40/5f464 |
Fuse 464 |
2L |
| M51/3 |
Trunk lid/liftgate control drive unit |
15L |
| M51/3b2 |
Trunk lid/liftgate control position sensor |
17L |
| M51/3m1 |
Trunk lid/liftgate control electric motor |
14L |
| N121 |
Trunk lid control control unit |
4A |
| N121 |
Trunk lid control control unit |
12A |
| N121 |
Trunk lid control control unit |
18A |
| U2050 |
Valid for model 205.0 |
9C |
| U2051 |
Valid for model 205.1 |
11C |
| W3/11 |
Left rear wheel well ground point |
3E |
| X30/32 |
Left interior CAN (CAN B) potential distributor electrical connector |
7L |
