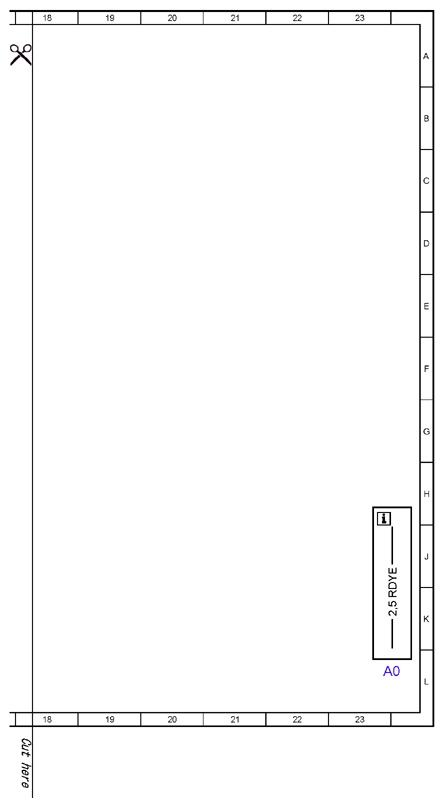

| A0 |
Use of wiring diagrams |
23L |
| CAN B |
Interior CAN |
6K |
| H4/60 |
Trunk lid/liftgate control warning buzzer |
9L |
| K40/5 |
Rear fuse and relay module |
3L |
| K40/5f464 |
Fuse 464 |
2L |
| M51/3 |
Trunk lid/liftgate control drive unit |
13L |
| M51/3b1 |
Trunk lid/liftgate control Hall sensor |
12L |
| M51/3b2 |
Trunk lid/liftgate control position sensor |
14L |
| M51/3m1 |
Trunk lid/liftgate control electric motor |
10L |

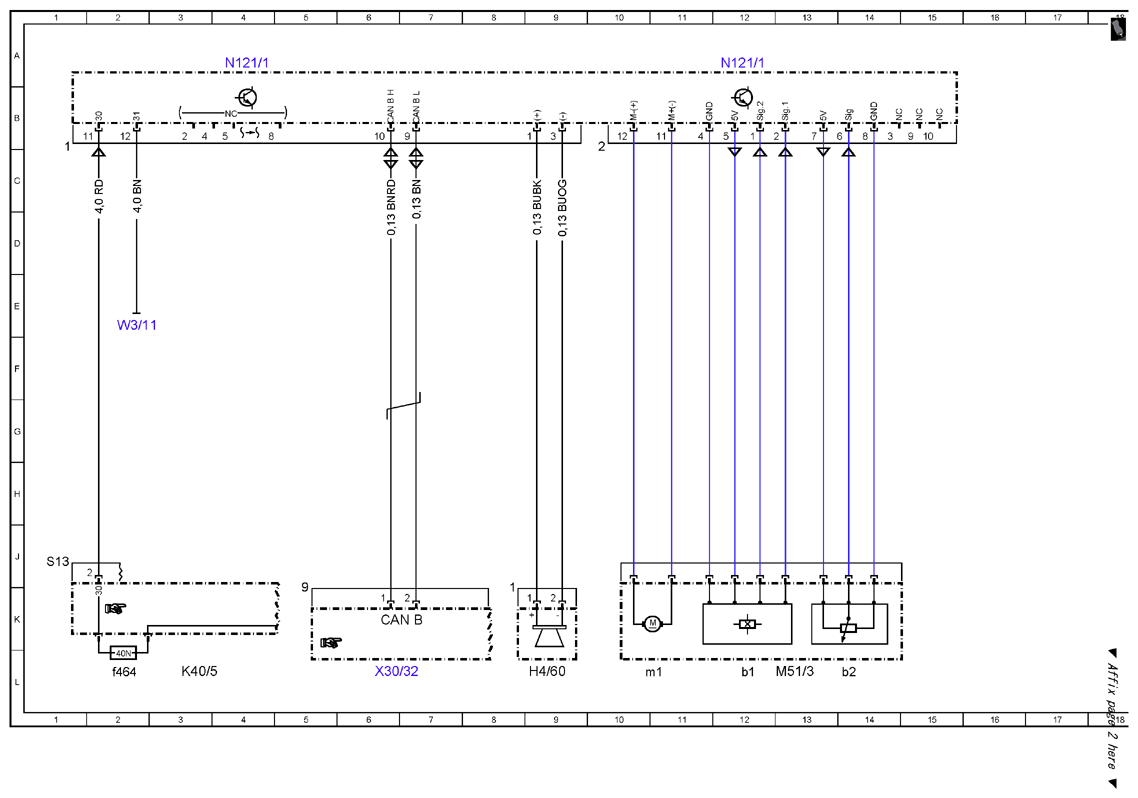

| N121/1 |
Tailgate control control unit |
4A |
| N121/1 |
Tailgate control control unit |
12A |
| W3/11 |
Left rear wheel well ground point |
2E |
| X30/32 |
Left interior CAN (CAN B) potential distributor electrical connector |
6L |
