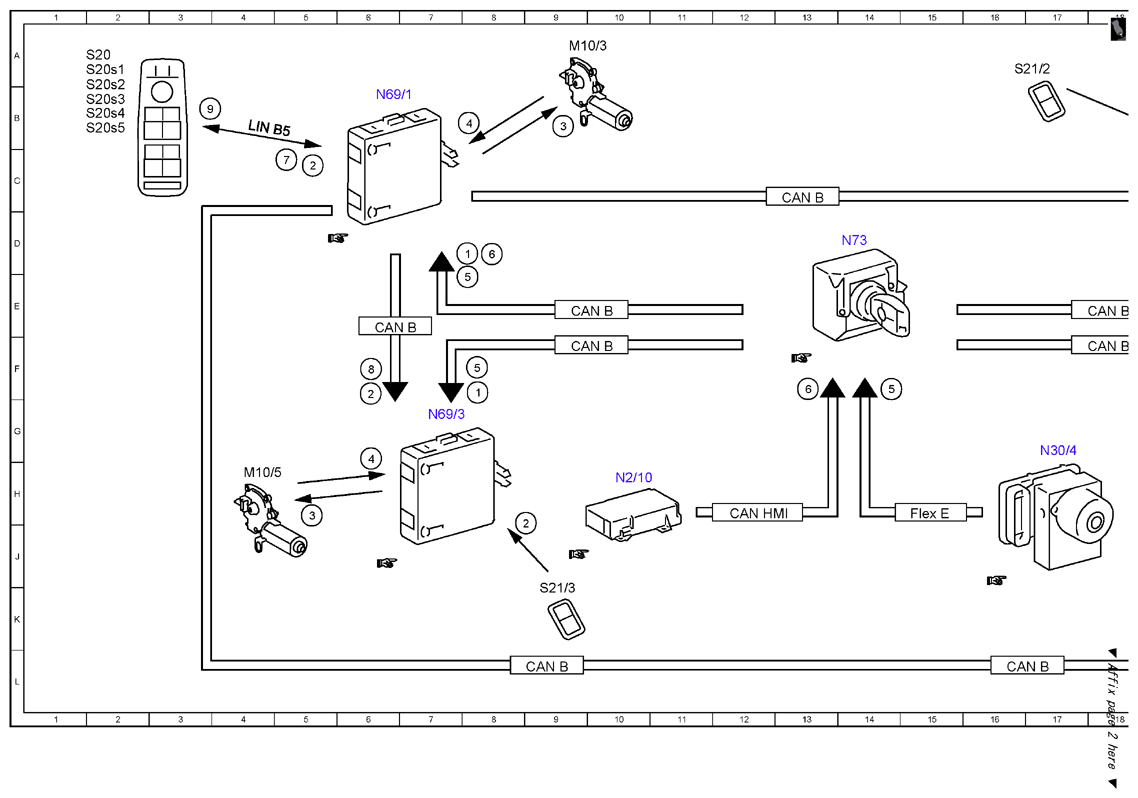

| 1 |
Circuit 15, status |
8D |
| 1 |
Circuit 15, status |
20D |
| 1 |
Circuit 15, status |
20F |
| 1 |
Circuit 15, status |
8F |
| 2 |
Power window switch, status |
19B |
| 2 |
Power window switch, status |
5C |
| 2 |
Power window switch, status |
6F |
| 2 |
Power window switch, status |
8J |
| 2 |
Power window switch, status |
20K |
| 2 |
Power window switch, status |
21G |
| 2 |
Power window switch, status |
19C |
| 3 |
Power window motor, actuation |
23D |
| 3 |
Power window motor, actuation |
9B |
| 3 |
Power window motor, actuation |
22K |
| 3 |
Power window motor, actuation |
5H |
| 4 |
Power window motor Hall sensor, signal |
21C |
| 4 |
Power window motor Hall sensor, signal |
22H |
| 4 |
Power window motor Hall sensor, signal |
6H |
| 4 |
Power window motor Hall sensor, signal |
8B |
| 5 |
Adjust PRE-SAFE®, request |
8D |
| 5 |
Adjust PRE-SAFE®, request |
8F |
| 5 |
Adjust PRE-SAFE®, request |
15F |
| 5 |
Adjust PRE-SAFE®, request |
21E |
| 5 |
Adjust PRE-SAFE®, request |
21F |
| 6 |
Crash, signal |
13F |
| 6 |
Crash, signal |
8D |
| 6 |
Crash, signal |
20E |
| 7 |
Child safety lock switch, status |
5C |
| 8 |
Rear side window child safety lock, status |
6F |
| 8 |
Rear side window child safety lock, status |
20K |
| 9 |
Rear side window child safety lock readiness indicator, request |
3B |
| CAN B |
Interior CAN |
13C |
| CAN B |
Interior CAN |
9L |
| CAN B |
Interior CAN |
16L |
| CAN B |
Interior CAN |
18E |
| CAN B |
Interior CAN |
18F |
| CAN B |
Interior CAN |
9F |
| CAN B |
Interior CAN |
9E |
| CAN B |
Interior CAN |
6E |
| CAN HMI |
User interface CAN |
12H |
| Flex E |
Chassis FlexRay |
15H |
| LIN B5 |
Left front door LIN |
4B |
| M10/3 |
Left front power window motor |
9A |
| M10/4 |
Right front power window motor |
23D |
| M10/5 |
Left rear power window motor |
4H |
| M10/6 |
Right rear power window motor |
23J |
| N2/10 |
Supplemental restraint system control unit |
10H |
| N30/4 |
Electronic Stability Program control unit |
17G |
| N69/1 |
Left front door control unit |
6B |

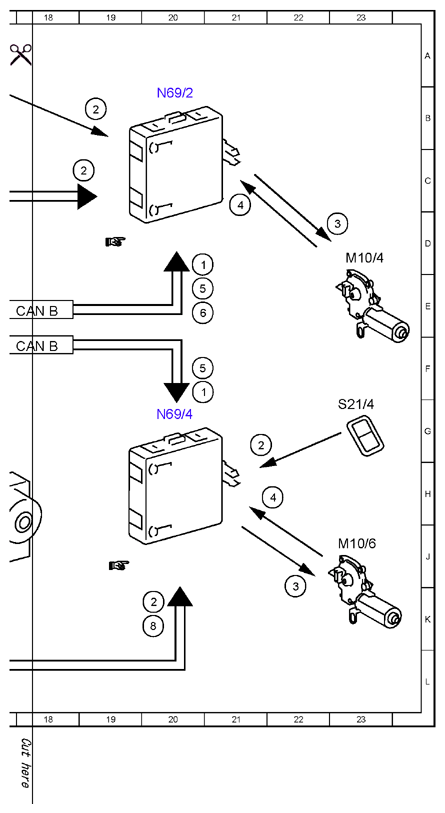

| N69/2 |
Right front door control unit |
20B |
| N69/3 |
Left rear door control unit |
7G |
| N69/4 |
Right rear door control unit |
20G |
| N73 |
Electronic ignition switch control unit |
14D |
| S20 |
Driver-side power window and outside mirror adjustment switch group |
1A |
| S20s1 |
Left front power window switch |
1A |
| S20s2 |
Right front power window switch |
1B |
| S20s3 |
Left rear power window switch |
1B |
| S20s4 |
Right rear power window switch |
1B |
| S20s5 |
Rear side window child safety lock switch |
1B |
| S21/2 |
Passenger-side power window switch |
16A |
| S21/3 |
Left rear power window switch |
9K |
| S21/4 |
Right rear power window switch |
23G |
