Remove/install switches for rear door power windows - AR72.29-P-0002LW

Model 205.0/1/2

Model 253

Shown on right rear door on MODEL 205.0

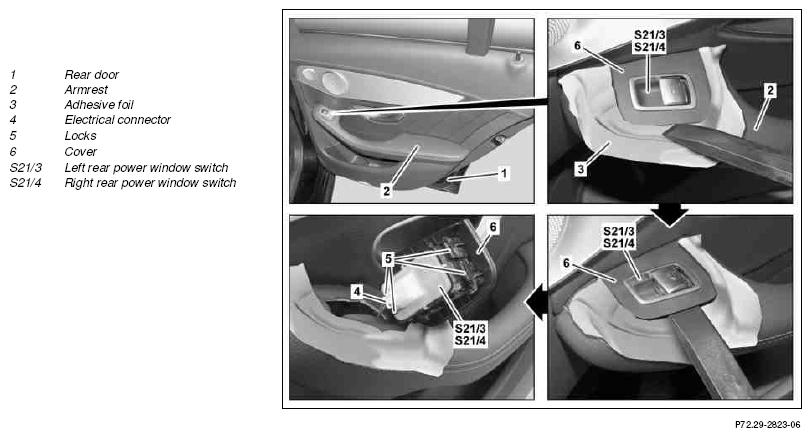

Fig 1: Identifying Power Windows Switches Remove/Install Components - Shown On Model 205.0

Courtesy of MERCEDES-BENZ USA

	Remove
1	Install adhesive foil (3) on armrest (2) on rear door (1) as shown	The adhesive foil (3) must be installed flush in relation to the cover (6). Otherwise armrest (2) can be damaged when removing the left rear power window switch (S21/3) or right rear power window switch (S21/4).
2	Move clip remover from rear at side at an angle of 45° in relation to the left rear power window switch (S21/3) or right rear power window switch (S21/4)	The angle of unclipping device should be approx. 45° to the surface of the armrest (2) when installing.
		Clip remover	Figure
3	Turn clip remover 45° so that its is at an angle of 90 in relation to the left rear power window switch (S21/3) or right rear power window switch (S21/4)	Clip remover	Figure
4	Remove left rear power window switch (S21/3) or right rear power window switch (S21/4) with cover (6) from armrest (2) by moving lever	Clip remover	Figure
5	Disconnect electrical connection (4)
6	Release locks (5) and remove left rear power window switch (S21/3) or right rear power window switch (S21/4) from cover (6)
	Install
7	Insert left rear power window switch (S21/3) or right rear power window switch (S21/4) into cover (6)
8	Connect electrical connector (4)
9	Insert left rear power window switch (S21/3) or right rear power window switch (S21/4) into cover (6) in armrest (2)
	Check
10	Carry out function check
