Remove/install sealing for crank window on front door - AR72.10-P-1905LW
Model 205.0/1/2
Model 253
Shown on model 205.0
| Risk of injury caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof. | No parts of the body or limbs should be within the operating area when the components are moving. | AS00.00-Z-0011-01A | |
| Remove | |||
| 1 | Remove door lining (2) from front door | AR72.10-P-1000LW | |
| 2 | Remove window frame paneling (3) | ||

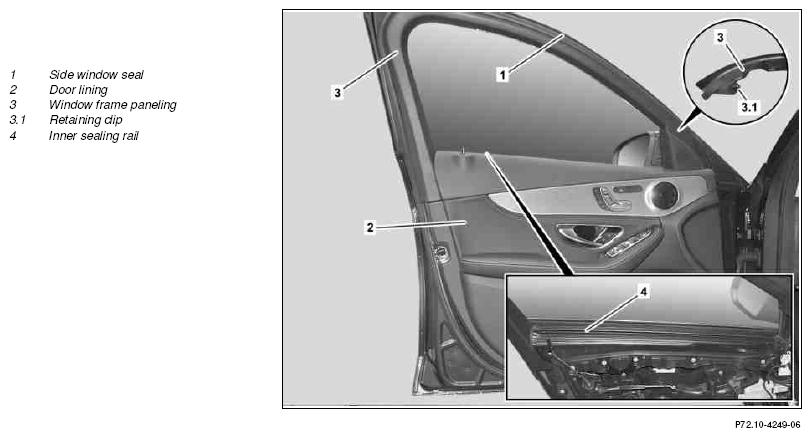

| 3 | Remove inner sealing rail (4) | Carefully lift inner sealing rail (4) out of bead on inner door panel. Otherwise the inner sealing rail (4) can deform and must be replaced. |
|
| Figure | |||
| 4 | Remove outside mirror | AR88.70-P-9000LW | |

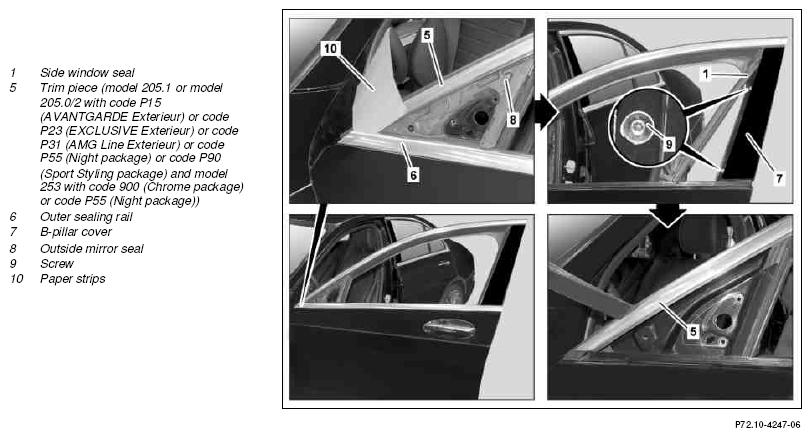

| 5 | Place paper strips (10) between outer sealing rail (6) and trim piece (5) | Model 205.0/2 with code P15 (AVANTGARDE exterior) Model 205.0/2 with code P23 (EXCLUSIVE exterior) Model 205.0/2 with code P31 (AMG Line exterior) Model 205.0/2 with code P55 (Night package) Model 205.0/2 with code P90 (Sports styling package) Model 205.1 Model 253 with code 900 (Chrome package) Model 253 with code P55 (Night package) Paper strips (10) are intended to protect the trim piece (5). Otherwise the trim piece (5) can be scratched. |
|
| 6 | Remove outer sealing rail (6) starting at installation location of outside mirror | Carefully lift outer sealing rail (6) out of inner door panel rabbet using base as aid. Otherwise the outer sealing rail (6) can deform or the paint be scratched. |
|
| Figure | |||
| 7 | Remove outside mirror seal (8) | ||
| 8 | Remove side window seal (1) in area of B-pillar cover (7) | ||
| 9 | Unscrew bolts (9) from B-pillar cover (7) | ||
| 10 | Remove B-pillar cover (7) | ||
| 11 | Remove trim piece (5) starting at installation location of outside mirror and remove toward rear | Model 205.0/2 with code P15 (AVANTGARDE exterior) Model 205.0/2 with code P23 (EXCLUSIVE exterior) Model 205.0/2 with code P31 (AMG Line exterior) Model 205.0/2 with code P55 (Night package) Model 205.0/2 with code P90 (Sports styling package) Model 205.1 Model 253 with code 900 (Chrome package) Model 253 with code P55 (Night package) Carefully lift out trim piece (5). Otherwise the trim piece (5) can bend and must be replaced. |
|
| Figure | |||
| 12 | Remove side window seal (1) in area of installation location of outside mirror | ||
| 13 | Remove side window seal (1) from window frame | ||
| Install | |||
| 14 | Connect electrical wiring harness on removed door lining (2) to left front door control unit and right front door control unit | ||
| 15 | Move side window up to center position | ||

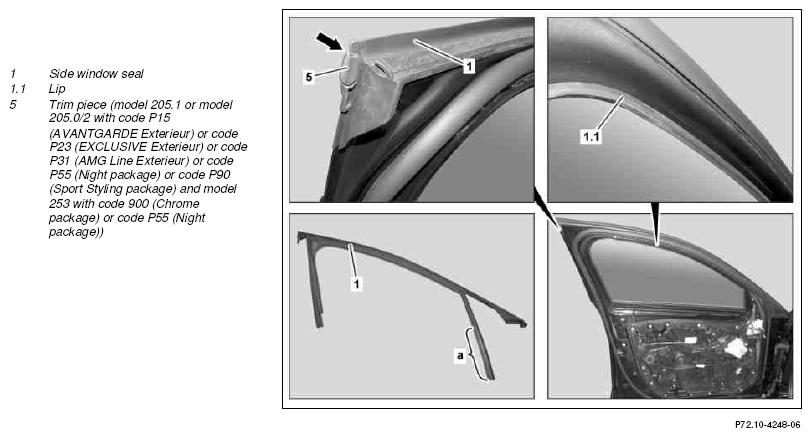

| 16 | Moisten side window seal (1) in assembly area "a" with soapy water | ||
| 17 | Insert front end of side window seal (1) into window guide rail and push downward | Roll down side window to pull down side window seal (1) thus facilitating assembly. |
|
| 18 | Connect electrical wiring harness on removed door lining (2) to left front door control unit and right front door control unit | ||
| 19 | Pull side window seal (1) upward until correct installation position is reached | ||
| 20 | Moisten side window seal (1) in assembly area of window frame with lubricant | Lubricant, rubber assembly 1 l | *BR00.45-Z-1010-06A |
| 21 | Install side window seal (1) in window frame except in area of B-pillar cover (7) | ||
| 22 | Install B-pillar cover (7) | ||
| 23 | Unscrew bolts (9) on B-pillar cover (7) | ||
| 24 | Remove side window seal (1) in area of B-pillar cover (7) | ||
| Check | |||
| 25 | Check installation position of side window seal (1) | If there are problems: ↓ Rectify the installation position. |
|
| 26 | Moisten profile stay on trim piece (5) and side window seal (1) with lubricant | Model 205.0/2 with code P15 (AVANTGARDE exterior) Model 205.0/2 with code P23 (EXCLUSIVE exterior) Model 205.0/2 with code P31 (AMG Line exterior) Model 205.0/2 with code P55 (Night package) Model 205.0/2 with code P90 (Sports styling package) Model 205.1 Model 253 with code 900 (Chrome package) Model 253 with code P55 (Night package) |
|
| Lubricant, rubber assembly 1 l | *BR00.45-Z-1010-06A | ||
| 27 | Install trim piece (5) starting at B-pillar cover (7) | Model 205.0/2 with code P15 (AVANTGARDE exterior) Model 205.0/2 with code P23 (EXCLUSIVE exterior) Model 205.0/2 with code P31 (AMG Line exterior) Model 205.0/2 with code P55 (Night package) Model 205.0/2 with code P90 (Sports styling package) Model 205.1 Model 253 with code 900 (Chrome package) Model 253 with code P55 (Night package) |
|
| 28 | Install outside mirror seal (8) | ||
| 29 | Fasten strip of paper (10) on trim piece (5) | Model 205.0/2 with code P15 (AVANTGARDE exterior) Model 205.0/2 with code P23 (EXCLUSIVE exterior) Model 205.0/2 with code P31 (AMG Line exterior) Model 205.0/2 with code P55 (Night package) Model 205.0/2 with code P90 (Sports styling package) Model 205.1 Model 253 with code 900 (Chrome package) Model 253 with code P55 (Night package) Paper strips (10) are intended to protect the trim piece (5). Otherwise the trim piece (5) can be scratched when installing the outer sealing rail (6). |
|
| 30 | Moisten rubber seal on outer sealing rail (6) with lubricant | Lubricant, rubber assembly 1 l | *BR00.45-Z-1010-06A |
| 31 | Install outer sealing rail (6) | ||
| 32 | Install outside mirror | AR88.70-P-9000LW | |
| 33 | Moisten rubber seal on inner sealing rail (4) with lubricant | Lubricant, rubber assembly 1 l | *BR00.45-Z-1010-06A |
| 34 | Install inner sealing rail (4) | ||
| 35 | Install window frame paneling (3) | ||
| 36 | Install door liner (2) on front door | AR72.10-P-1000LW |
REPAIR MATERIALS
| Number | Designation | Order number |
|---|---|---|
| BR00.45-Z-1010-06A | Lubricant, rubber assembly 1 l | A 000 989 03 67 |
