Remove/install front power window switches - AR72.29-P-0100LWA

MODEL 190 Passenger side

MODEL 205.0/1/2 Passenger side

Shown on model 205.0/1/2

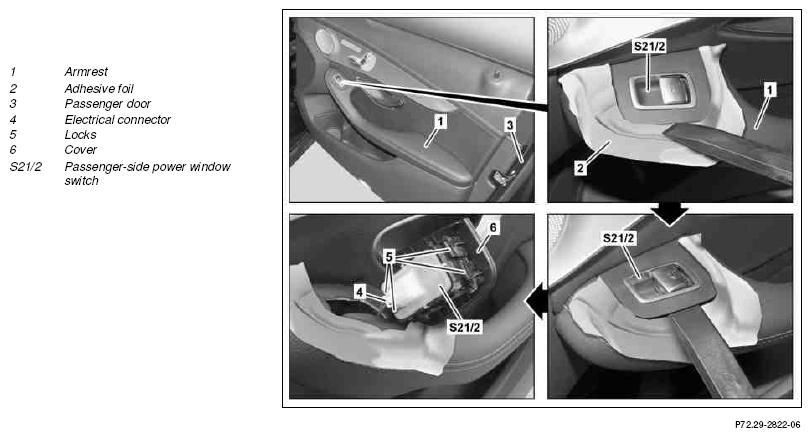

Fig 1: Identifying Front Power Window Switches Remove/Install Components - Shown On Model 205.0

Courtesy of MERCEDES-BENZ USA

	Remove
1	Attach adhesive foil (2) on armrest (1) of passenger door (3)	Attach adhesive (2) on armrest (1) in contact area of tool flush to cover (6) of passenger side power window switch (S212). Otherwise the armrest (1) can be damaged when removing the passenger side power window switch (S21/2).
2	Install unclipping device rear side at an angle of 45° to passenger side power window switch (S21/2)	The angle of the unclipping device should be approx. 45° to the surface of the armrest (1) when installing.
2		Clip remover	Figure
3	Turn unclipping device 45° so that it is located at an angle of 90° to passenger side power window switch (S21/2)	Clip remover	Figure
4	Remove passenger side power window switch (S21/2) with cover (6) from armrest (1) by moving lever	Clip remover	Figure
5	Disconnect electrical connection (4)
6	Unlock catches (5) and remove passenger side power window switch (S21/2) from cover (6)
	Install
7	Insert passenger side power window switch (S21/2) into cover (6)
8	Connect electrical connector (4)
9	Insert passenger side power window switch (S21/2) with cover (6) into armrest (1)
10	Carry out function check

Fig 2: Identifying Clip Remover (452 589 01 63 00)

Courtesy of MERCEDES-BENZ USA
