Remove/install front power window switches - AR72.29-P-0100LW

MODEL 205.0/1/2 Driver side

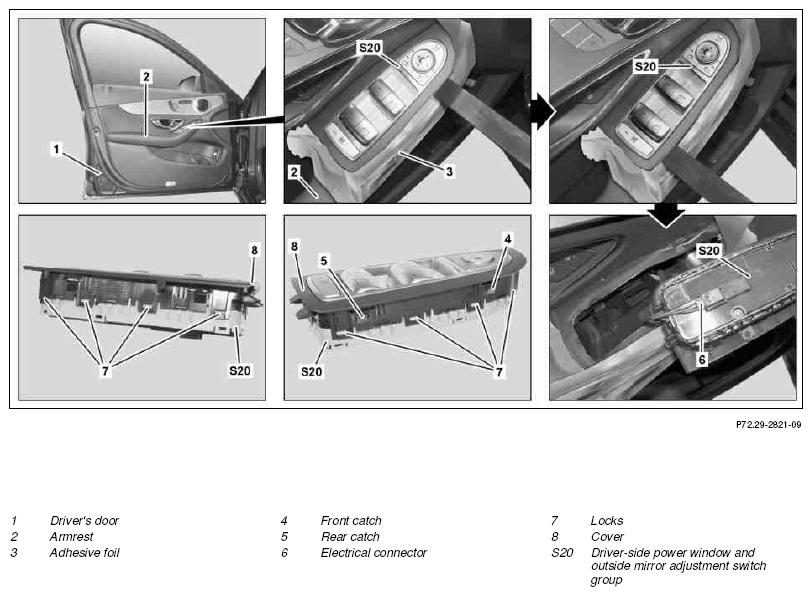

Fig 1: Identifying Front Power Window Switches Remove/Install Components

Courtesy of MERCEDES-BENZ USA

	Remove
1	Install adhesive foil (3) on armrest (2) of driver door (1)	Attach adhesive (3) on armrest (2) in contact area of tool flush to cover (8) of driver side outside mirror adjustment power window switch group (S20). Otherwise the armrest (2) can be damaged when removing the driver side outside mirror adjustment power window switch group (S20).
2	Install unclipping device in area of front catch (4) at an angle of 90° to driver side outside mirror adjustment power window switch group (S20)	The angle of the unclipping device should be approx. 45° to the surface of the armrest (2) when installing.
		Clip remover	Figure
3	Uncilp armrest (2) by pressing front catch (4)	Clip remover	Figure
4	Install unclipping device in area of rear catch (5) at an angle of 90° to driver side outside mirror adjustment power window switch group (S20)	The angle of the unclipping device should be approx. 45° to the surface of the armrest (2) when installing.
		Clip remover	Figure
5	Uncilp armrest (2) by pressing rear catch (5)	Clip remover	Figure
6	Remove driver side outside mirror adjustment power window switch group (S20) from armrest (2) together with cover (8)
7	Disconnect electrical connector (6)
8	Unlock catches (7) and remove driver side outside mirror adjustment power window switch group (S20) from cover (8)
	Install
9	Insert driver side outside mirror adjustment power window switch group (S20) into cover (8)
10	Connect electrical connector (6)
11	Install driver side outside mirror adjustment power window switch group (S20) in rear area of armrest (2) together with cover (8)
12	Insert driver side outside mirror adjustment power window switch group (S20) into armrest (2) together with cover (8)
13	Carry out function check

Fig 2: Identifying Clip Remover (452 589 01 63 00)

Courtesy of MERCEDES-BENZ USA
