Remove/install front door - AR72.10-P-0500LW

Model 205.0/1/2

Model 253

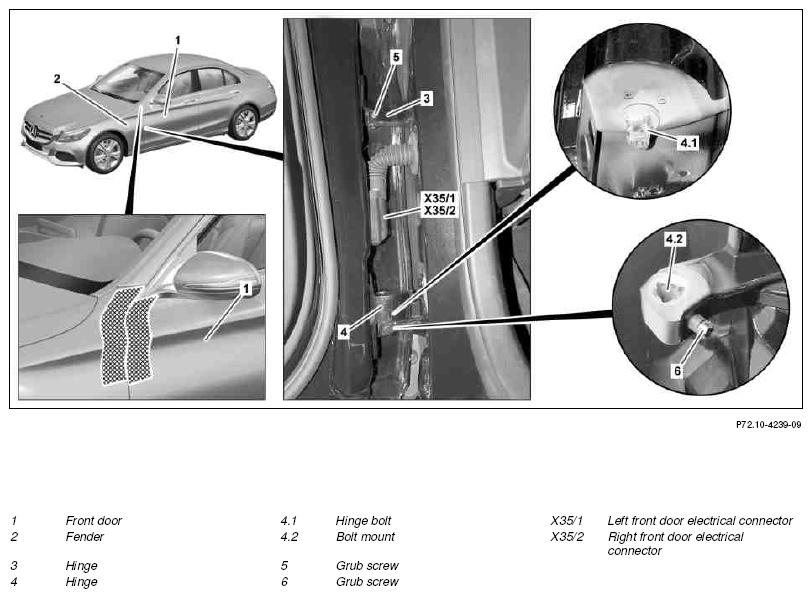

Fig 1: Identifying Front Door Remove/Install Components - Shown On Model 205.0

Courtesy of MERCEDES-BENZ USA

Shown on left front door, model 205.0

	Risk of injury  caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof.	No parts of the body or limbs should be within the operating area when the components are moving.	AS00.00-Z-0011-01A
	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Remove/install
1	Completely lower side window in front door (1)
2	Switch off ignition and remove transmitter key
3	Disconnect battery ground line		AR54.10-P-0003LW
4	Mask fender (2) and front door (1) in crosshatched area with adhesive tape
5	Disconnect left front electrical connector (X35/1) or right front door electrical connector (X35/2)
6	Remove cap from grub screw (5)
7	Unscrew grub screws (5, 6) from hinges (3, 4) 3 turns	Repair paint damage in area of grub screws (5, 6).
		Grub screw for hinge separation	*BA72.10-P-1003-01W
8	Remove front door (1) from lower hinge leaves and lay down on suitable base	Carefully remove front door (1) or insert. If the front door(1) comes into contact with the vehicle, the paint can be damaged. Helper required. The exterior contour of the hinge bolt (4.1) should be flush with the inside contour of the bolt mount (4.2).
9	Install in the reverse order
	Check
10	Check gap dimensions on front door (1)	If there are problems: ↓ Adjust gaps on front door (1).
		Driver side	AR72.10-P-0551LW
		Passenger side	AR72.10-P-0552LW
11	Calibrate power window
