Remove/install fixed window in rear door - AR72.12-P-1970LWS

Model 205.0/1/2

Model 253

Shown on MODEL 205.2

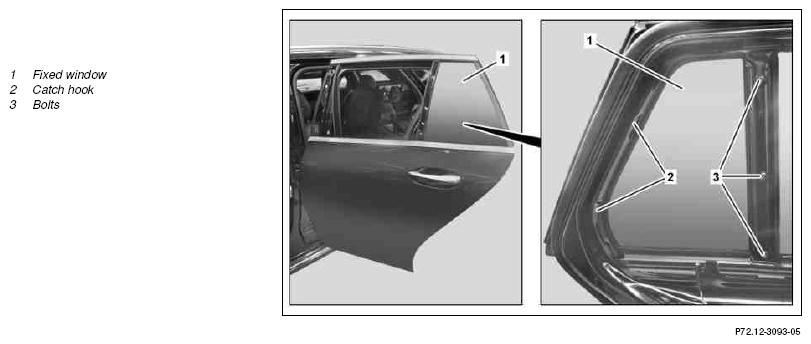

Fig 1: Identifying Fixed Window Remove/Install Components - Shown On Model 205.2

Courtesy of MERCEDES-BENZ USA

	Risk of injury  caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof.	No parts of the body or limbs should be within the operating area when the components are moving.	AS00.00-Z-0011-01A
	Remove/install
1	Remove seal for side window at rear door		AR72.12-P-1911LW
2	Remove bolts (3)
3	Unclip stationary window (1) from catch hooks (2) and remove	Carefully remove stationary window (1). Otherwise parts of the rear door or stationary window (1) can be damaged. Ensure that the stationary window (1) is seated correctly.
4	Install in the reverse order
