Remove/install crank window in front door - AR72.10-P-1900LW

Model 205.0/1/2

Model 253

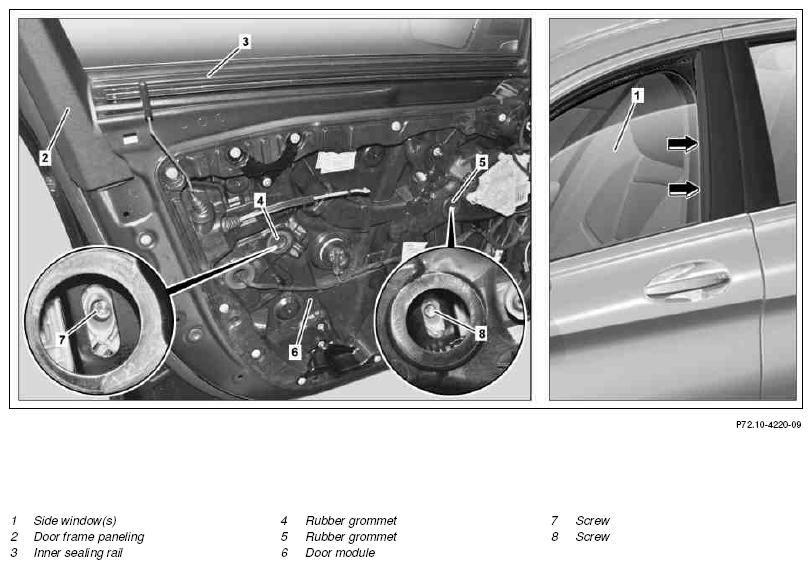

Fig 1: Identifying Front Door Crank Window Remove/Install Components - Shown On Model 205.0

Courtesy of MERCEDES-BENZ USA

Shown on MODEL 205.0

	Risk of injury  caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof.	No parts of the body or limbs should be within the operating area when the components are moving.	AS00.00-Z-0011-01A
	Remove
1	Remove door lining from left and right front door		AR72.10-P-1000LW
		Do not expose electrical lines and electrical connectors high tractive force. This can lead to contact problems and discontinuity. Do not disconnect electrical connectors from left front door control unit and right front door control unit.
2	Remove inner sealing rail (3)	Carefully lift inner sealing rail (3) out of bead on inner door panel. Otherwise the inner sealing rail (3) can deform and must be replaced.
		Mounting wedge	Figure
3	Remove both rubber grommets (4, 5) from door module (6)
4	Move side window (1) to service position so that bolts (7, 8) are accessible through assembly openings in door module (6)
5	Disconnect electrical connectors from left front door control unit and right front door control unit in working area
6	Slacken bolts (7, 8)	Do not unscrew bolts (7, 8).
7	Tilt side window (1) toward rear upward and remove upward from window channel on front door
	Install
8	Install side window (1) from top in window channel under slight pressure in direction of window divider (arrows) until mount makes contact
9	Tighten bolts (7, 8)	Bolt, side window to window lifter	*BA67.30-P-1001-01B
10	Install both rubber grommets (4, 5) in door module (6)
11	Connect electrical wiring harness on removed door lining to left front door control unit and right front door control unit
12	Move side window (1) down
13	Moisten rubber seal on inner sealing rail (3) with lubricant	Lubricant, rubber assembly 1 l	*BR00.45-Z-1010-06A
14	Install inner sealing rail (3)	When installing, ensure that the outer end of the inner sealing rail (3) is located below the door frame paneling (2).
15	Install door lining to left and right front door		AR72.10-P-1000LW

SIDE WINDOW(S)

Number	Designation		Model 205	Model 253
BA67.30-P-1001-01B	Bolt, side window to window lifter	Nm	9	6

Fig 2: Identifying Mounting Wedge (110 589 03 59 00)

Courtesy of MERCEDES-BENZ USA

REPAIR MATERIALS

Number	Designation	Order number
BR00.45-Z-1010-06A	Lubricant, rubber assembly 1 l	A 000 989 03 67
