Removing and installing cup holder - AR91.12-P-1621LF
Model 205.0/1 with code 287 (Folding rear seat backrests)
Model 205.0/1 with code 700 (Technology Local Content China) except code 287 (Folding rear seat backrests)
Model 205.2
Model 217
Model 222.0/1/9 except code 223 (Electrically adjustable rear bench seat) except code 224 (Rear individual seat design)
Model 253.9

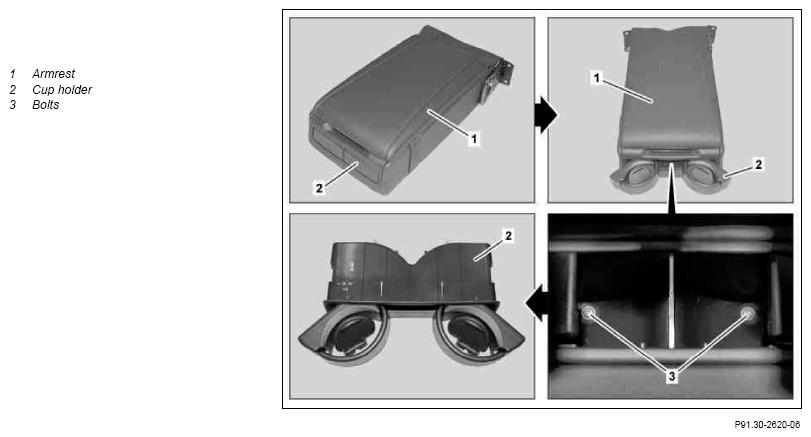

Shown on model 222.0
| Remove/install | |||
| 1 | Fold down armrest (1) | ||
| 2 | Open cup holder (2) by pushing | ||
| 3 | Remove bolts (3) | ||
| 4 | Remove cup holder (2) forwards out of the armrest (1) | ||
| 5 | Install in the reverse order |
