Remove/install locking mechanism for folding rear seat backrest - AR91.12-P-1730LW

MODEL 205.0/1 with CODE 287 (Folding rear seat backrests)

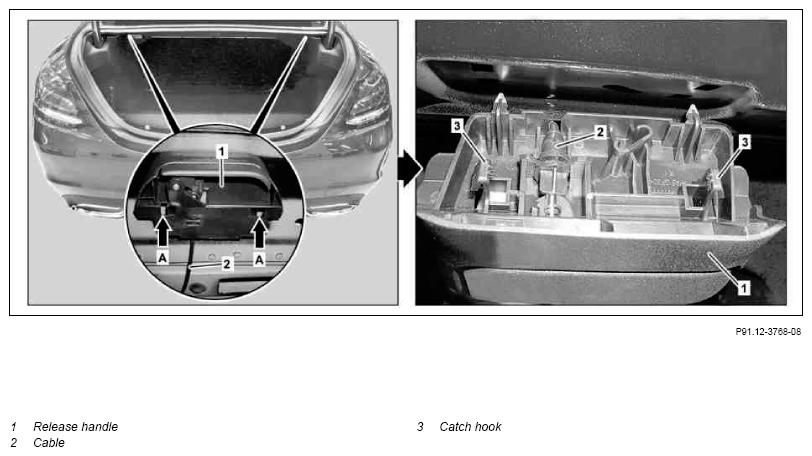

Fig 1: Identifying Folding Rear Seat Backrest Locking Mechanism (1 Of 2)

Courtesy of MERCEDES-BENZ USA

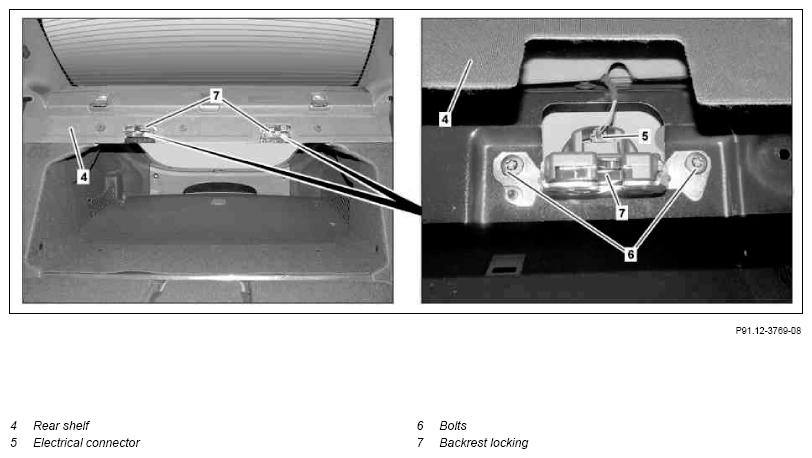

Fig 2: Identifying Folding Rear Seat Backrest Locking Mechanism (2 Of 2)

Courtesy of MERCEDES-BENZ USA

	Risk of injury  caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof.	No parts of the body or limbs should be within the operating area when the components are moving.	AS00.00-Z-0011-01A
	Notes on sensor system for trunk lid opening/closing		AH80.61-P-0001-01A
	Remove/install
1	Release left or right backrest and fold forward
2	Press catch hooks (3) inwards through large openings (arrows A) in release handle (1) and remove left or right release handle (1)
3	Unhook cable (2) at release handle (1)
4	Detach cable (2) from body	Ensure that cable (2) is routed correctly.
5	Release rear shelf (4) in area of left or right backrest locking (7) and lift		AR68.30-P-4581LW
6	Disconnect electrical connector (5)
7	Remove screw/bolts (6)	Bolt, backrest lock to cross member top	*BA91.12-P-1002-03M
8	Remove backrest locking (7) with cable (2)
9	Install in the reverse order

REAR SEATS

Number	Designation		MODEL 205.0	MODEL 205.1
BA91.12-P-1002-03M	Bolt, backrest lock to cross member top	Nm	20	20
