Remove/install armrest at rear seat backrest - AR91.12-P-1745LW

Model 205.0/1 with code 287 (Folding rear seat backrests)

Model 205.2

Model 253

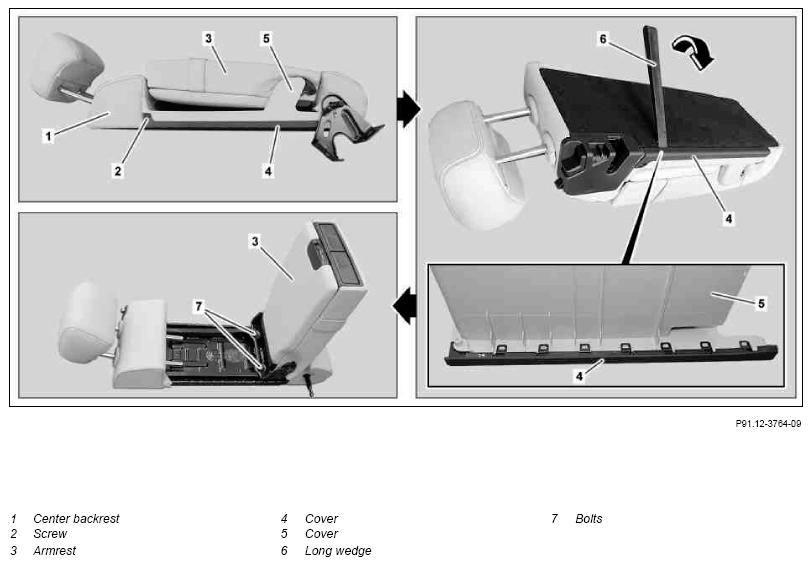

Fig 1: Identifying Rear Seat Backrest Armrest Remove/Install Components - Shown On Removed Center Backrest

Courtesy of MERCEDES-BENZ USA

Shown on removed center backrest (1) with CODE 287 (Folding rear seat backrests)

	Remove/install
1	Fold over center backrest (1)	Removal of the center backrest (1) is not necessary.
2	Remove left and right screw/bolt (2)
3	Unclip left and right cover (4), as shown, with long wedge (6) and remove	Carefully unclip covers (4). Otherwise the covers (4) may be damaged. Ensure that covers (4) are engaged correctly.
3		Long wedge	Fig 2
4	Fold back center backrest (1)
5	Fold down armrest (3)
6	Remove covering (5)
7	Remove screws/bolts (7) and remove armrest (3)	Bolt, armrest to seat backrest frame	*BA91.12-P-1006-03M
8	Install in the reverse order

REAR SEATS

Number	Designation		Model 205.0	Model 205.1
BA91.12-P-1006-03M	Bolt, armrest to seat backrest frame	Nm	8	8

REAR SEATS

Number	Designation		Model 205.2	Model 253
BA91.12-P-1006-03M	Bolt, armrest to seat backrest frame	Nm	8	8

Fig 2: Identifying Long Wedge (115 589 03 59 00)

Courtesy of MERCEDES-BENZ USA
