Seat belt height adjustment mechanism (front seat) removal and installation - AR91.40-P-1100LW

Model 205.0/1/2

Model 253

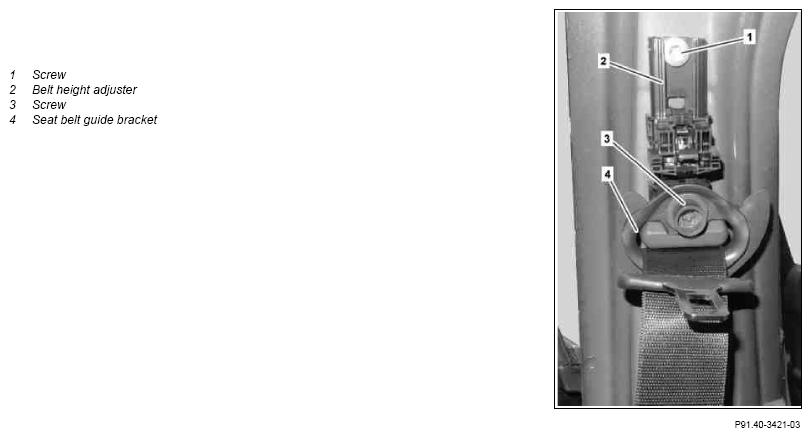

Fig 1: Identifying Seat Belt Height Adjustment Mechanism (Front Seat) Remove/Install Components

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Detach upper paneling on the left or right B-pillar and place to one side		AR68.30-P-4700LW
1		Do not remove belt end fitting at the front seat.	AR68.30-P-4700LW
2	Remove screw/bolt (3) and remove belt guide bracket (4)	Screw/bolt, front belt guide bracket	*BA91.40-P-1002-01U
3	Remove bolt (1)	Screw/bolt, front belt height adjuster to B-pillar	*BA91.40-P-1008-01U
4	Unhook belt height adjuster (2) and remove upwards	Ensure the belt height adjuster (2) is seated correctly in the B-pillar.
5	Install in the reverse order

SEAT BELTS/EMERGENCY TENSIONING RETRACTORS

Number	Designation		Model 205.0	Model 205.1
BA91.40-P-1002-01U	Screw/bolt, front belt guide bracket	Nm	35	35

SEAT BELTS/EMERGENCY TENSIONING RETRACTORS

Number	Designation		Model 205.2	Model 253
BA91.40-P-1002-01U	Screw/bolt, front belt guide bracket	Nm	35	35

SEAT BELTS/EMERGENCY TENSIONING RETRACTORS

Number	Designation		Model 205.0	Model 205.1
BA91.40-P-1008-01U	Screw/bolt, front belt height adjuster to B-pillar	Nm	35	35

SEAT BELTS/EMERGENCY TENSIONING RETRACTORS

Number	Designation		Model 205.2	Model 253
BA91.40-P-1008-01U	Screw/bolt, front belt height adjuster to B-pillar	Nm	35	35
