Remove/install side deployment pressure sensor - AR91.60-P-0760LW
MODEL 205.0/1/2

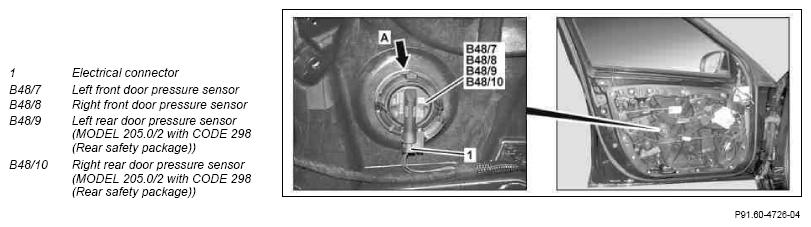

Shown on left front door
Fig 1: Identifying Side Deployment Pressure Sensor Remove/Install Components - Shown On Left Front Door
| Risk of injury caused by performing testing or repair work on airbag or emergency tensioning retractor units. | Store airbag units with deployment side facing up; do not expose to temperatures greater than 100°C. When working on these units, disconnect the power supply. | AS91.00-Z-0001-01A | |
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Notes on performing repair, body work and welding on vehicles with airbags and RTE units | AH91.00-P-0002-01M | ||
| Assessment of airbag and belt tensioner units in accident vehicles | AH91.00-P-0006-01B | ||
| Remove/install | |||
| 1 | Disconnect ground line at the on-board electrical system battery | AR54.10-P-0003LW | |
| 2.1 | Remove door lining from left or right front door | When removing the left front door pressure sensor (B48/7) and the right front door pressure sensor (B48/8). | |
| AR72.10-P-1000LW | |||
| 2.2 | Remove door lining on left or right rear door | MODEL 205.0/2 with CODE 298 (Rear sidebag with belt force limiter) When removing left rear door pressure sensor (B48/9) or right rear door pressure sensor (B48/10). |
|
| AR72.12-P-1010LW | |||
| 3 | Disconnect electrical connector (1) | ||
| 4 | Lift shackle (arrow A), turn respective pressure sensor (B48/7, B48/8, B48/9 or B48/10) 90° counterclockwise and remove | ||
| 5 | Install in the reverse order |
