Remove/install seat occupancy recognition sensor - AR91.60-P-0720LWA

Model 205 except code U10 (Automatic seat occupancy recognition and child seat recognition)

Model 253 except code U10 (Automatic seat occupancy recognition and child seat recognition)

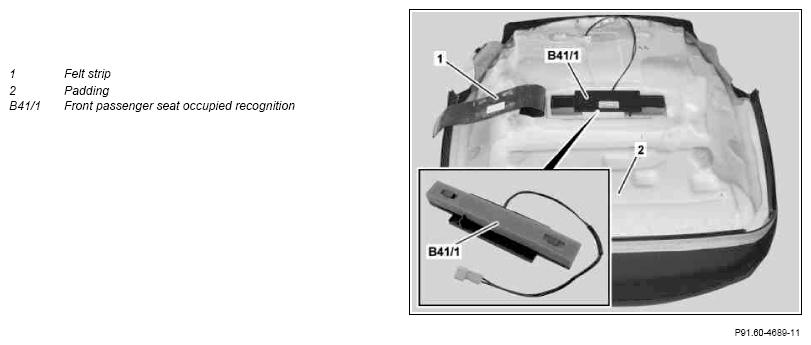

Fig 1: Identifying Seat Occupancy Recognition Sensor Remove/Install Components

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Remove seat cushion from front passenger seat	Model 205.0/1/2, 253 except code U10 (Automatic seat occupancy recognition and child seat recognition)	AR91.10-P-3310LW
2	Loosen felt strip (1) and fold to one side
3	Remove front passenger seat occupancy recognition (B41/1) from padding (2)	Ensure that front passenger seat occupancy recognition (B41/1) is in correct installation position.
4	Install in the reverse order
	Check
5	Perform function check with diagnostic system
			AD00.00-P-2000-04B
		Menu sequence: SRS control unit → Actual value → Front passenger seat belt reminder warning If the front passenger seat is occupied by a person with a weight of > 48 kg, the actual value must change from UNOCCUPIED to OCCUPIED.
