Remove/install seat occupancy recognition sensor - AR91.60-P-0720LW

Model 205 with code U10 (Automatic seat occupancy recognition and child seat recognition)

Model 253 with code U10 (Automatic seat occupancy recognition and child seat recognition)

Shown on seat cushion with CODE 242 (Electrically adjustable front passenger seat with memory function)

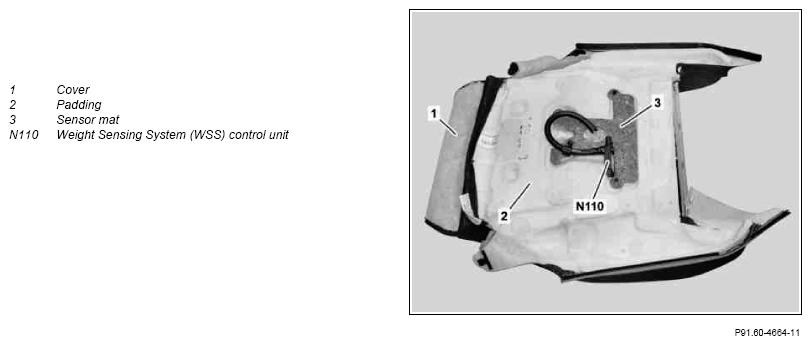

Fig 1: Identifying Seat Occupancy Recognition Sensor Remove/Install Components - Shown On Seat Cushion

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Remove seat cushion from front passenger seat	Model 205.0/1/2/3, 253 with code U10 (Automatic seat occupancy recognition and child seat recognition) The seat cushion with weight sensing system (WSS) comprising cover (1), padding (2), weight sensing system (WSS) control unit (N110) and sensor mat (3) is delivered precalibrated in the event of repair and may only be completely replaced.	AR91.10-P-3310LW
2	Install in the reverse order
