Remove/install seat belt (front seat) - AR91.40-P-1010LW

Model 205.0/1/2

Model 253

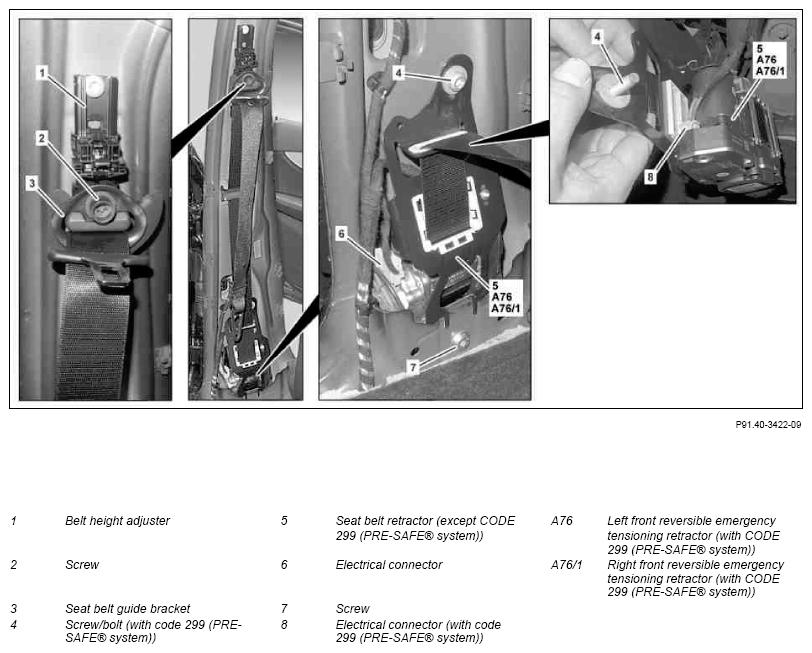

Fig 1: Installing Seat Belt (Front Seat) - Shown On Model 205.0

Courtesy of MERCEDES-BENZ USA

Shown on MODEL 205.0 with CODE 299 (PRE-SAFE® system)

	Risk of injury  during testing and repair operations related to pyrotechnical components	Do not expose pyrotechnical components to temperatures above 100°C or 212°C. Disconnect current supply when working on such components.	AS91.00-Z-0008-01A
	Risk of injury.  Injury may result when the tension in the spring in the automatic belt retractor is released.	Never disassemble automatic belt retractors.	AS91.00-Z-0002-01A
	Notes on performing repair, body work and welding on vehicles with airbags and RTE units		AH91.00-P-0002-01M
	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Information, assessment and legal requirements when working with, handling and storing pyrotechnical components		AH91.00-Z-0000-10A
	Remove/install
1	Remove right or left B-pillar trim		AR68.30-P-4700LW
2	Disconnect ground line to battery		AR54.10-P-0003LW
3	Remove screw/bolt (2) and remove belt guide bracket (3) from belt height adjuster (1)	Screw/bolt, front belt guide bracket	*BA91.40-P-1002-01U
4	Unscrew bolt (4)	Model 205.0/1/2 with code 299 (PRE-SAFE® system) Model 253 with code 299 (PRE-SAFE® system)
		Screw/bolt, front belt retractor	*BA91.40-P-1001-01U
5	Unscrew screw/bolt (7)	Screw/bolt, front belt retractor	*BA91.40-P-1001-01U
6	Remove left front reversible emergency tensioning retractor (A76) or right front reversible emergency tensioning retractor (A76/1) or belt retractor (5) from B-pillar
7	Disconnect electrical connector (8)	Model 205.0/1/2 with code 299 (PRE-SAFE® system) Model 253 with code 299 (PRE-SAFE® system)
8	Disconnect electrical connector (6) and remove left front reversible emergency tensioning retractor (A76) or right front reversible emergency tensioning retractor (A76/1) or belt retractor (5)
9	Properly dispose of removed left front reversible emergency tensioning retractor (A76) or right front reversible emergency tensioning retractor (A76/1) or belt retractor (5)	When replacing left front reversible emergency tensioning retractor (A76) or right front reversible emergency tensioning retractor (A76/1) or seat belt retractor (5).
10	Install in the reverse order
11	Connect diagnostic system and perform initial startup of PRE-SAFE® system	Model 205.0/1/2 with code 299 (PRE-SAFE® system) Model 253 with code 299 (PRE-SAFE® system) When replacing left front reversible emergency tensioning retractor (A76) or right front reversible emergency tensioning retractor (A76/1).
		Model 205.0/1/2 with code 299 (PRE-SAFE® system)	AD00.00-P-2000-04B
12	Check seat belt slack reduction	Model 205.0/1/2 with code 299 (PRE-SAFE® system) Model 253 with code 299 (PRE-SAFE® system) Function requirements: Function activated in instrument cluster.
