Remove/install rear seat belts - AR91.40-P-0681LW
MODEL 205.0/1
Shown on MODEL 205.0 without CODE 287 (Folding rear seat backrests)
| Risk of injury caused by performing testing or repair work on airbag or emergency tensioning retractor units. | Store airbag units with deployment side facing up; do not expose to temperatures greater than 100°C. When working on these units, disconnect the power supply. | AS91.00-Z-0001-01A | |
| Risk of injury. Injury may result when the tension in the spring in the automatic belt retractor is released. | Never disassemble automatic belt retractors. | AS91.00-Z-0002-01A | |
| Notes on performing repair, body work and welding on vehicles with airbags and RTE units | AH91.00-P-0002-01M | ||
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Assessment of airbag and belt tensioner units in accident vehicles | AH91.00-P-0006-01B | ||
| Legal requirements on handling and storing airbags and emergency tensioning retractor units | AH91.00-P-0004-01A | ||
| Remove/install | |||

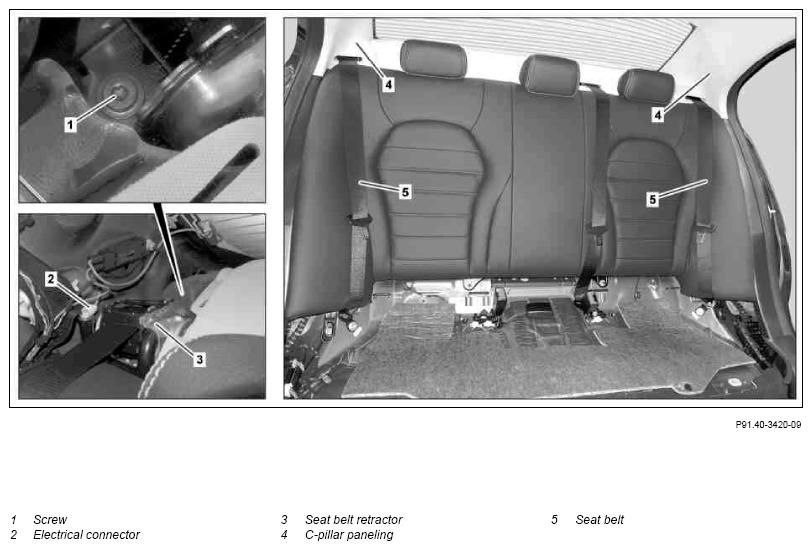

| 1 | Remove left or right C-pillar trim (4) | AR68.30-P-4490LW | |
| 2 | Disconnect battery ground line | AR54.10-P-0003LW | |
| 3 | Disconnect electrical connection (2) | ||
| 4 | Remove bolt (1) | *BA91.40-P-1006-01U | |
| 5 | Remove belt retractor (3) with seat belt (5) | ||
| 6 | Dispose of removed belt retractor (3) properly | When replacing belt retractor (3). | |
| 7 | Install in the reverse order | ||
| 8 | Connect diagnostic system and check supplemental restraint system (SRS) When replacing belt retractor (3). | ||
| AD00.00-P-2000-04B |
SEAT BELTS/EMERGENCY TENSIONING RETRACTORS
| Number | Designation | MODEL 205.0 | MODEL 205.1 | |
|---|---|---|---|---|
| BA91.40-P-1006-01U | Screw/bolt, rear belt retractor | Nm | 35 | 35 |
