Remove/install frontal acceleration sensor - AR91.60-P-0750LW
MODEL 205
| Risk of injury caused by performing testing or repair work on airbag or emergency tensioning retractor units. | Store airbag units with deployment side facing up; do not expose to temperatures greater than 100°C. When working on these units, disconnect the power supply. | AS91.00-Z-0001-01A | |
| Assessment of airbag and belt tensioner units in accident vehicles | AH91.00-P-0006-01B | ||
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Notes on performing repair, body work and welding on vehicles with airbags and RTE units | AH91.00-P-0002-01M | ||
| Remove/install | |||
| 1 | Disconnect ground line at the on-board electrical system battery | AR54.10-P-0003LW | |

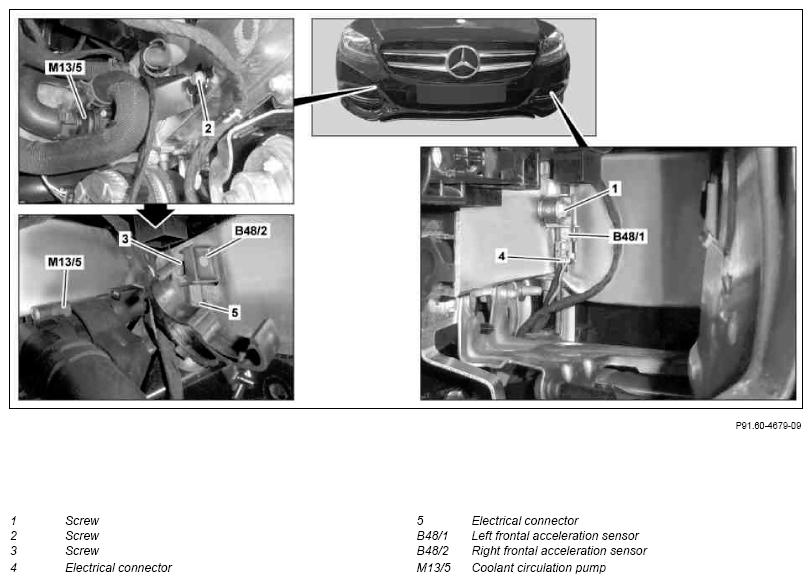

| 2 | Loosen fender liner at left or right until the left frontal acceleration sensor (B48/1) or the right frontal acceleration sensor (B48/2) is accessible | AR88.10-P-1300LW | |
| 3 | Remove screw/bolt (2) and place coolant circulation pump (M13/5) to one side with lines connected | Only when removing right frontal acceleration sensor (B48/2). | |
| 4 | Disconnect electrical connector (4) or electrical connector (5) | ||
| 5 | Remove screw/bolt (1) or screw/bolt (3) and remove left frontal acceleration sensor (B48/1) or right frontal acceleration sensor (B48/2) | MODEL 205.0/1/2 |
*BA91.60-P-1009-01O |
| 6 | Install in the reverse order |
AIRBAG
| Number | Designation | MODEL 205.0/1/2 | |
|---|---|---|---|
| BA91.60-P-1009-01O | Screw/bolt, frontal acceleration sensor to bumper crossmember | Nm | 9 |
