Remove/install front seat sidebag unit - AR91.60-P-0695LF

Model 205 except code 555 (AMG Performance seats)

Model 217

Model 222

Model 253 except code 555 (AMG Performance seats)

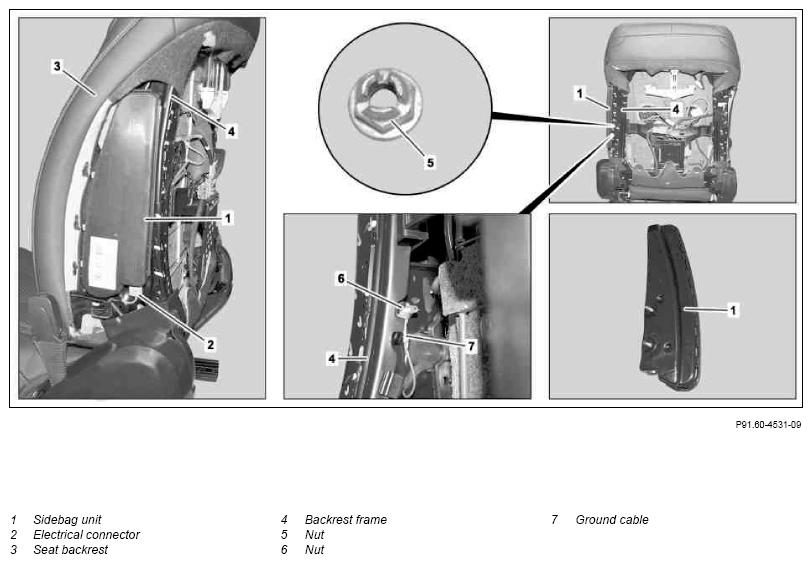

Fig 1: Identifying Front Seat Sidebag Unit - Shown On Model 222

Courtesy of MERCEDES-BENZ USA

Shown on MODEL 222 with removed front seat

	Risk of injury  during testing and repair operations related to pyrotechnical components	Do not expose pyrotechnical components to temperatures above 100°C or 212°C. Disconnect current supply when working on such components.	AS91.00-Z-0008-01A
	Notes on performing repair, body work and welding on vehicles with airbags and RTE units		AH91.00-P-0002-01M
	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Information, assessment and legal requirements when working with, handling and storing pyrotechnical components		AH91.00-Z-0000-10A
	Remove/install
1	Remove seat-back lining at left or right backrest (3)	Model 205.0/1/2 except code 555 (AMG Performance seats) Model 253 except code 555 (AMG Performance seats)	AR91.10-P-1910LW
		Model 217 Model 222	AR91.10-P-1910LF
		Model 205.3 except code 555 (AMG Performance seats)	AR91.10-P-1910CLW
2	Disconnect battery ground line	Model 205 except code 555 (AMG Performance seats) Model 253 except code 555 (AMG Performance seats)	AR54.10-P-0003LW
		Model 217 Model 222	AR54.10-P-0003LF
3	Release and disconnect electrical connector (2) at sidebag unit (1)	Make sure that electrical connector (2) engages properly in sidebag unit (1).
4	Unscrew nut (5)	Model 217, 222Nut, sidebag to backrest frame	*BA91.60-P-1010-01I
		Model 205.0/1/2/3 except code 555 (AMG Performance seats) Model 253 except code 555 (AMG Performance seats) Nut, sidebag unit to backrest frame	*BA91.60-P-1006-01O
5	Unscrew nut (6) and remove ground line (7)	Model 205, 253 except code 555 (AMG Performance seats) Ground line (7) is secured to nut (6). Observe installation position of ground line (7).
		Model 217, 222 Nut, sidebag to backrest frame	*BA91.60-P-1010-01I
		Model 205.0/1/2/3 except code 555 (AMG Performance seats) Model 253 except code 555 (AMG Performance seats) Nut, sidebag unit to backrest frame	*BA91.60-P-1006-01O
6	Remove sidebag unit (1) from backrest frame (4)
7	Install in the reverse order
	Check
8	Connect diagnostic system and check supplemental restraint system (SRS) When replacing sidebag unit (1).
			AD00.00-P-2000-04B
