Remove, replace and install rear center seat belt - AR91.40-P-0683LW
MODEL 205.0/1 without CODE 287 (Folding rear seat backrests)
| Risk of injury. Injury may result when the tension in the spring in the automatic belt retractor is released. | Never disassemble automatic belt retractors. | AS91.00-Z-0002-01A | |
| Remove/install | |||
| 1 | Remove rear shelf | AR68.30-P-4581LW | |

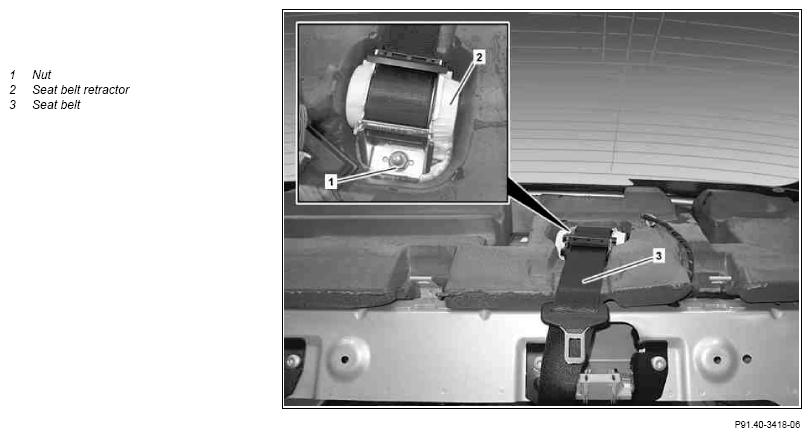

| 2 | Unscrew nut (1) | *BA91.40-P-1010-01U | |
| 3 | Remove belt retractor (2) with seat belt (3) | ||
| 4 | Install in the reverse order |
SEAT BELTS/EMERGENCY TENSIONING RETRACTORS
| Number | Designation | MODEL 205.0 | MODEL 205.1 | |
|---|---|---|---|---|
| BA91.40-P-1010-01U | Nut, center seat belt on rear shelf | Nm | 35 | 35 |
