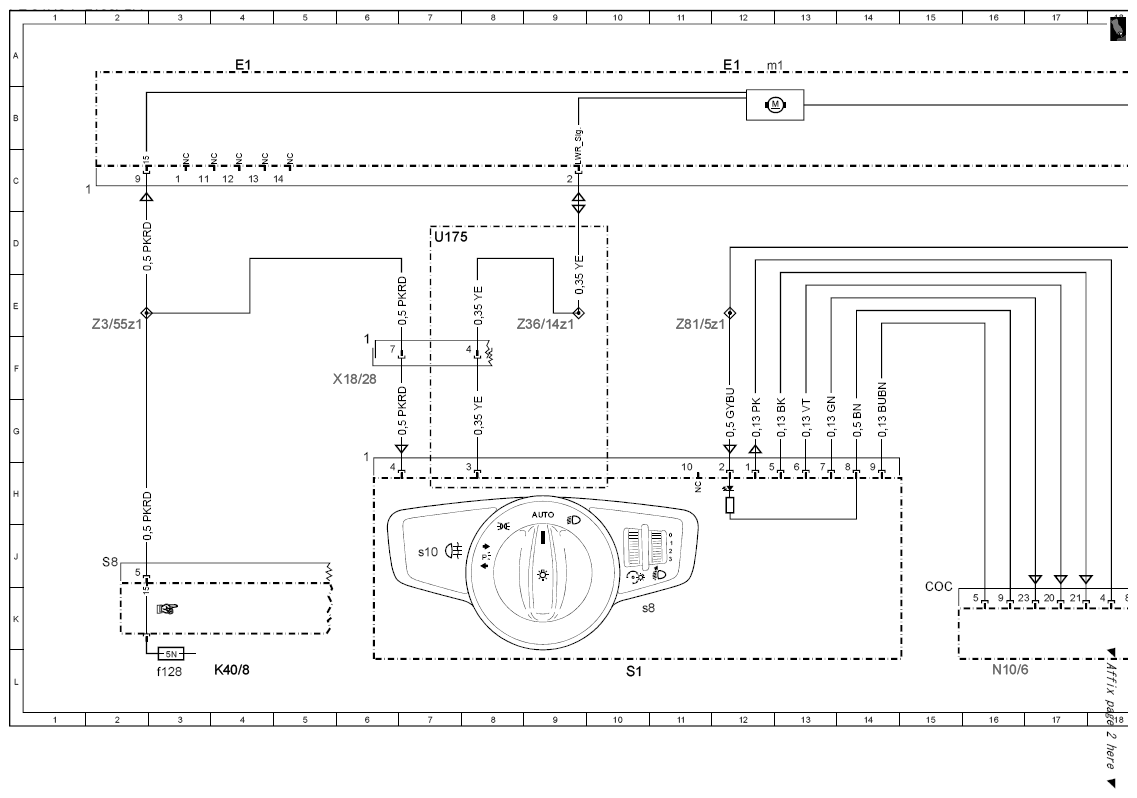

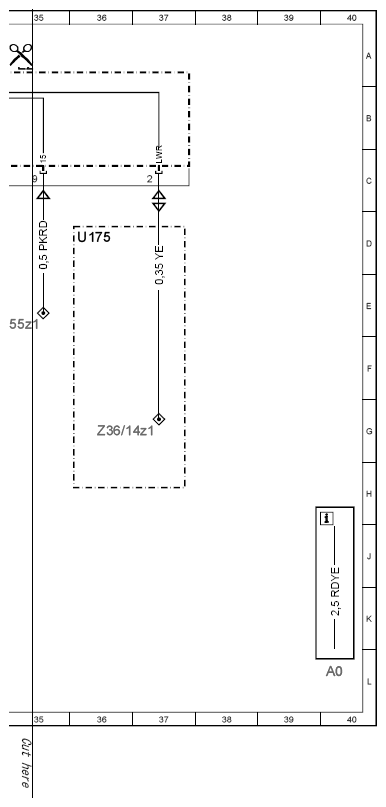

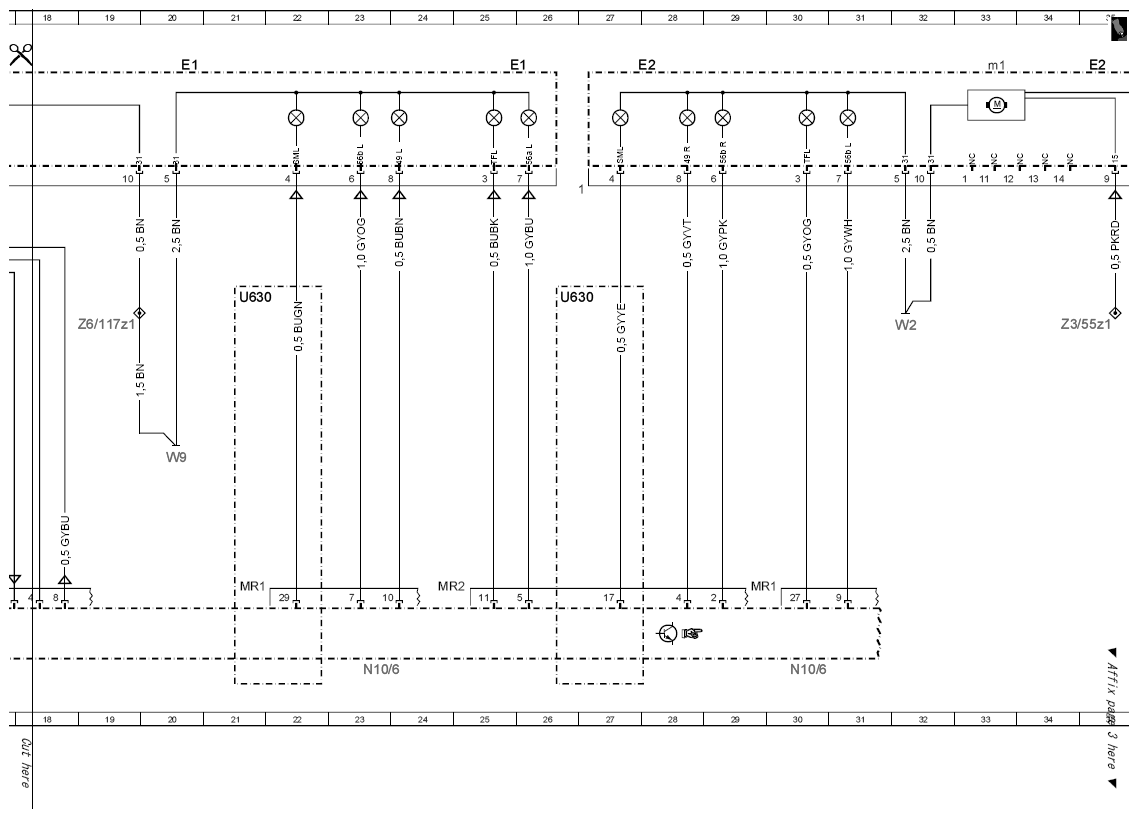

| A0 |
Use of wiring diagrams |
40L |
| E1 |
Left front lamp unit |
4A |
| E1 |
Left front lamp unit |
12A |
| E1 |
Left front lamp unit |
20A |
| E1 |
Left front lamp unit |
25A |
| E1m1 |
Left headlamp range adjustment actuator motor |
12A |
| E2 |
Right front lamp unit |
28A |
| E2 |
Right front lamp unit |
35A |
| E2m1 |
Right headlamp range adjustment actuator motor |
33A |
| K40/8 |
Engine fuse and relay module |
4L |
| K40/8f128 |
Fuse 128 |
3L |
| N10/6 |
Front SAM control unit |
16L |
| N10/6 |
Front SAM control unit |
23L |
| N10/6 |
Front SAM control unit |
30L |
| S1 |
Exterior lights switch |
10L |
| S1s10 |
Rear fog light button |
7J |
| S1s8 |
Headlamp range controller |
10K |
| U175 |
Not valid for USA and Canada |
7D |
| U175 |
Not valid for USA and Canada |
36D |
| U630 |
Valid for USA and Canada |
21E |
| U630 |
Valid for USA and Canada |
26E |
| W2 |
Right front ground point (at lamp unit) |
32E |
| W9 |
Left front ground point (at lamp unit) |
20G |
| X18/28 |
Left cockpit/engine compartment electrical connector |
6F |
| Z3/55z1 |
Tml. 15 connector sleeve |
2E |
| Z3/55z1 |
Tml. 15 connector sleeve |
35E |
| Z36/14z1 |
Headlamp range adjustment signal connector sleeve |
9E |
| Z36/14z1 |
Headlamp range adjustment signal connector sleeve |
36G |
| Z6/117z1 |
Left front ground point connector sleeve (on lamp unit) |
19E |
| Z81/5z1 |
Circuit 58d connector sleeve |
11E |
