Remove/install trim strip on dashboard - AR68.10-P-1180LW

Model 205

Model 253

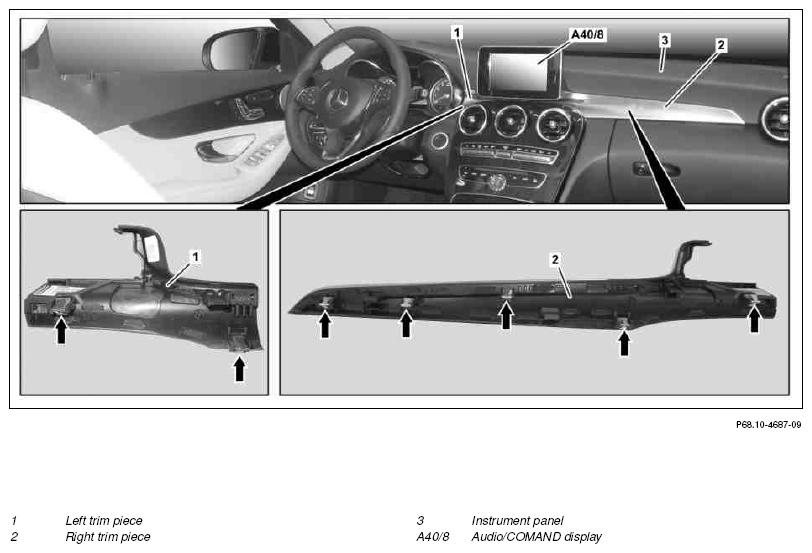

Fig 1: Identifying Dashboard Trim Strip Remove/Install Components

Courtesy of MERCEDES-BENZ USA

	Remove/install
1.1	Remove cover on center console	Model 205 with transmission 722, 724, 725 Model 253 with transmission 724, 725
			AR68.20-P-2350LW
1.2	Remove cover for upper control panel control unit	Model 205 with transmission 716 Model 253 with transmission 716
			AR68.20-P-2313LW
2	Remove audio/COMAND display (A40/8)		AR82.60-P-7722LW
3	Unclip left trim piece (1) or right trim piece (2) on sheet metal clips (arrows) from instrument panel (3)	Clip remover	Figure
4	Install in the reverse order

Fig 2: Identifying Clip Remover (452 589 01 63 00)

Courtesy of MERCEDES-BENZ USA
