Remove/install cover on gearshift lever - AR68.20-P-2310LW

Model 205 with transmission 716

Model 253 with transmission 716

Shown on model 205

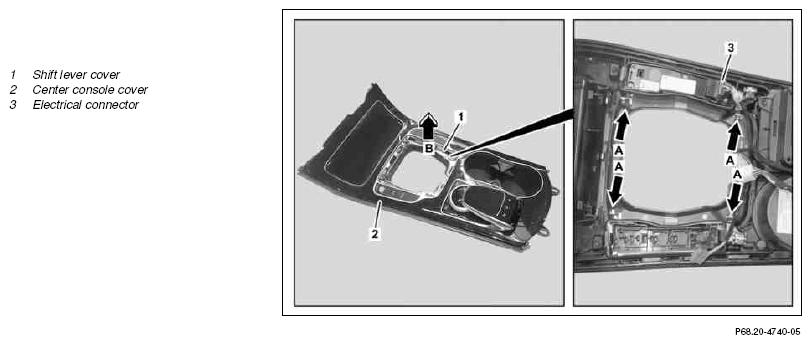

Fig 1: Identifying Gearshift Lever Cover Remove/Install Components

Courtesy of MERCEDES-BENZ USA

	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Remove/install
1	Remove center console cover (2)		AR68.20-P-2350LWA
2	Disconnect electrical connector (3)	The number can vary according to the equipment.
3	Unclip gearshift lever (1) from retaining tabs (arrows A)	Clip remover	Figure
4	Remove gearshift lever cover (1) upward from center console cover (2) (arrow B)
5	Install in the reverse order

Fig 2: Identifying Clip Remover (452 589 01 63 00)

Courtesy of MERCEDES-BENZ USA
